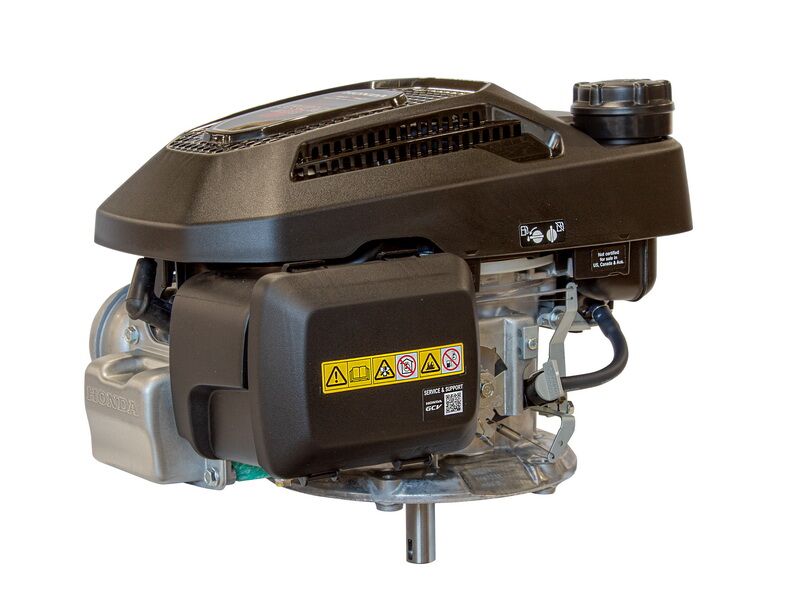

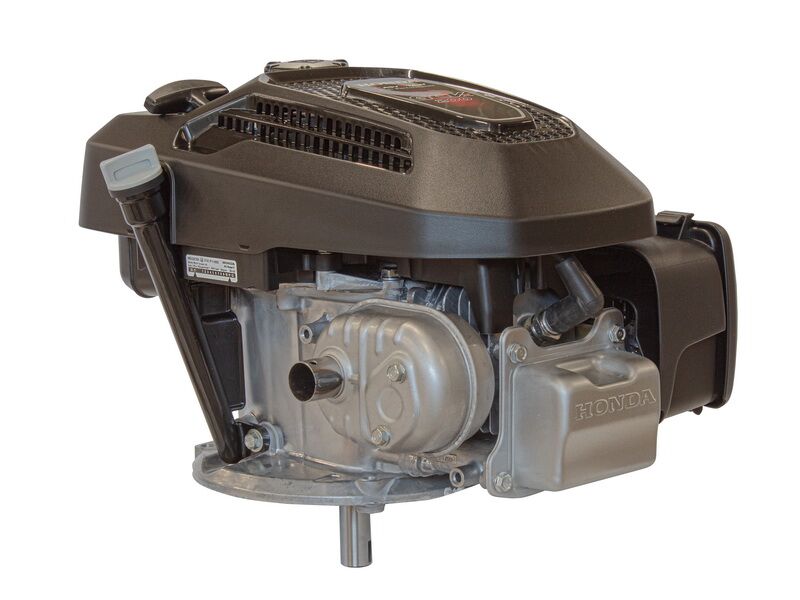

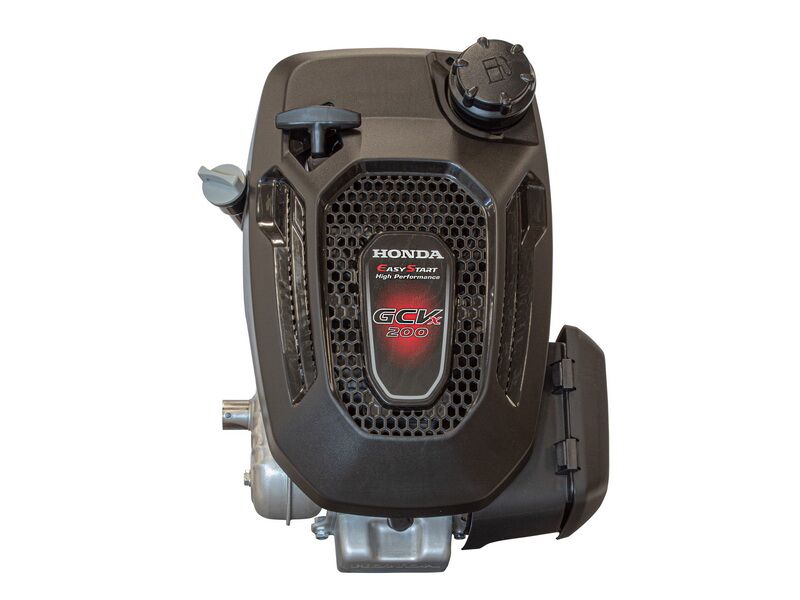

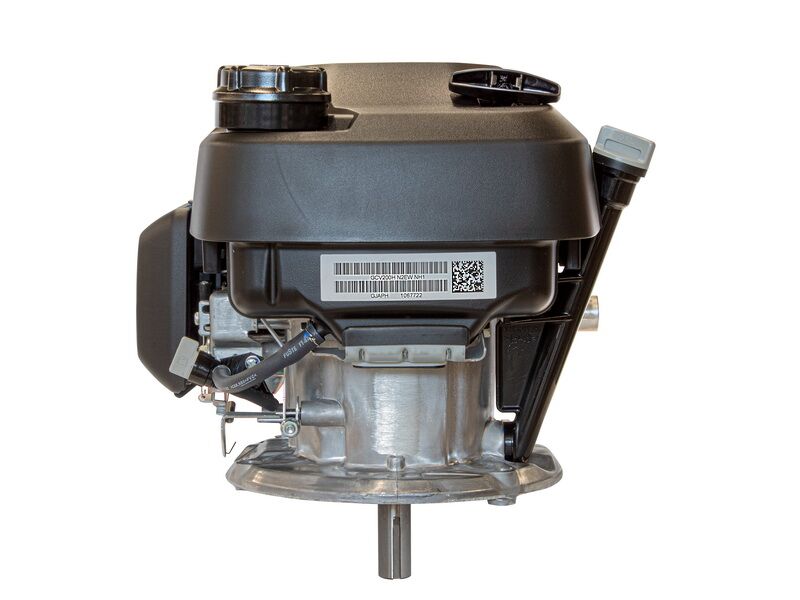

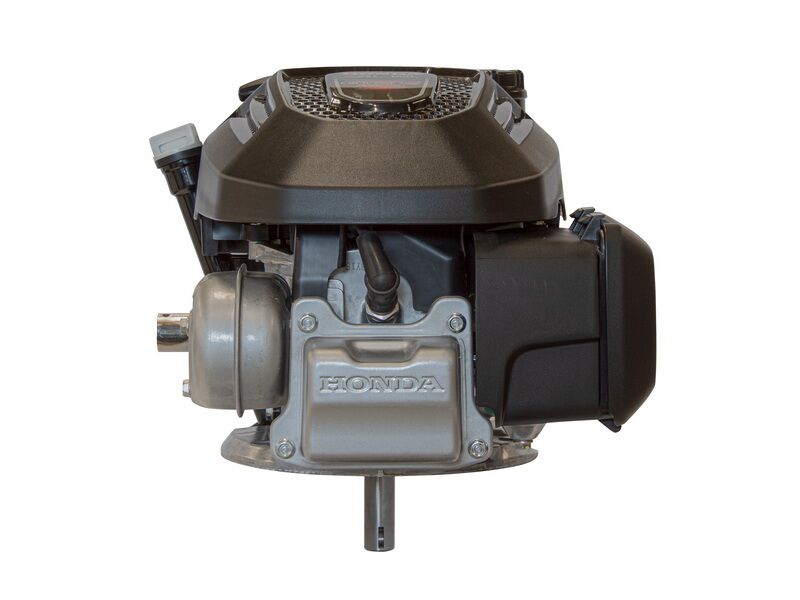

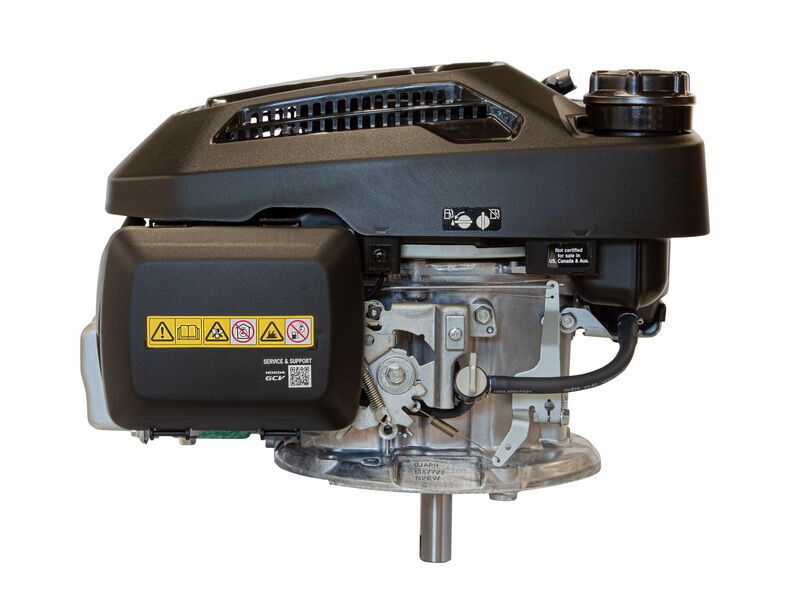

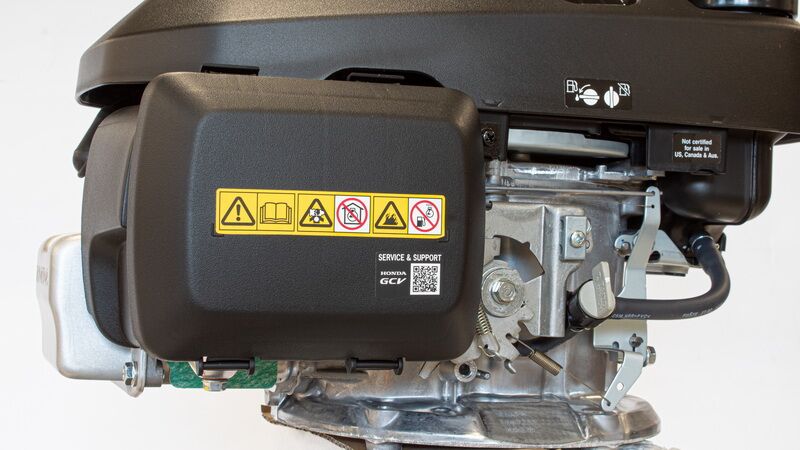

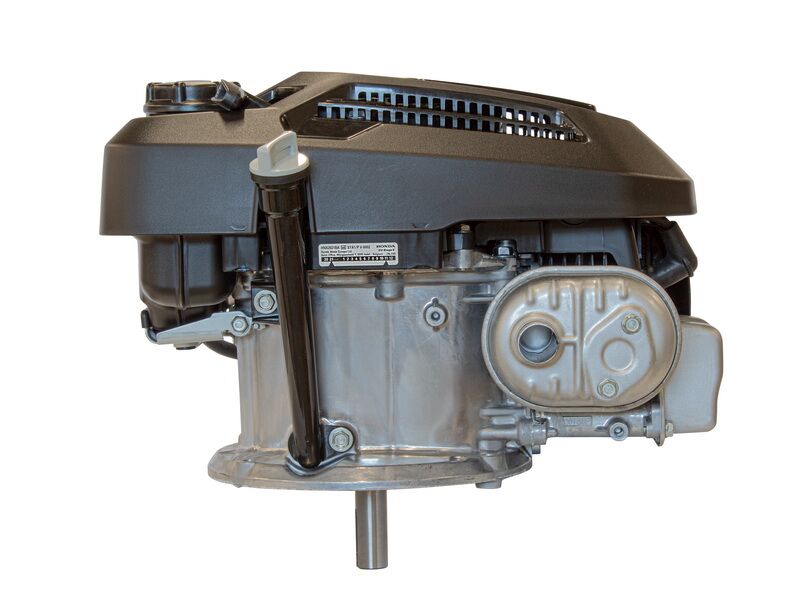

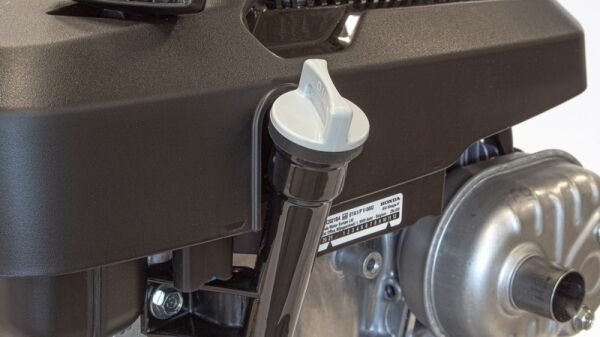

The GCV200 engine is suitable for a wide range of home-use applications using an engine with a vertically oriented crankshaft such as W3100VA.
| Weight | 10.1 kg |
|---|---|
| Dimensions | 41.5 × 33 × 35.9 cm |
| ENGINE TYPE | 4-stroke single cylinder |
| CYLINDER SLEEVE TYPE | Aluminium cylinder |
| BORE X STROKE | 66 x 59 mm |
| DISPLACEMENT | 201 cm³ |
| COMPRESSION RATIO | 8.0 : 1 |
| NET POWER | 4.2 kW ( 5.6 HP ) / 3600 rpm |
| CONT. RATED POWER | 2.8 kW ( 3.8 HP ) / 3000 rpm |
| MAX. NET TORQUE | 12.7 Nm ( 1.30 kgfm ) / 2500 rpm |
| IGNITION SYSTEM | Transistorised |
| STARTER | Recoil |
| AIRCLEANER TYPE | Paper |
| FUEL TANK CAPACITY | 0.91 Liter |
| FUEL CONS. AT CONT. RATED POWER | 1.4 L/h – 3000 rpm |
| ENGINE OIL CAPACITY | 0.40 Liter |
The motor can be used as a replacement motor with the same crankshaft dimensions as all standard devices, such as Petrol-powered water pumps, reinforced plate compactors, bar mowers, single axles, lawnmowers, scarifiers, sweepers, internal vibrators, snow blowers, lawn tractor, generator, and many other small devices.
