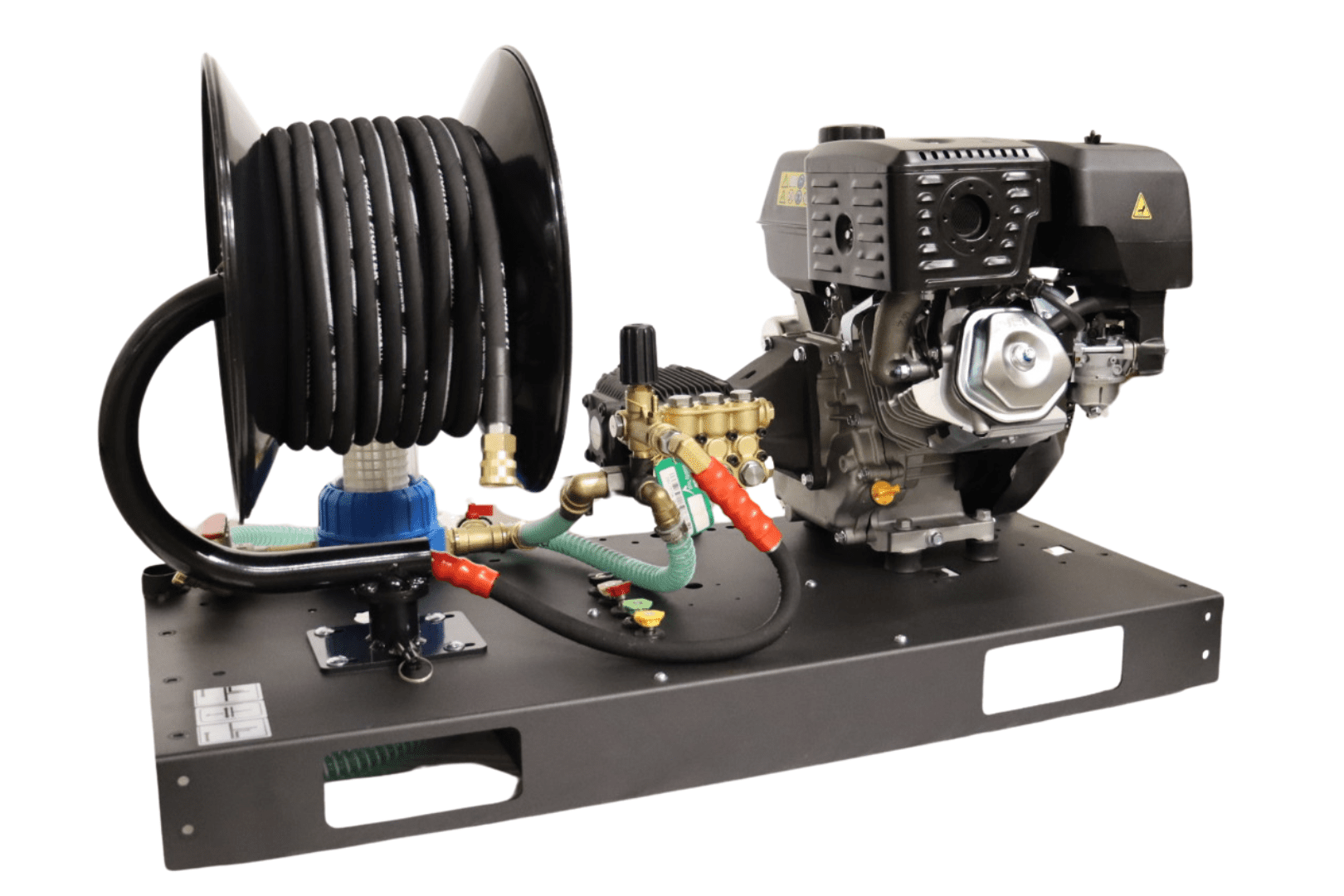

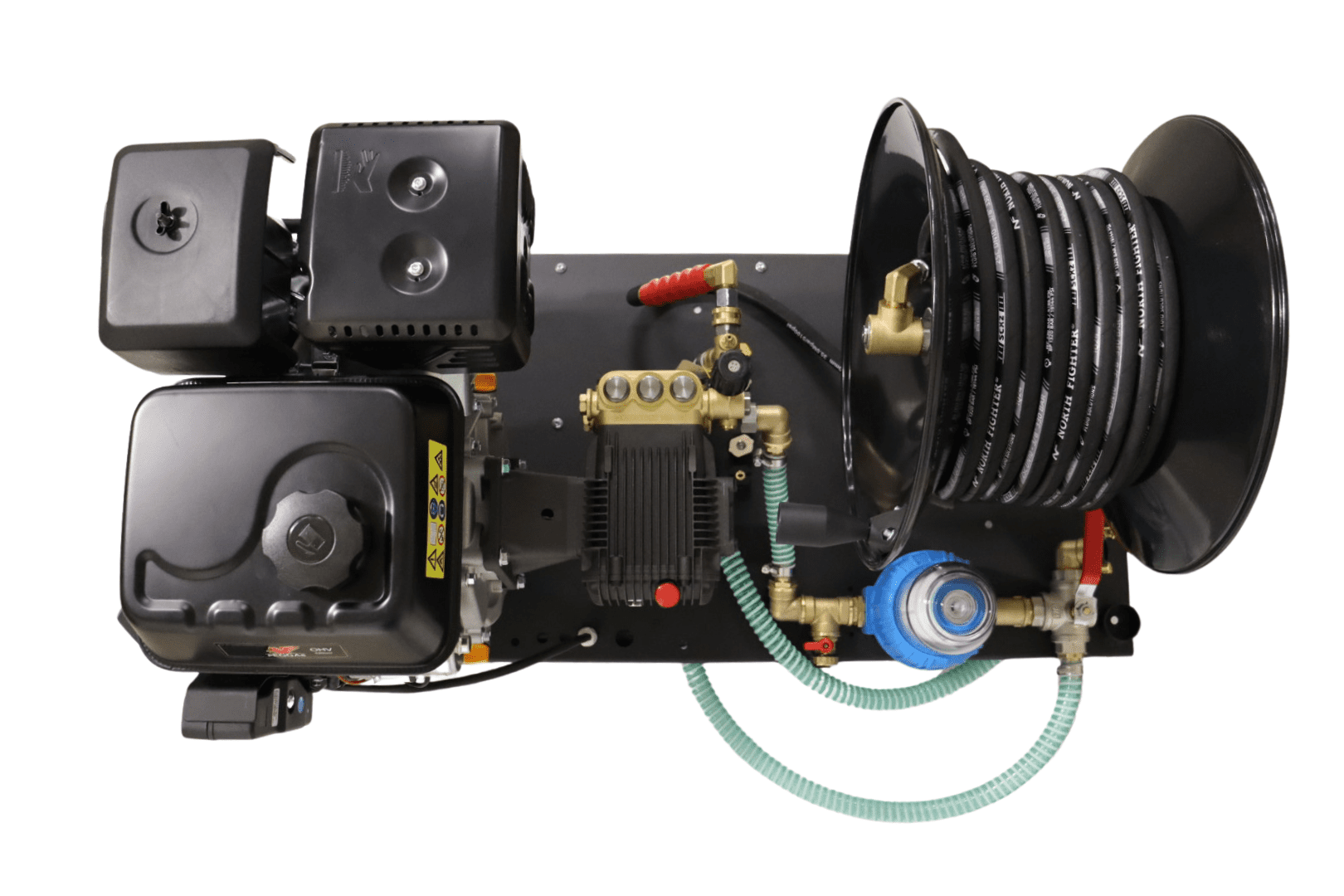

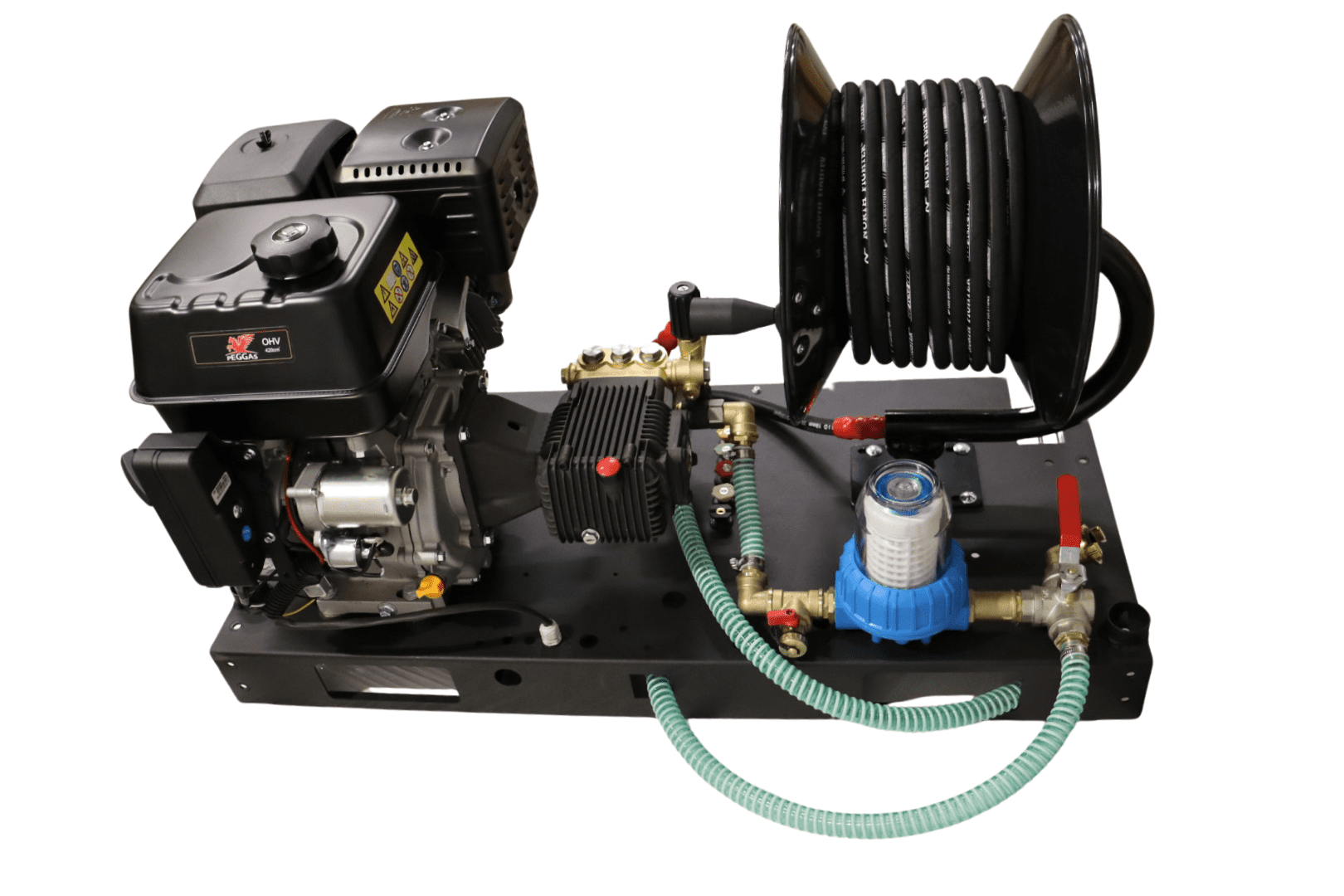

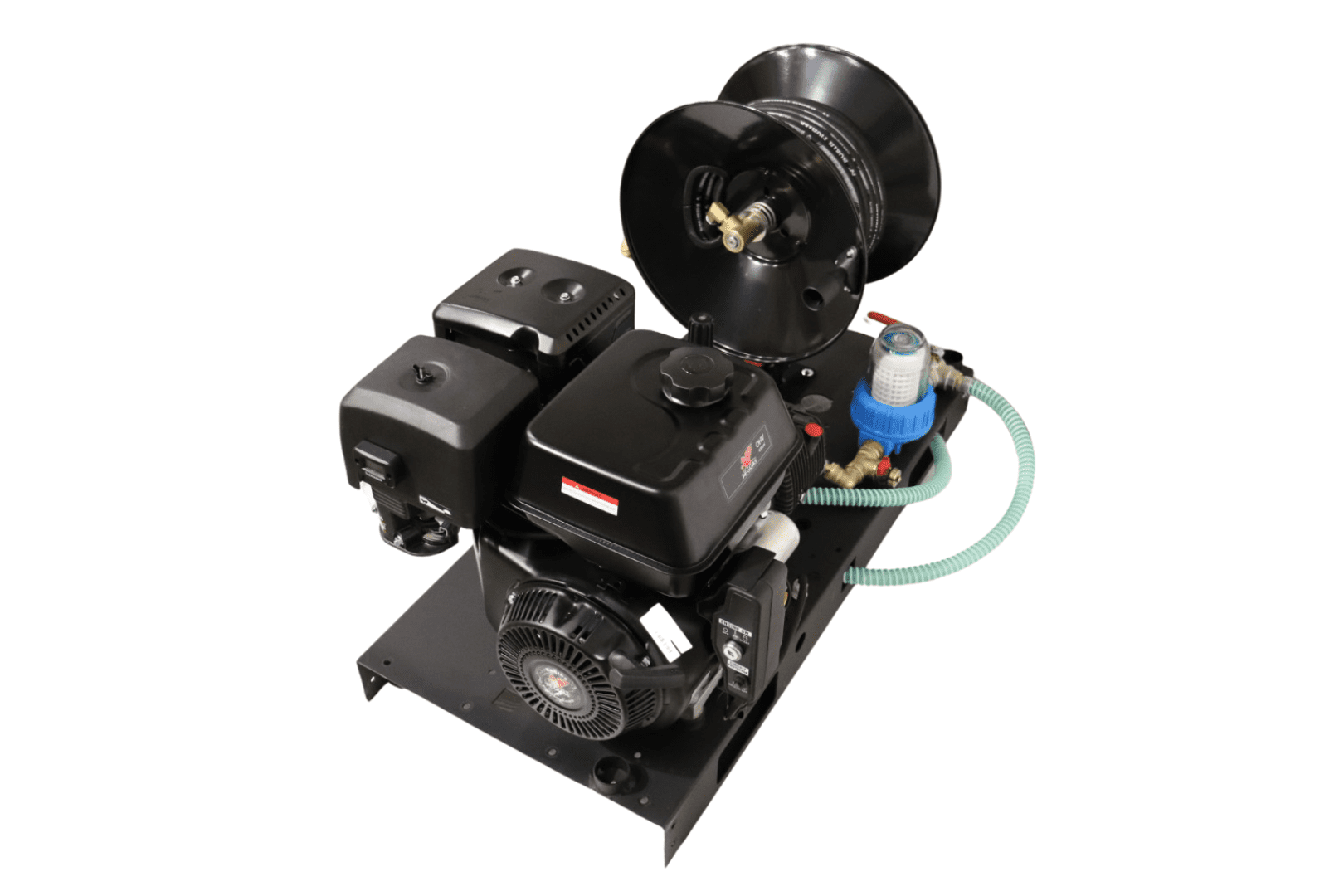

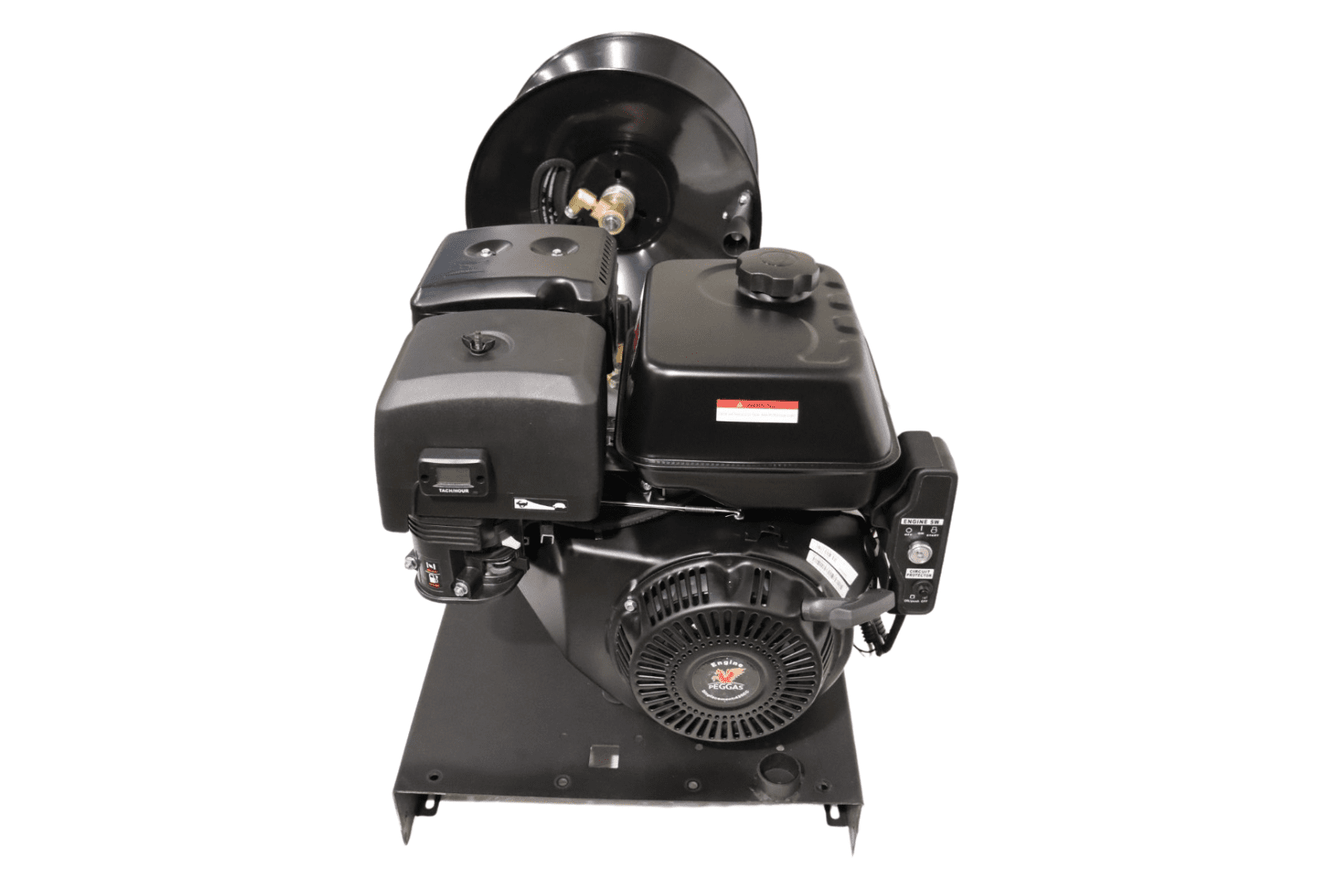

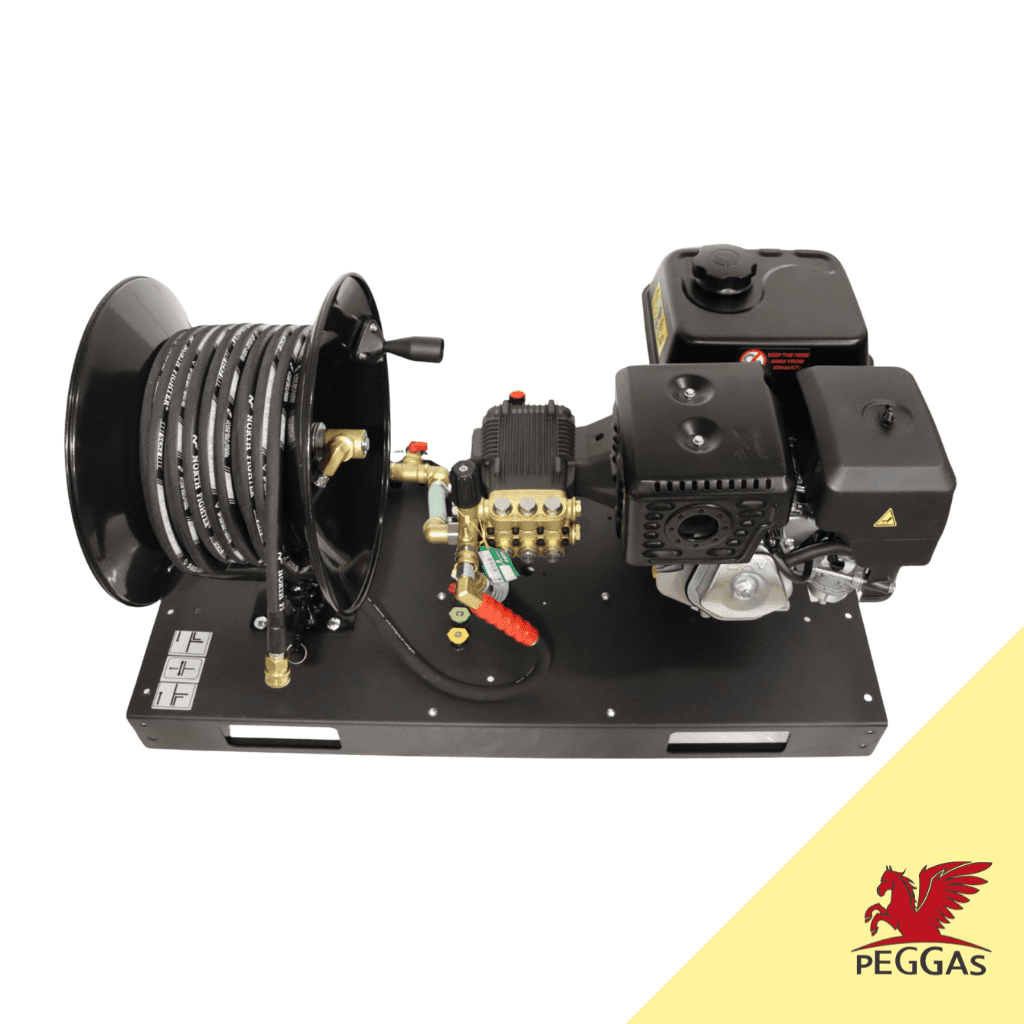

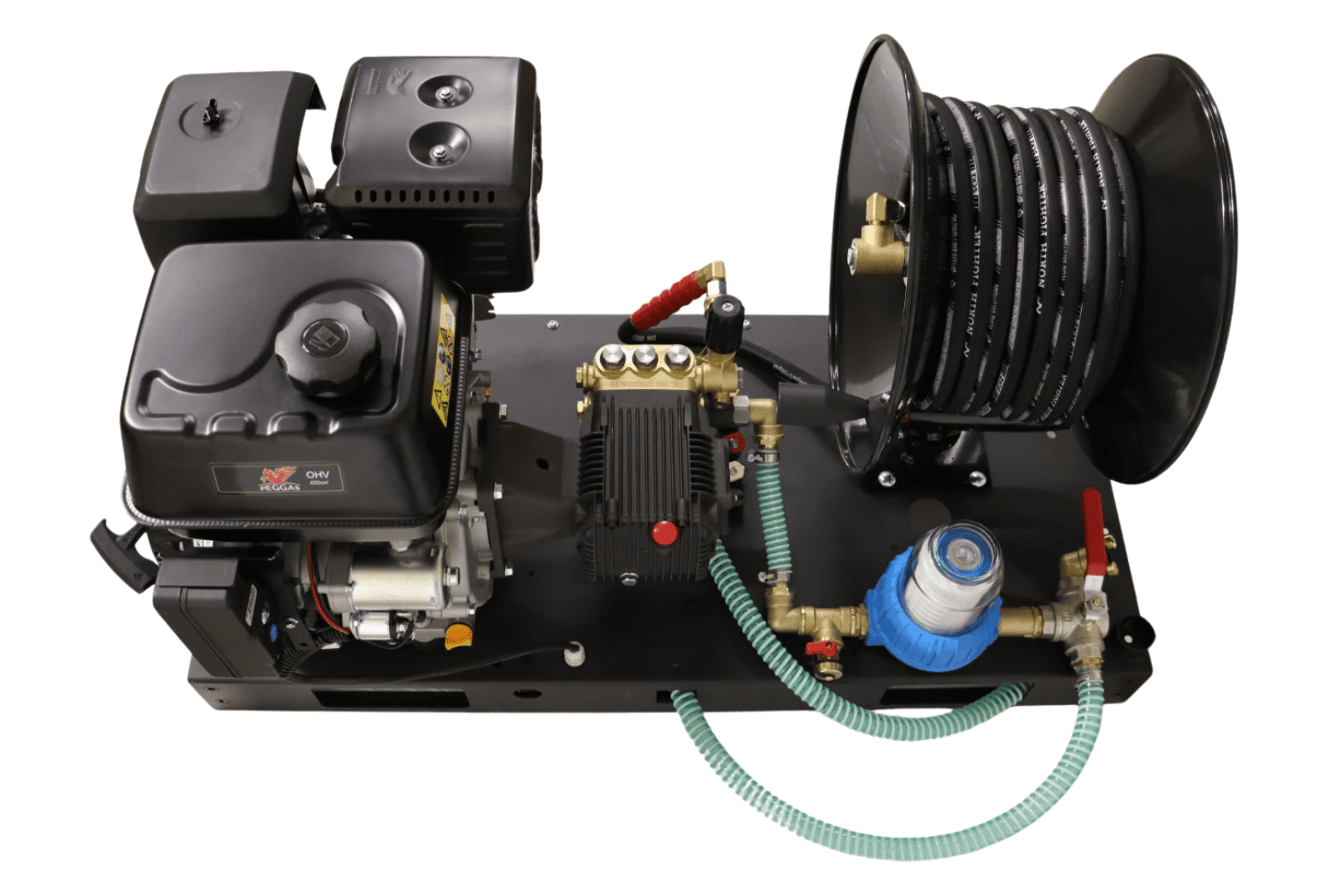

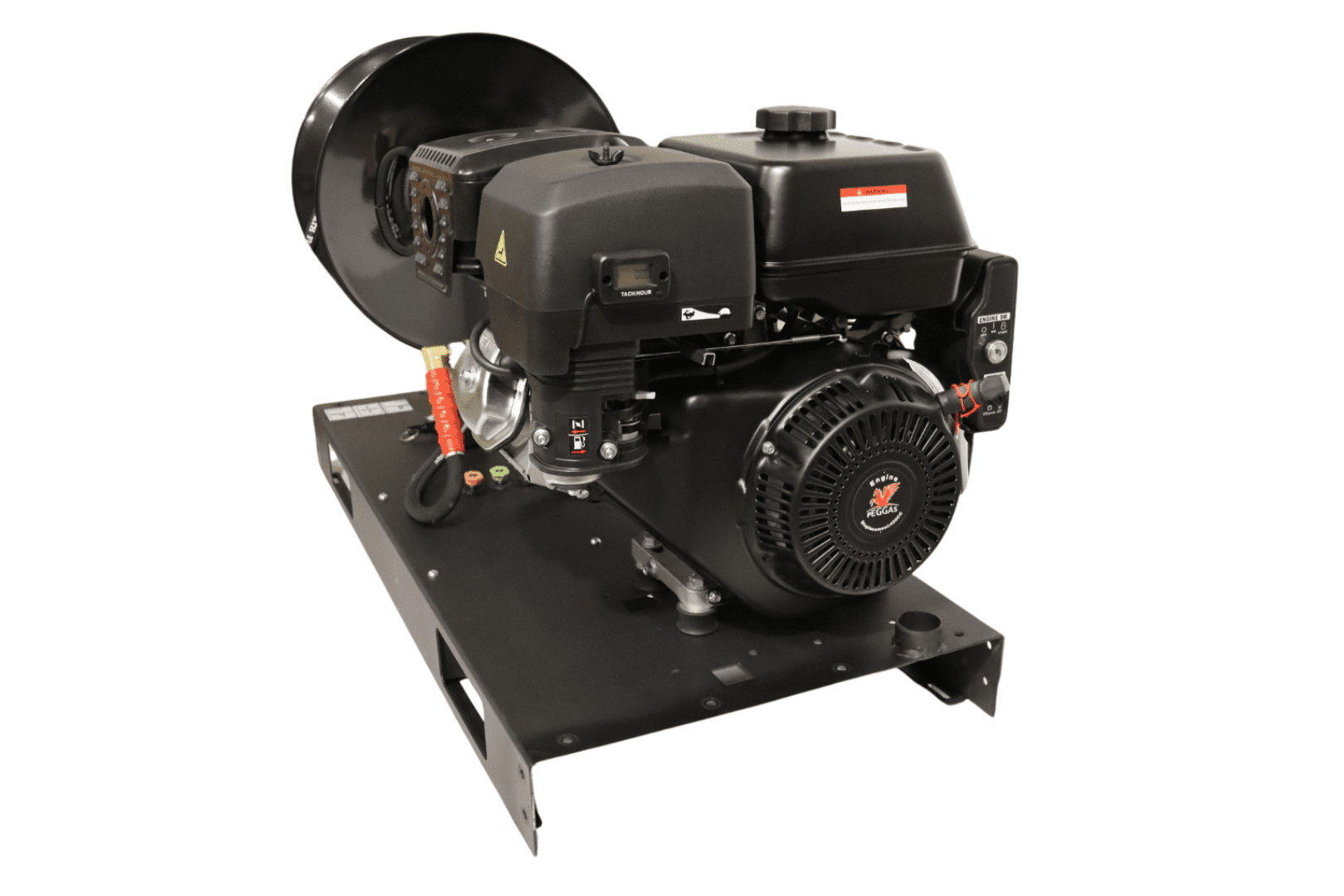

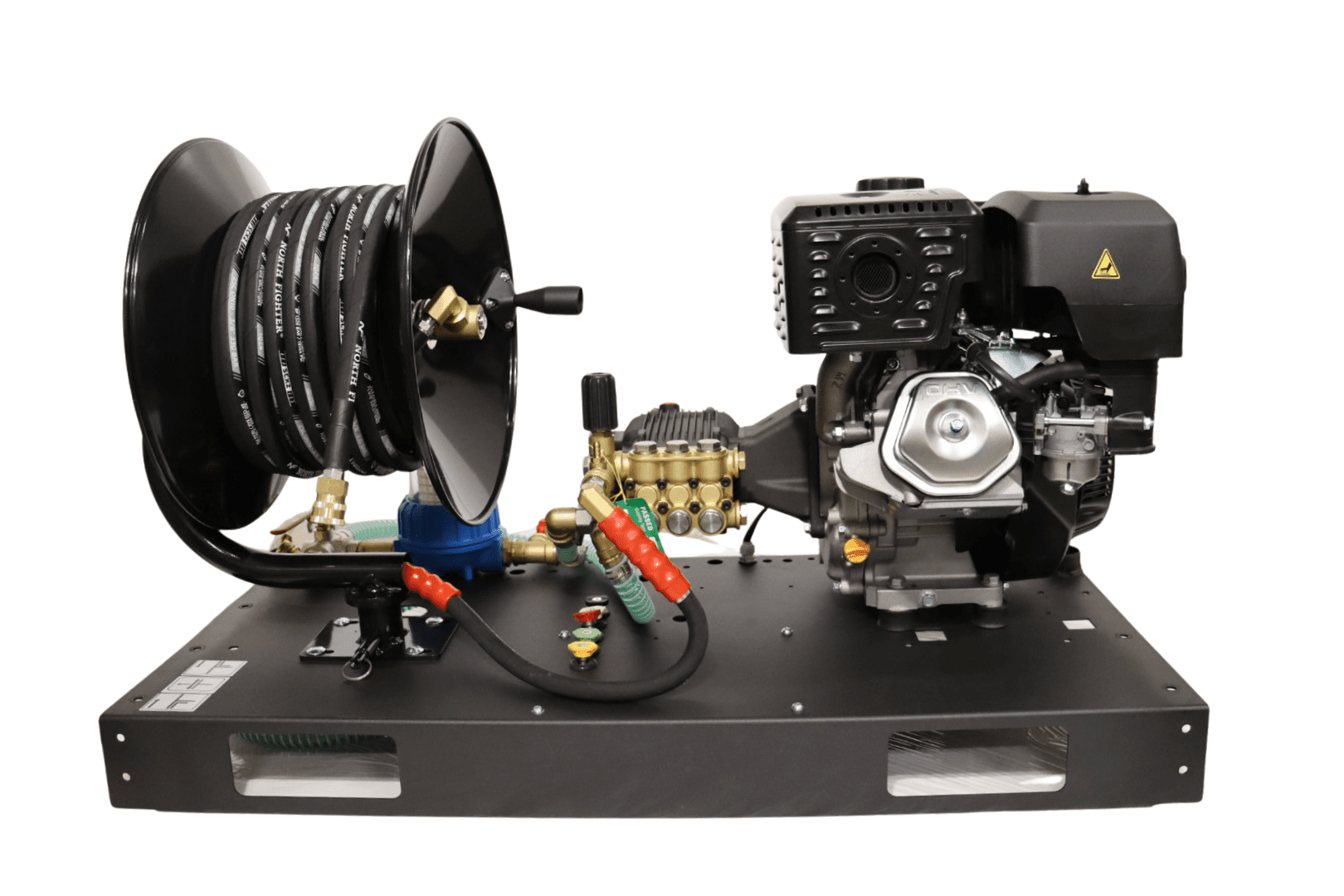

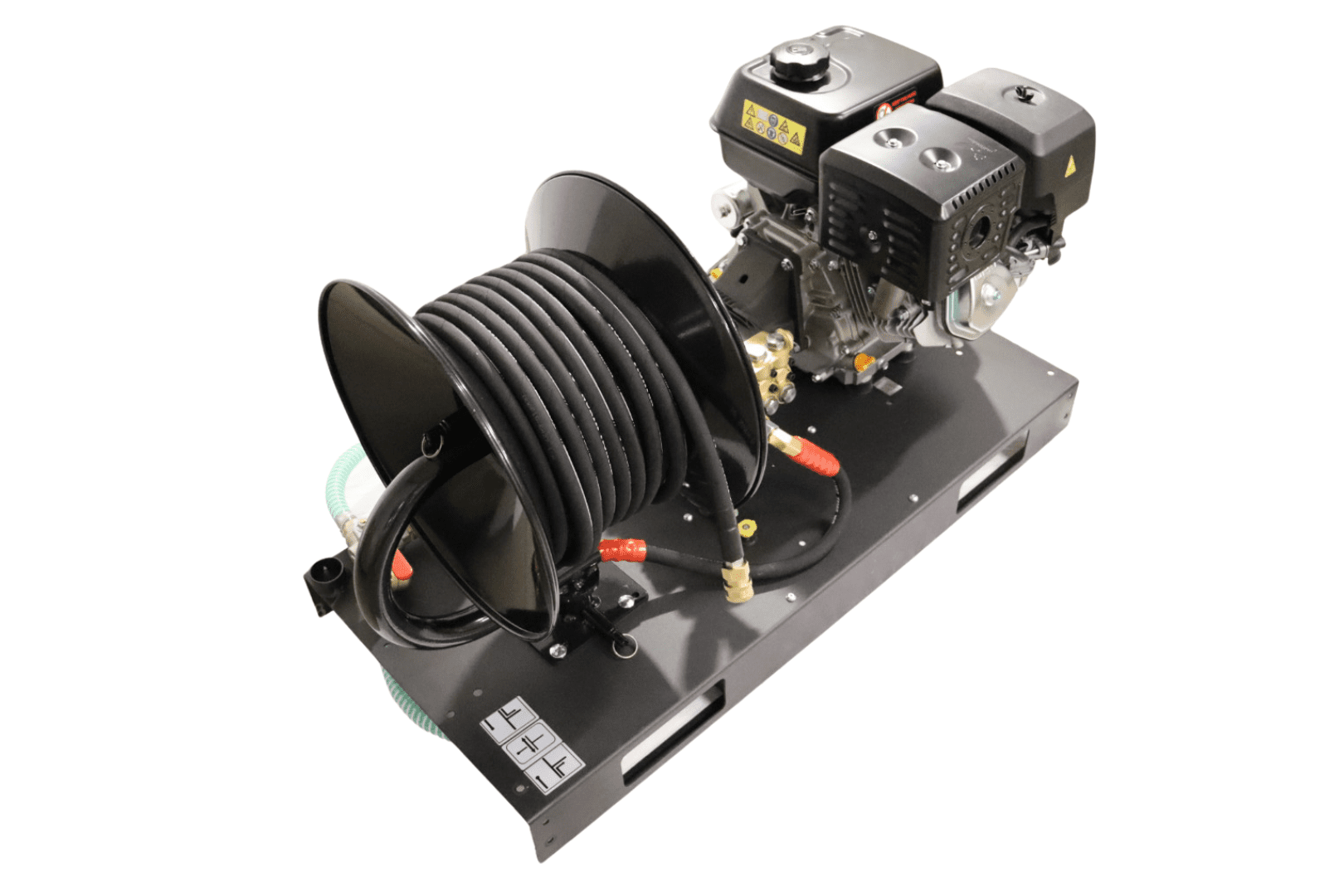

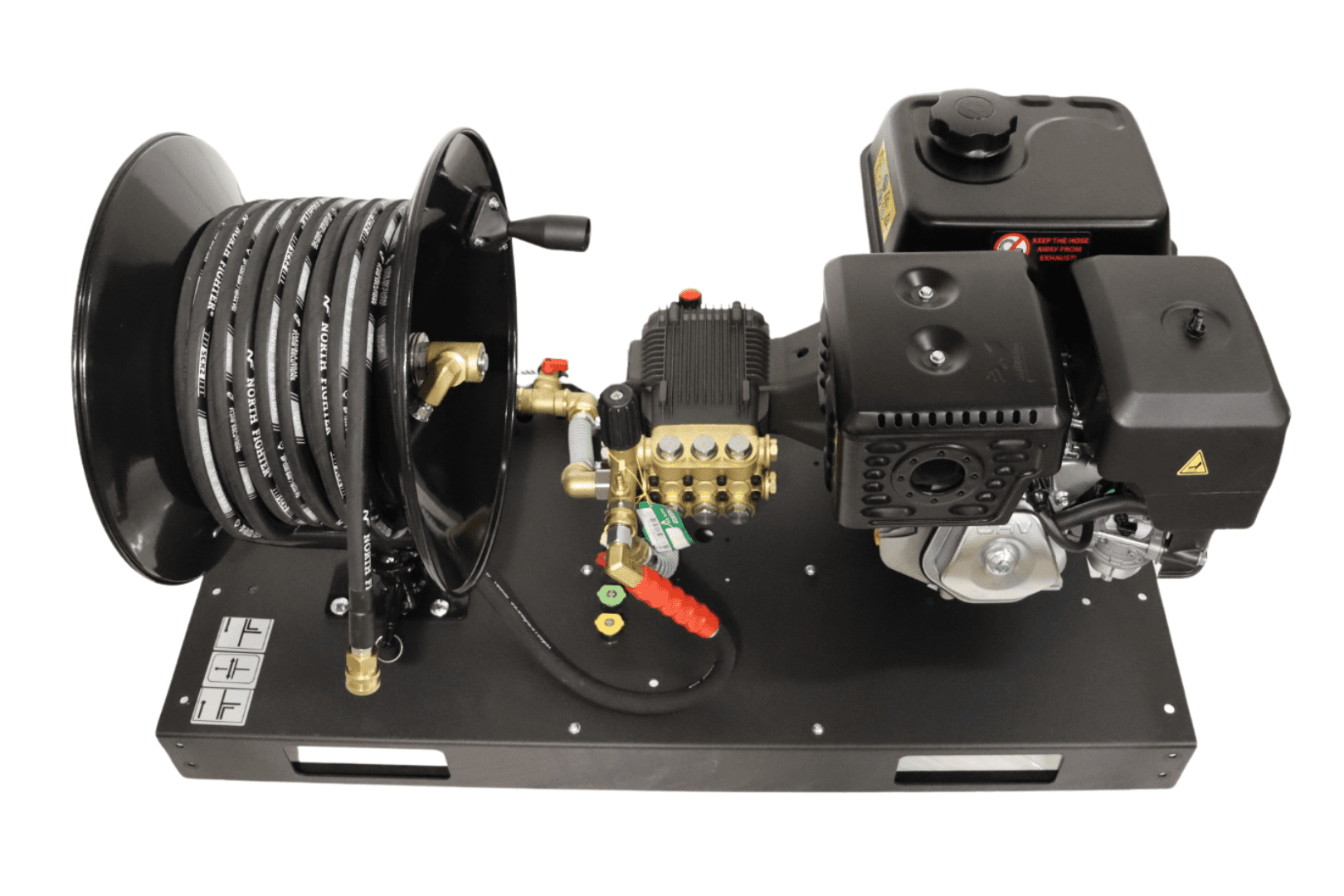

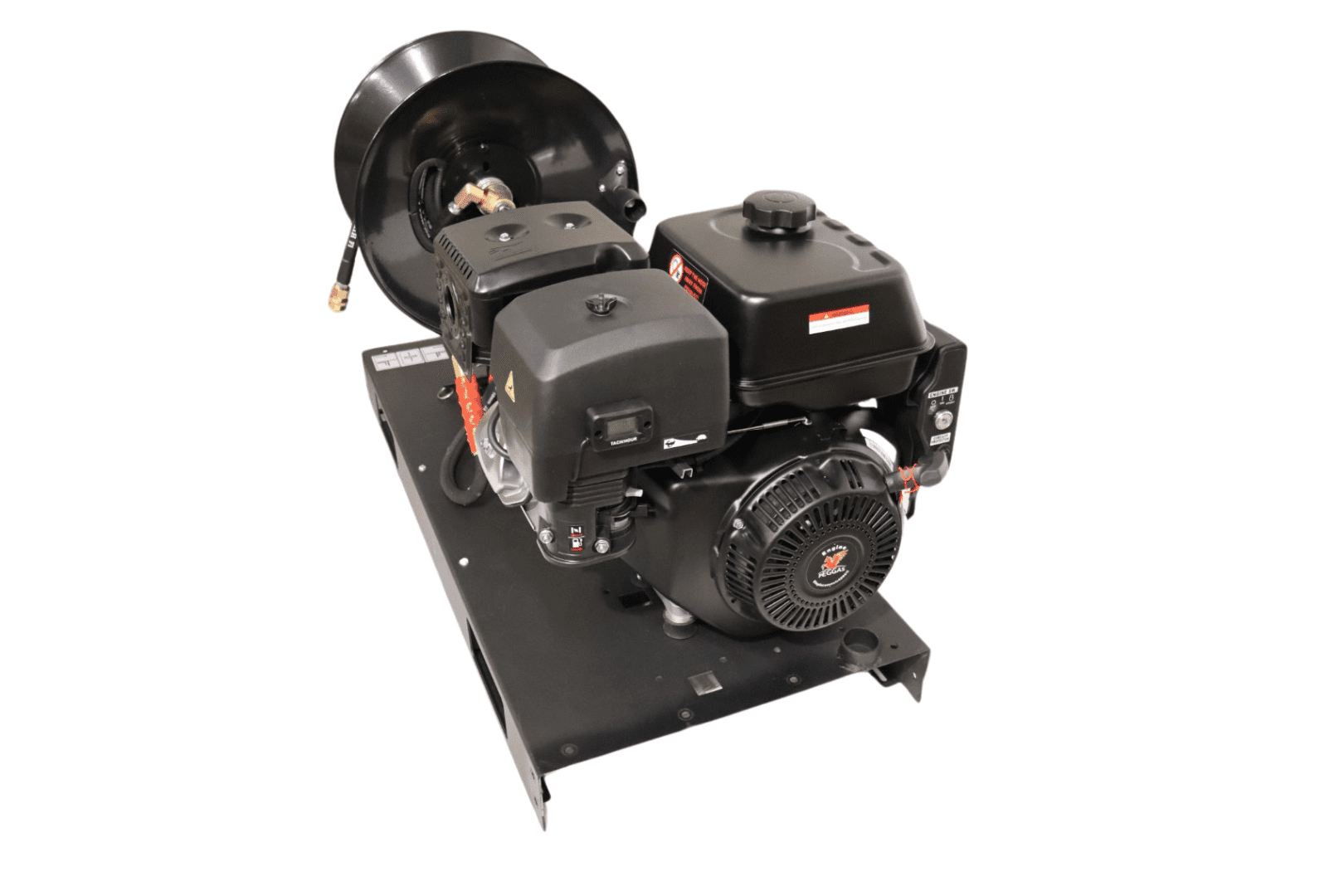

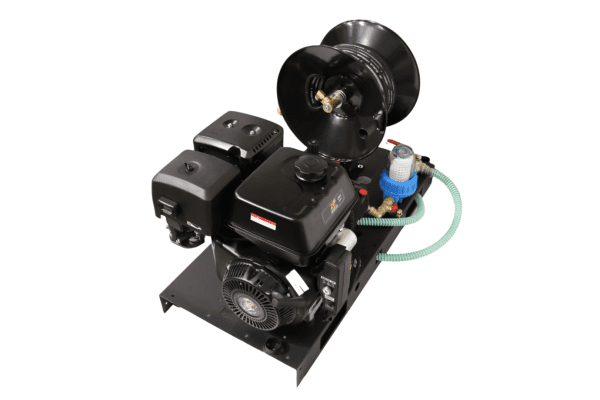

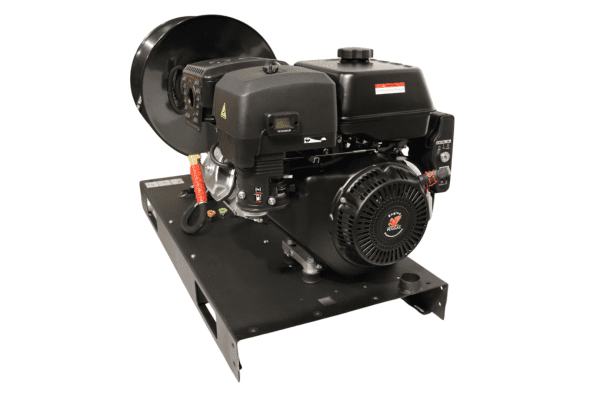

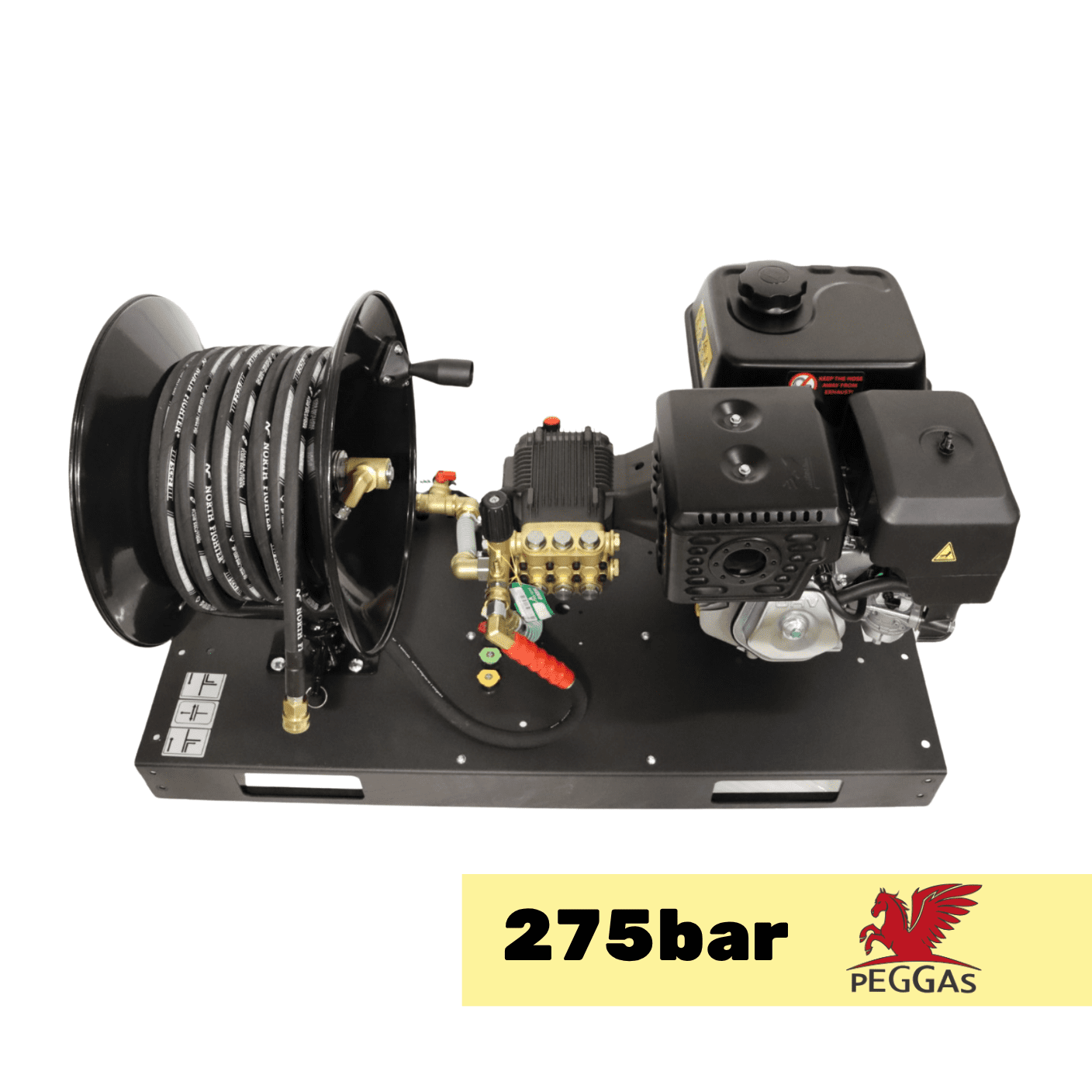

Motor Platform with Hose Reel GE1013LD, Peggas S AP190, 4000psi/ 275bar

Powered by the robust Peggas S AP190 engine (420 cm³), the platform offers stable performance, smooth running, and high durability, making it a reliable foundation for high-pressure cleaners and other professional pressure equipment.

KEY FEATURES:

  • Strong 420 cm³ Peggas S AP190 engine

  • Radial brass pump for long lifespan and steady output

  • Max pressure 4000 psi / 275 bar, water flow 18 l/min

  • Manual + electric start options

  • Includes 20 m hose and full nozzle set

  • Pressure adjustment range 80–275 bar

 2,489.00

In stock
SKU 8588009225867
In stock
Add to wishlist Add to compare

Description

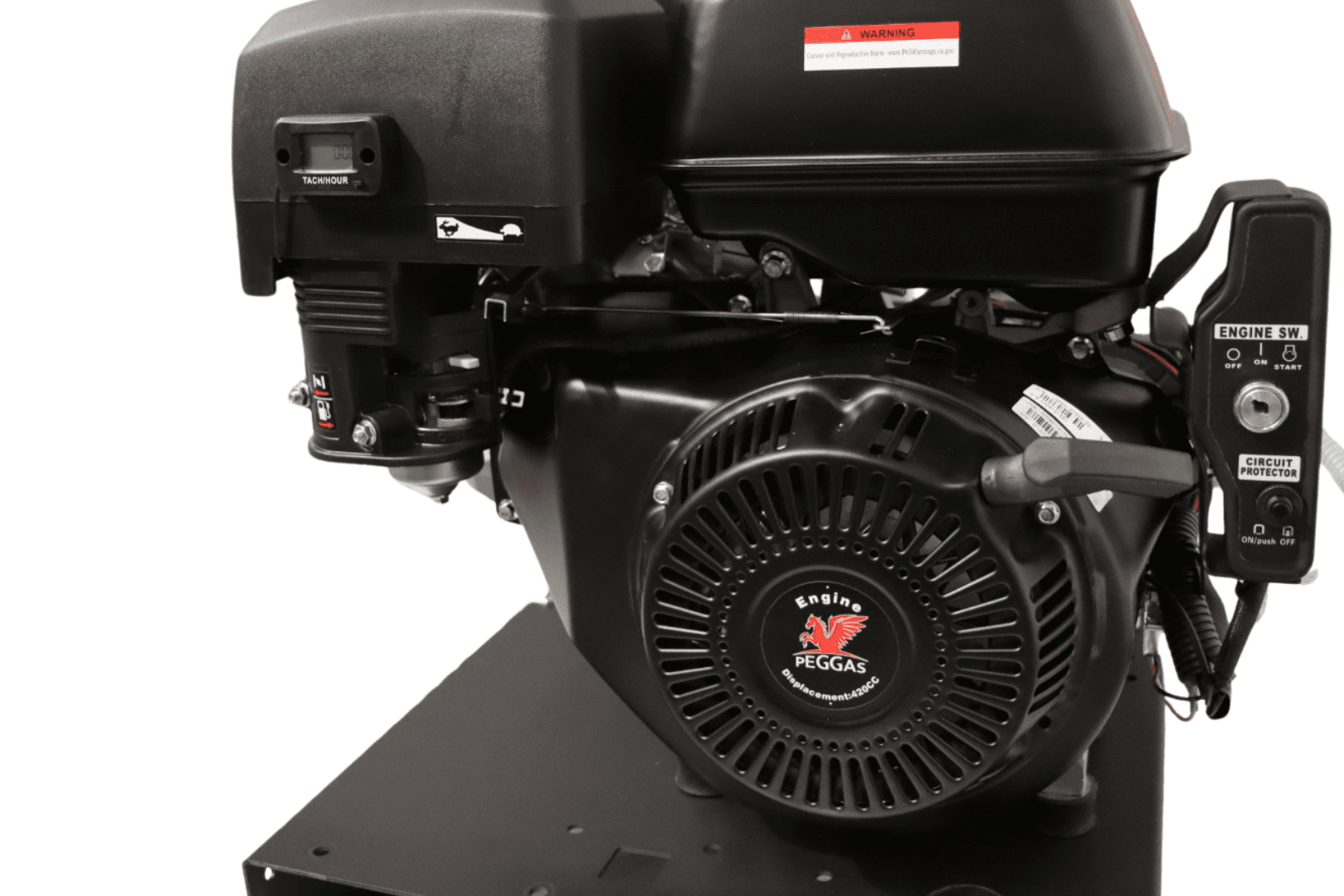

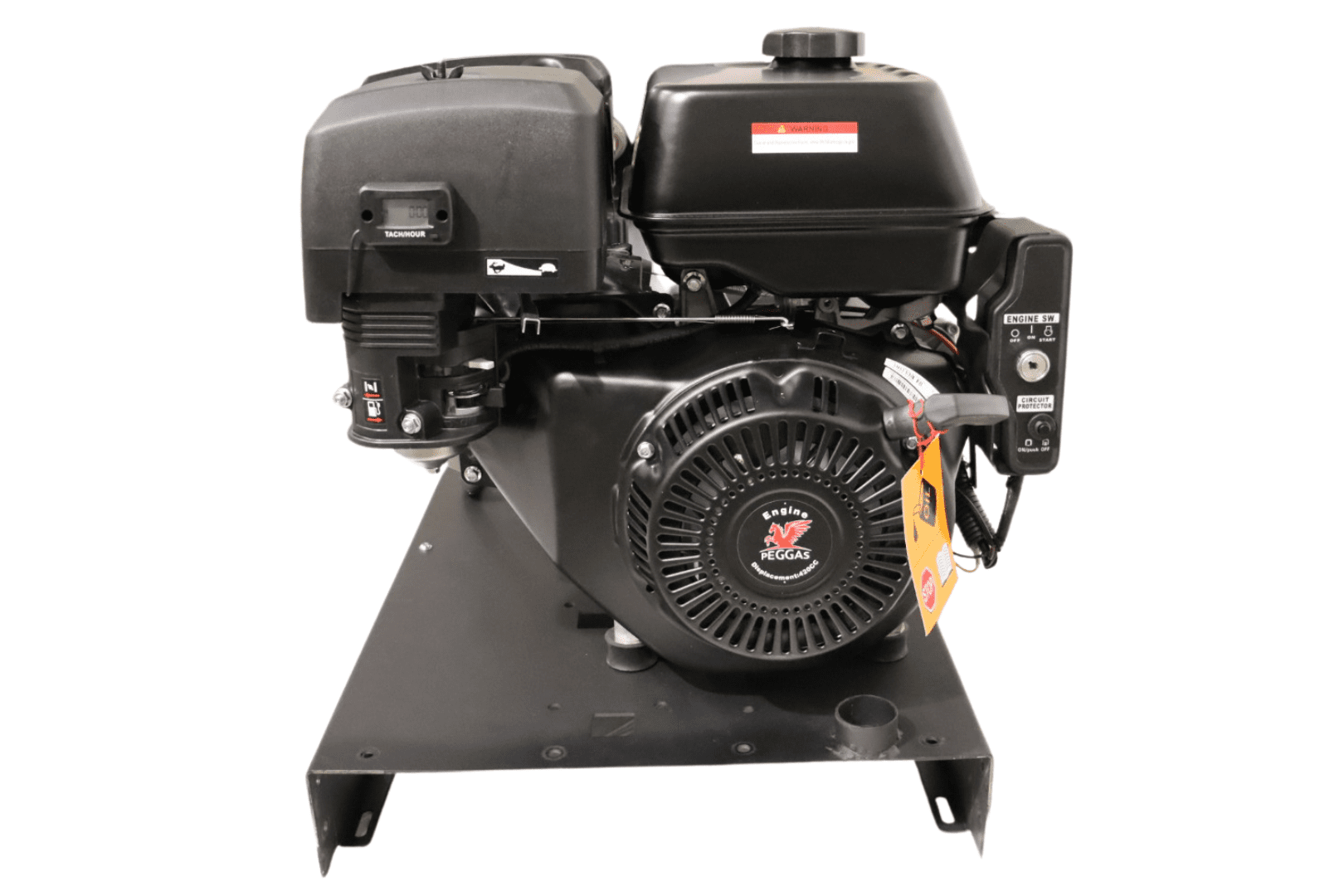

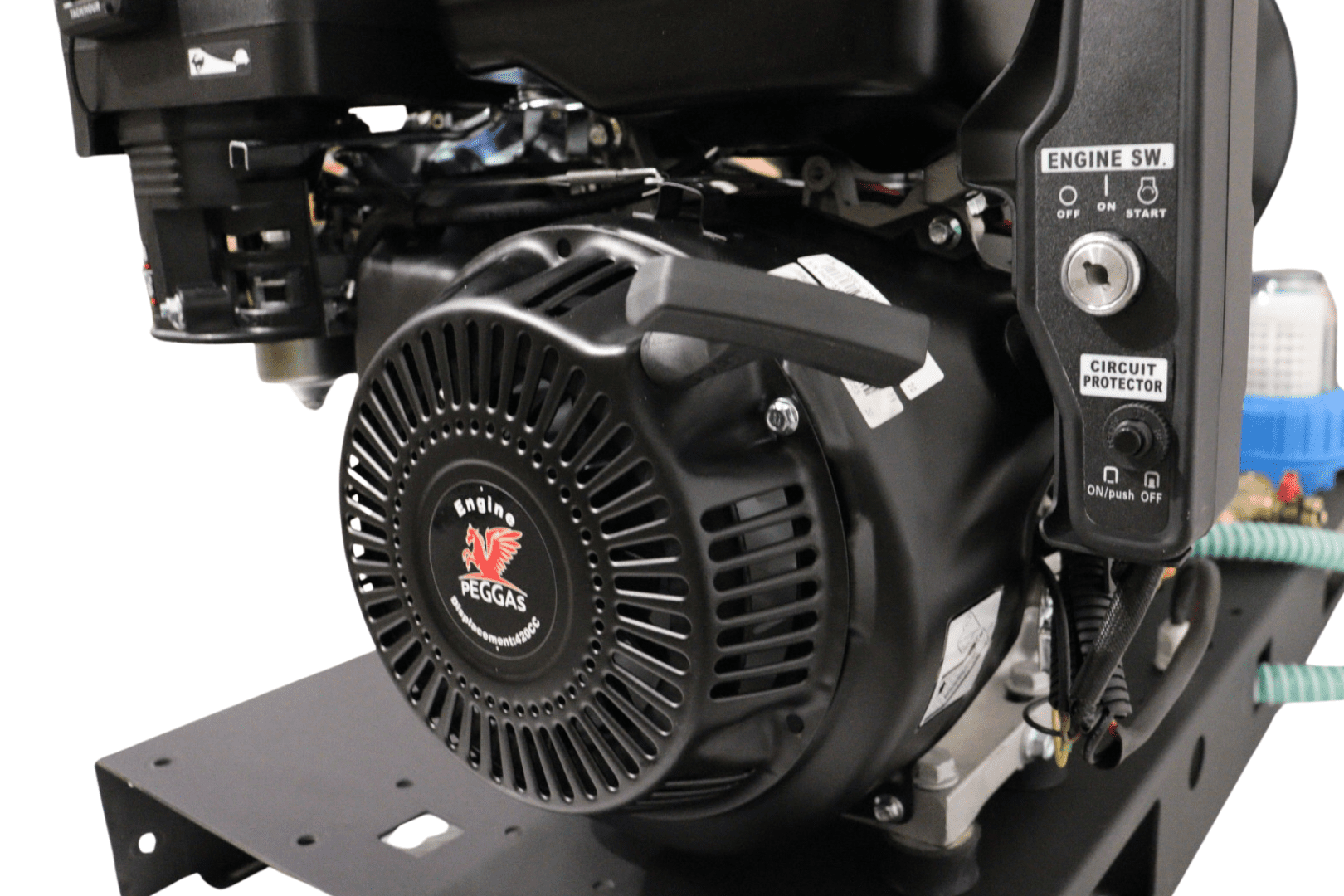

The engine features a horizontal shaft, OHV design, mechanical choke, throttle control, and a low-oil shutdown safety system. It can be started manually (recoil) or electrically, offering convenient operation in any working conditions.

The platform is equipped with a professional radial brass pump 3WZ1510AP, supporting working pressure up to 3802 psi / 265 bar, a water flow of 18 l/min, and water temperatures up to 40 °C. The pump is self-priming and allows pressure adjustment in the range of 80–275 bar, providing precise performance control depending on the task.

The system includes a 20 m high-pressure hose (3/8″, 9.7 mm), an ergonomic spray gun, a 40 cm lance, and a complete set of nozzles (0°, 15°, 25°, 40°, Soap + O37). All accessories are connected through QC quick-connect fittings for fast, tool-free changes.

Specification

Weight 75 kg
Dimensions 101 × 55 × 55 cm
Max. output pressure

4000psi/ 275bar

Max. water flow (L/min)

18

Engine Producer

Peggas S AP190

Volume (cm3)

420

Type

OHV

Shaft orientation

Horizontal

Low oil level security system

Yes

Fuel tank volume (L)

6,5

Fuel valve

Yes

Engine oil filling volume (L)

1,1

Throttle regulation

Yes

Choke

Yes / Mechanical

Start up method

Manually / Recoil + Electric

PUMP Model

3WZ1510AP

Pump Type

Radial

Pump head material

Brass

Max. water temperature °C

40

Self priming function

Yes

Pressure regulator

Yes, 80 – 275 bar

HOSE Lenght (m)

20

Diameter (in/mm)

3/8" / 9,7

Max. working pressure (psi/bar)

3802 / 265

Connection type

QC 3/10

Nozzles included

0°,15°,25°,40°,Soap / 035

Gun type

Ergonomic

Gun to Lance connection

M24

Gun to Hose connection

3/8" QC

Lance lenght (cm)

40

Nozzle connection

1/4" QC
