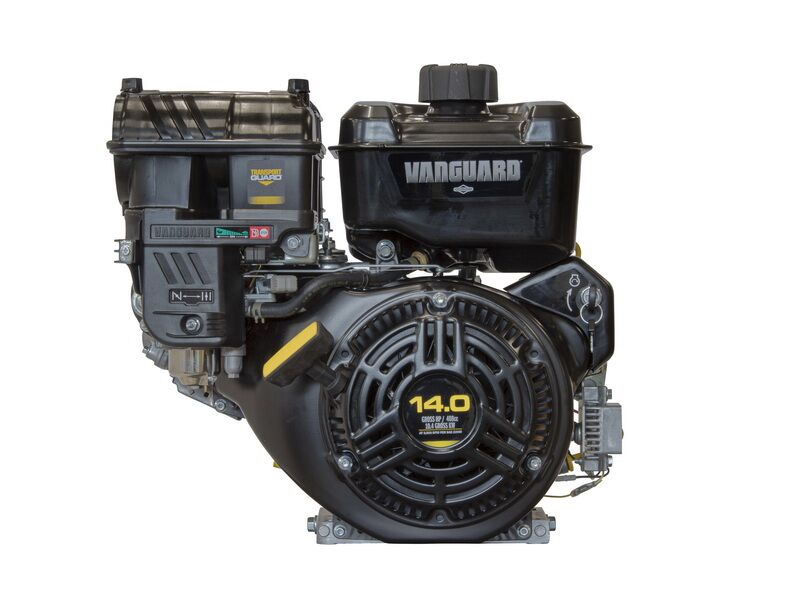

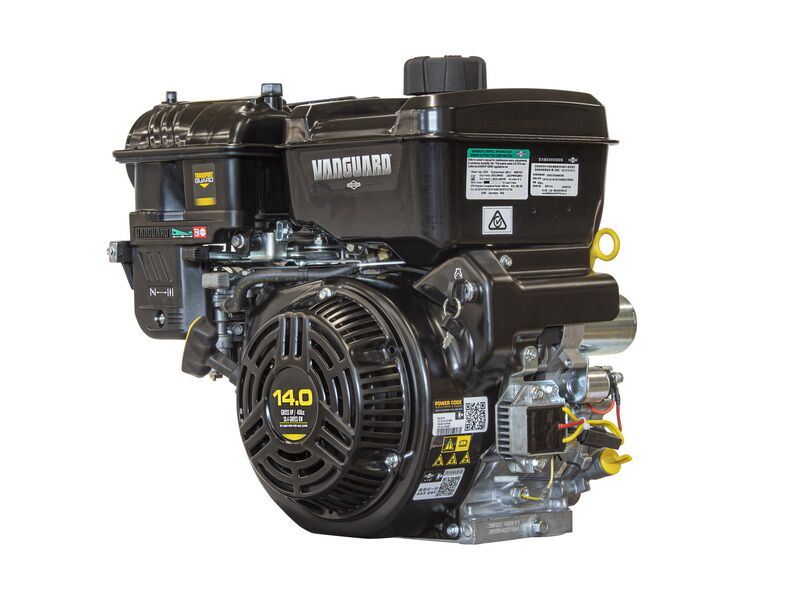

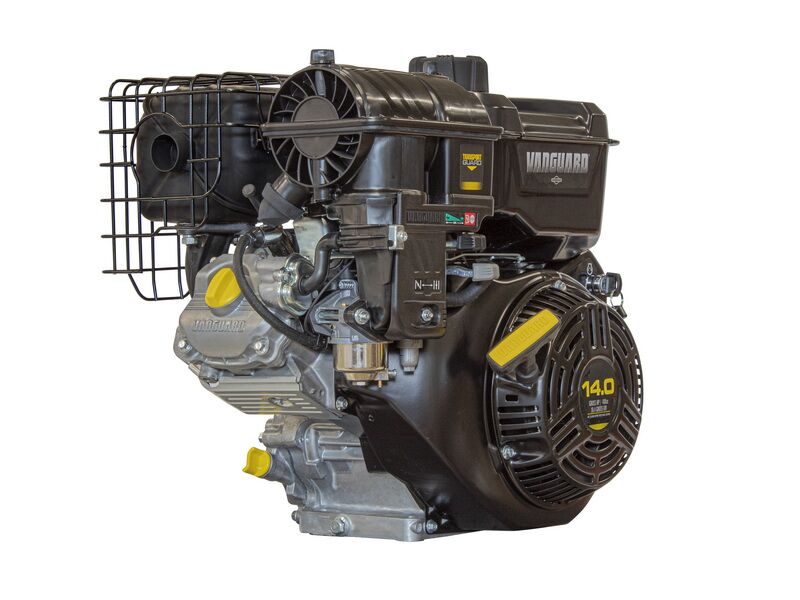

Vanguard Petrol Engine 14HP Electric Start

• EASIER STARTING with new optimised starting design

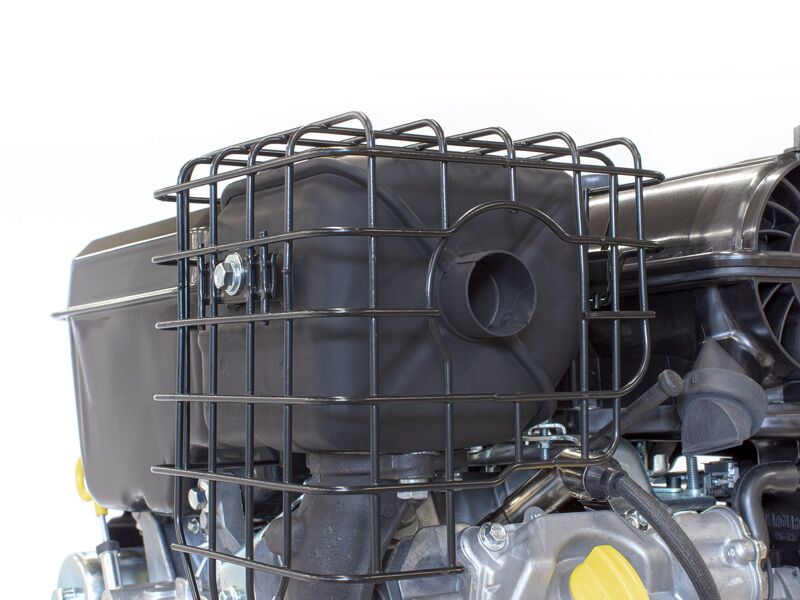

• LOWER MAINTENANCE with cyclonic air filter (up to 600 hour replacement interval)

Sale

 935.00  1,100.00

SKU EB001-VAN14HP
Add to wishlist Add to compare

Description

• EASIER STARTING with new optimised starting design

• LOWER MAINTENANCE with cyclonic air filter (up to 600 hour replacement interval) and advanced oil managment system, increasing oil life by up to 50% (up to 200 hour replacement interval)

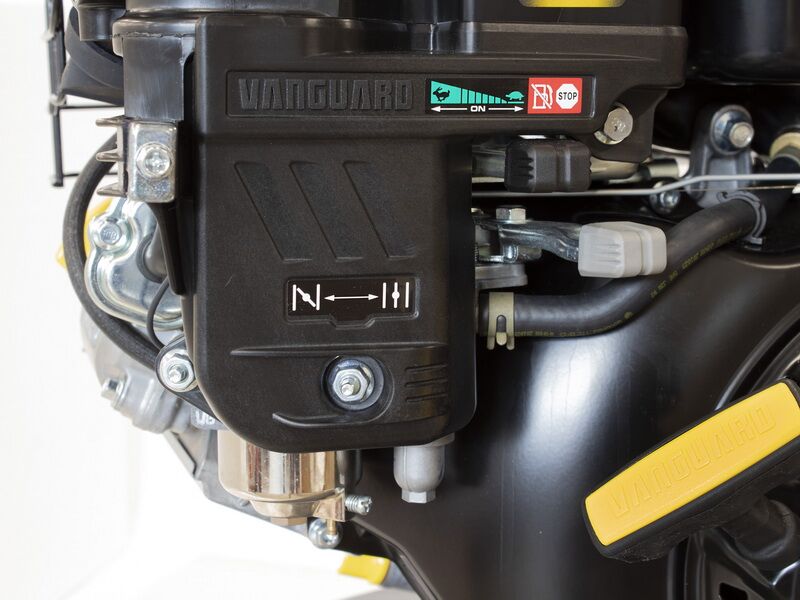

• ENHANCED PROTECTION with Vanguards ‘TransportGuard’ eliminates oil/fuel dilution problem and offers 3-in-1 control lever

• USER COMFORT with Lower noise and Less vibration

The new Vanguard 400 is built from the ground up to deliver what your customers need to get the job done. It outperforms the rest with exclusive market-driven innovations like TransportGuard™ — a 3-in-1 control that eliminates oil/fuel dilution. Plus it’s a drop-fit replacement, no re-engineering required. Upgrade to the Vanguard 400 — the OHV engine that drives demand for your brand.





Specification

Weight 35.5 kg
Dimensions 35.9 × 44.4 × 45.9 cm
Engine Type

Single cylinder 4-stroke air-cooled OHV (Overhead
Valve)

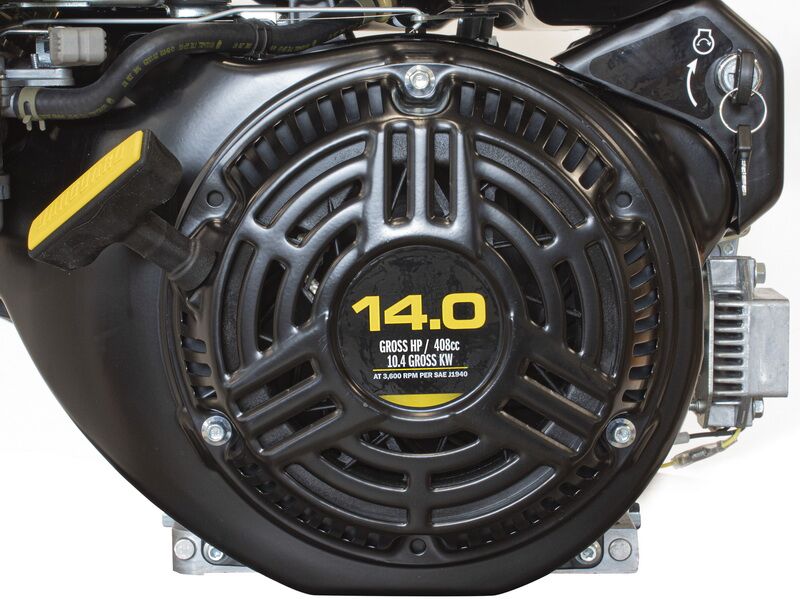

Recoil Start

Yes

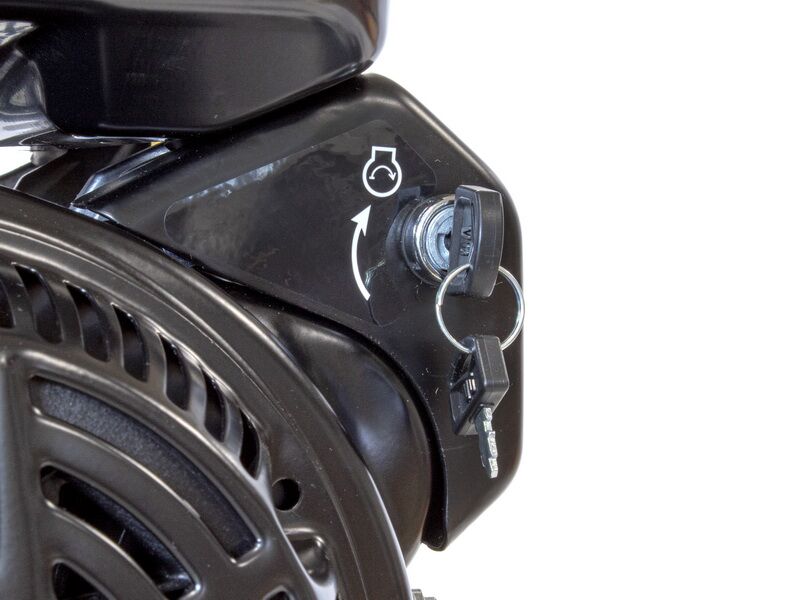

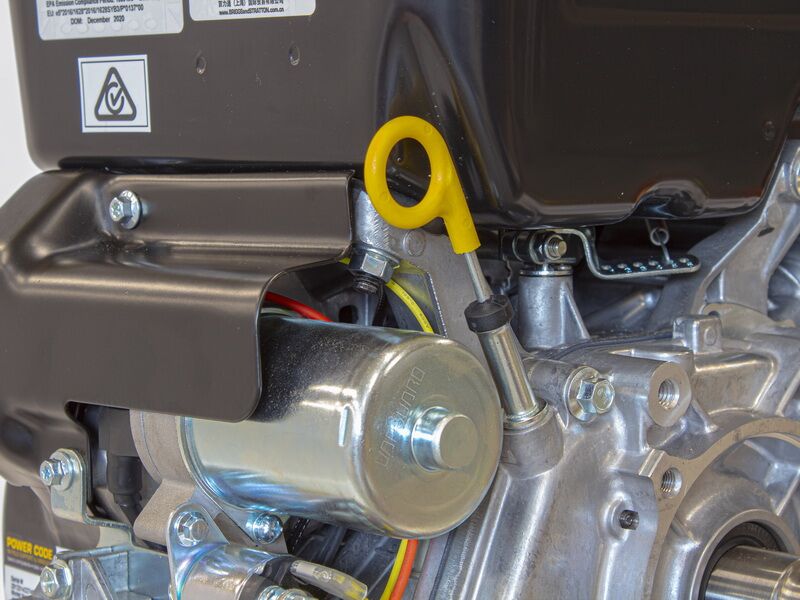

Electric Start (Key Start)

Yes

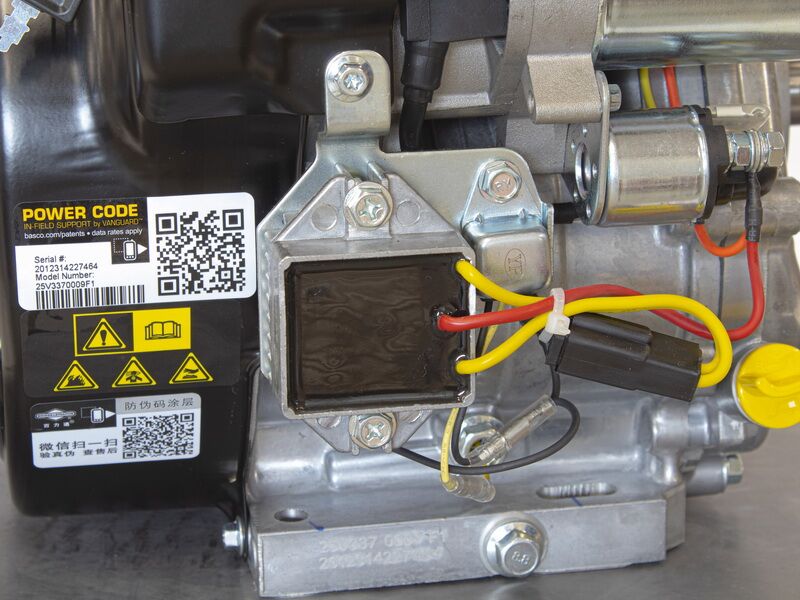

Charge Coil Output

20A

Model Number

25V3

Gross kW* @ 3’600 rpm

10.4

Gross HP* @ 3’600 rpm

14.0

Displacement (cc)

408

Cylinder

Cast Iron Sleeve

Bore (mm

88.0

Stroke

(mm) 67.0

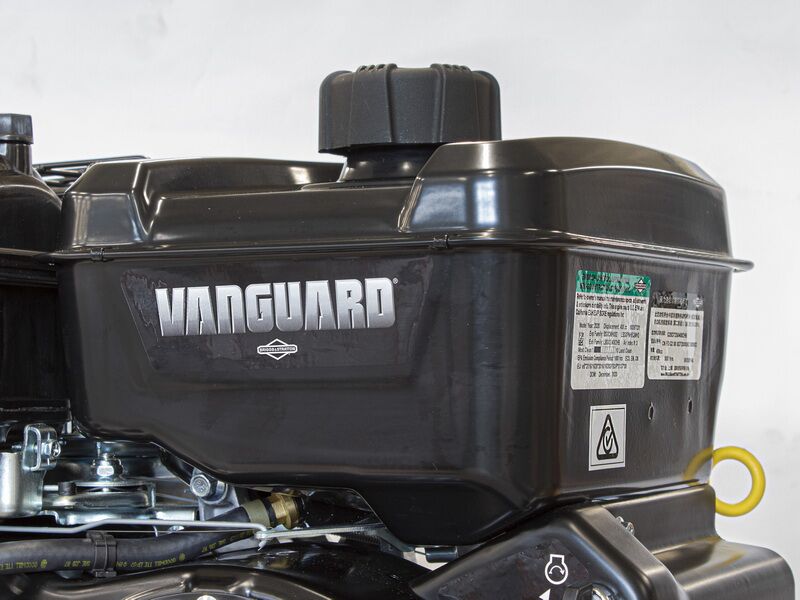

Fuel Tank Capacity (l)

6.1

Oil Capacity (l)

0.94

Compression Ratio

8.3:1

Air Cleaner

Integrated Cyclonic Air Cleaner

Ignition System

CDI Ignition

Lubrication System

Splash Lubrication
