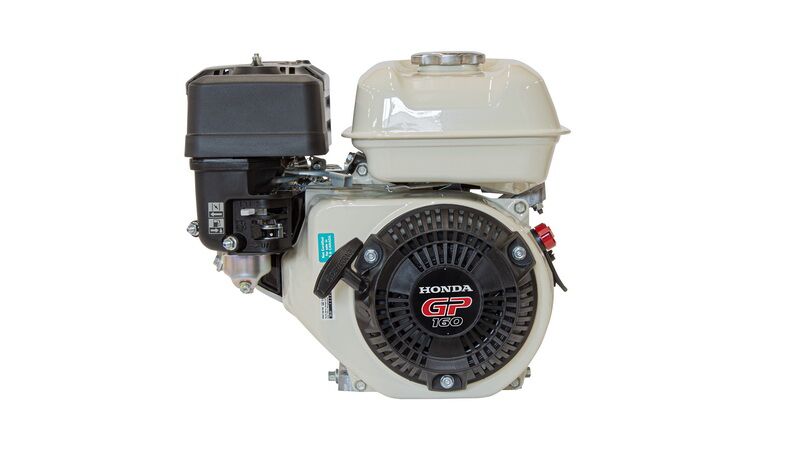

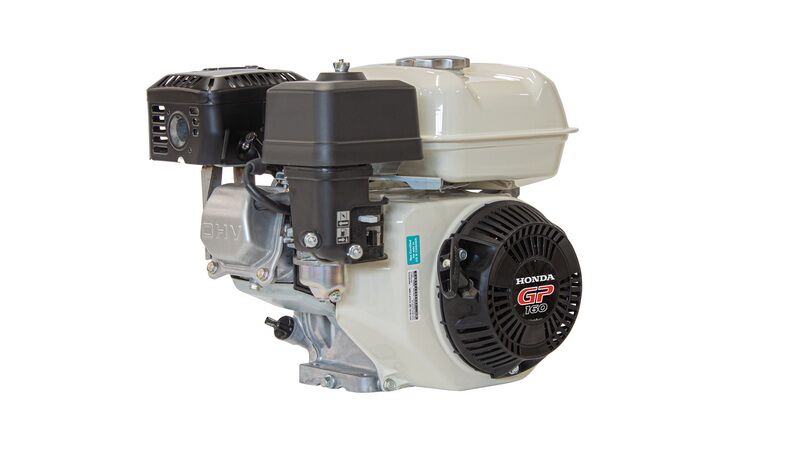

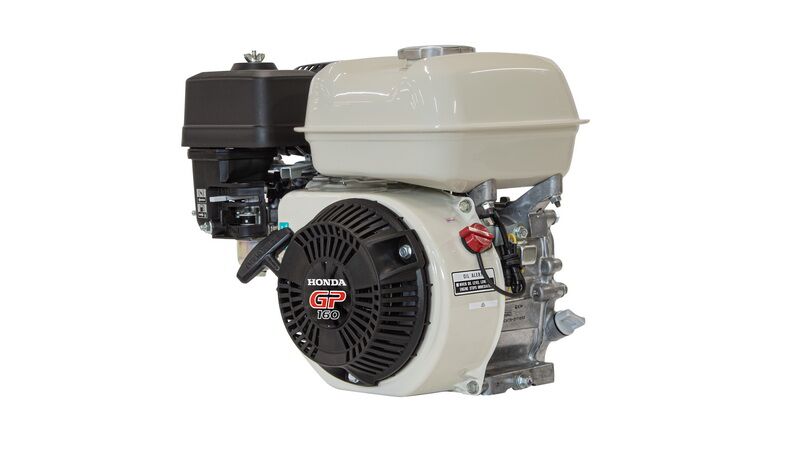

Honda GP160 Petrol Engine 4.8HP Recoil Start

A tiller Spec 3/4” (19.05mm) Keyway Shaft Oil Alert Petrol Engine.
The GP160 engine is suitable for a wide range of light duty applications …

Sale

 237.15  279.00

SKU EW001-GP160H
Add to wishlist Add to compare

Description

Honda GP160 QHB1 Non-Oil Alert 3/4” Keyway Shaft Engine (No Stop Switch)

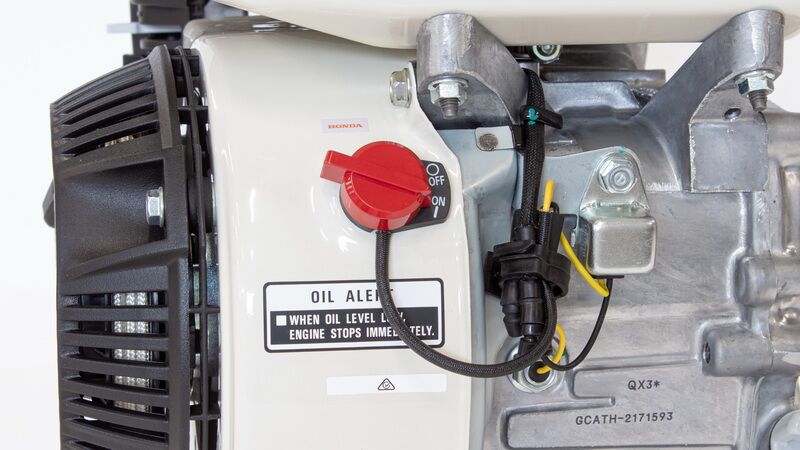

A tiller Spec 3/4” (19.05mm) Keyway Shaft Oil Alert Petrol Engine.

The GP160 engine is suitable for a wide range of light duty applications such as home-use tillers, aerators and other applications.

Engine features:

OHV design enhances combustion efficiency
High power-to-displacement ratio
Easy starting with an automatic decompression system
High quality materials and purpose-built components which ensure reliable, long-term use
Exceeds European exhaust emission legislation
Low fuel and oil consumption

PLEASE NOT – THIS ENGINE DOES NOT HAVE A STOP SWITCH AT THE ENGINE. IT IS SETUP FOR REMOTE IGNTION (EG. AT THE HANDLE OF YOUR ROTOVATOR)

Specification

Weight 15.1 kg
Dimensions 31.4 × 36.3 × 33.5 cm
Engine type

Air cooled 4-stroke OHV petrol engine,
25° inclined cylinder, horizontal shaft,
cast iron sleeve

Bore x stroke

68 x 45 mm

Displacemen

163 cm3

Compression ratio

8.5 : 1

Net power

3.6 kW (4.8 HP) / 3 600 rpm

Cont. rated power

2.5 kW (3.4 HP) / 3 000 rpm
2.9 kW (3.9 HP) / 3 600 rpm

Max. net torque

10.3 Nm / 1.05 kgfm / 2 500 rpm

Ignition system

Transistorised

Starting system

Recoil Starter

Fuel tank capacity

3.1 l

Fuel cons. at cont. rated power

1.4 L/hr – 3 600 rpm

Engine oil capacity

0.6 l
