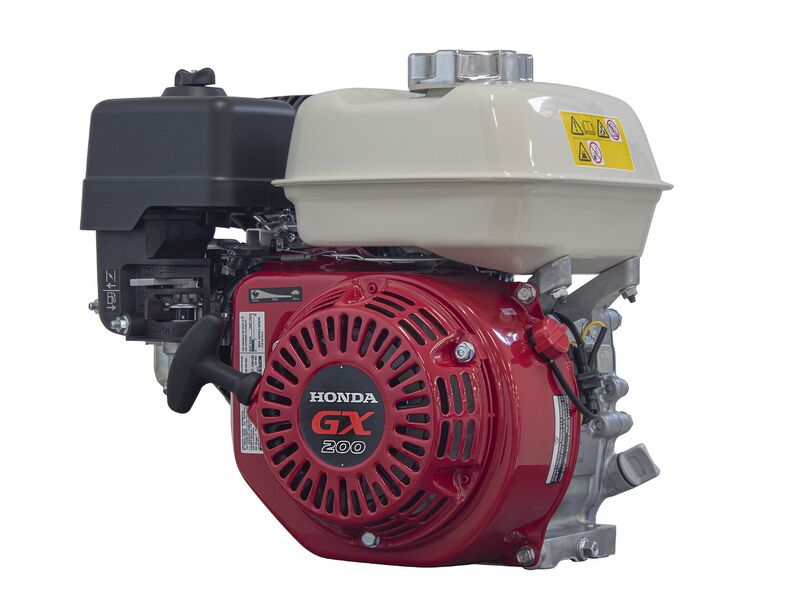

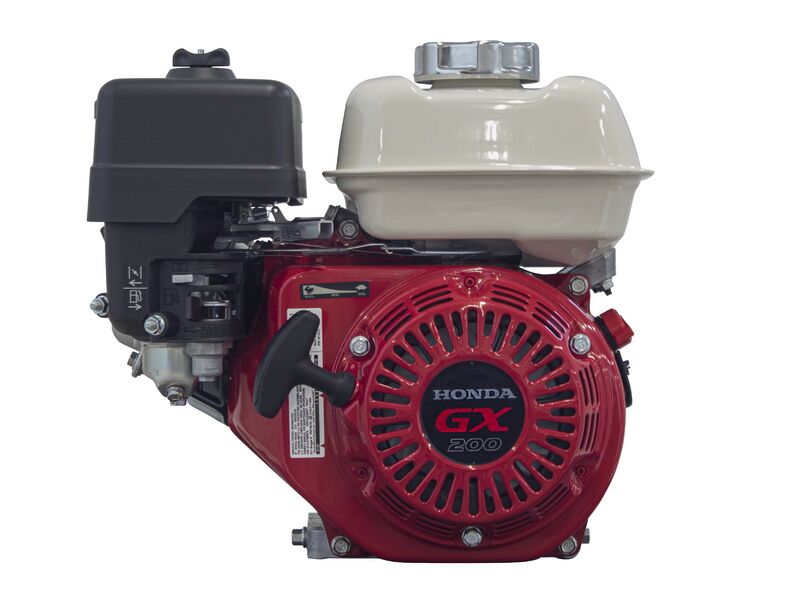

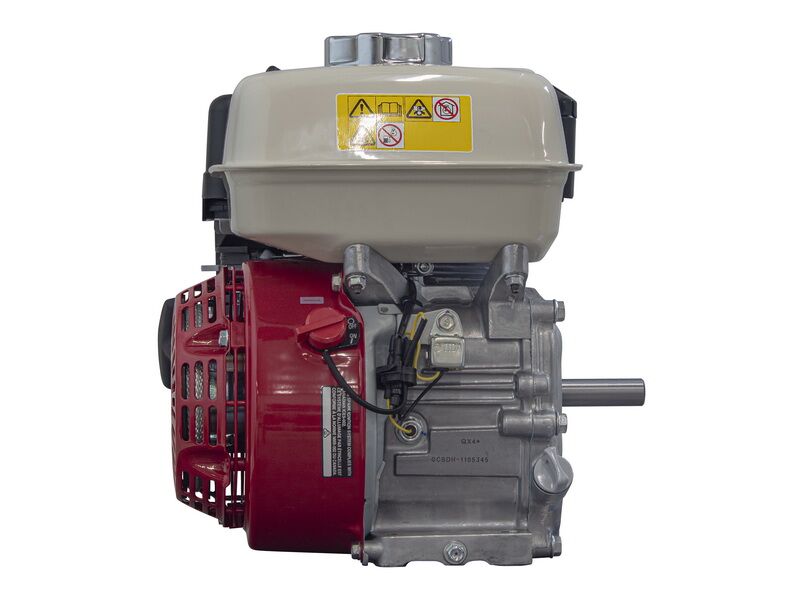

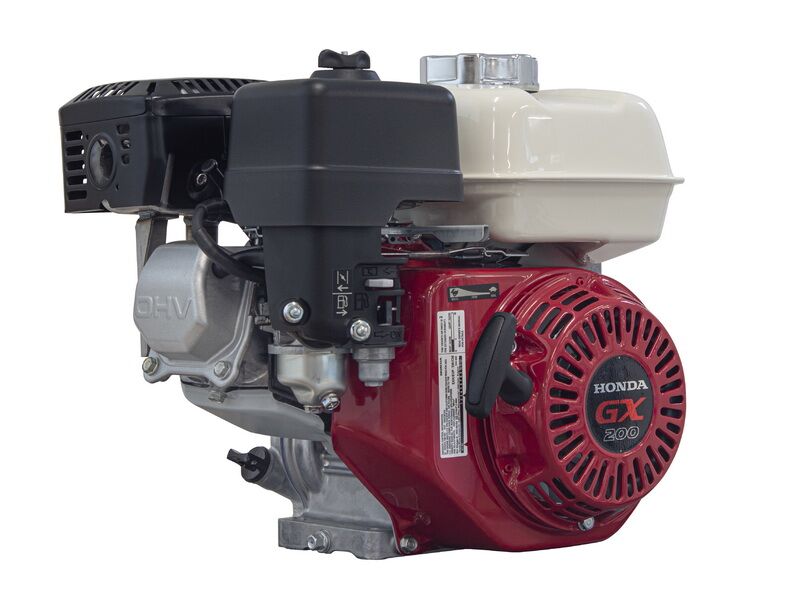

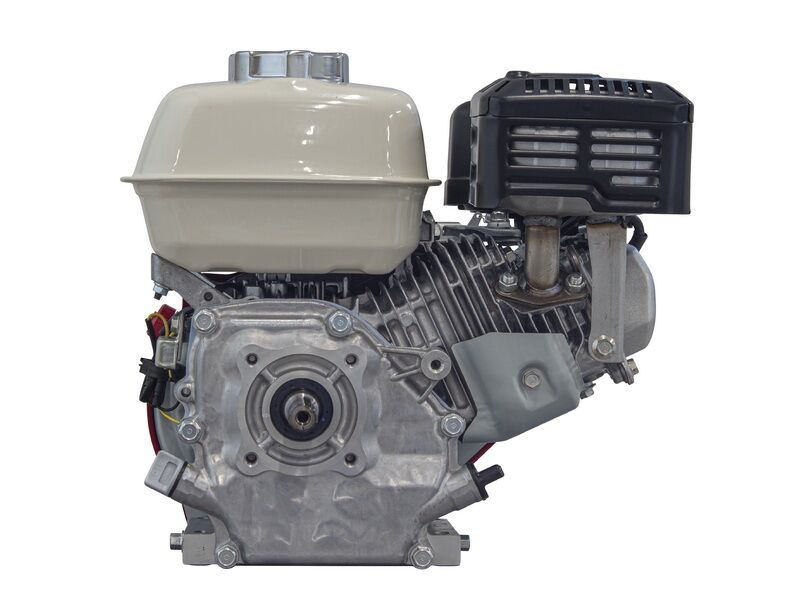

Honda GX200 QX4 Petrol Engine 6.5HP Recoil Start

  • 6.5 Horse power
  • 3/4 ” Crank Shaft

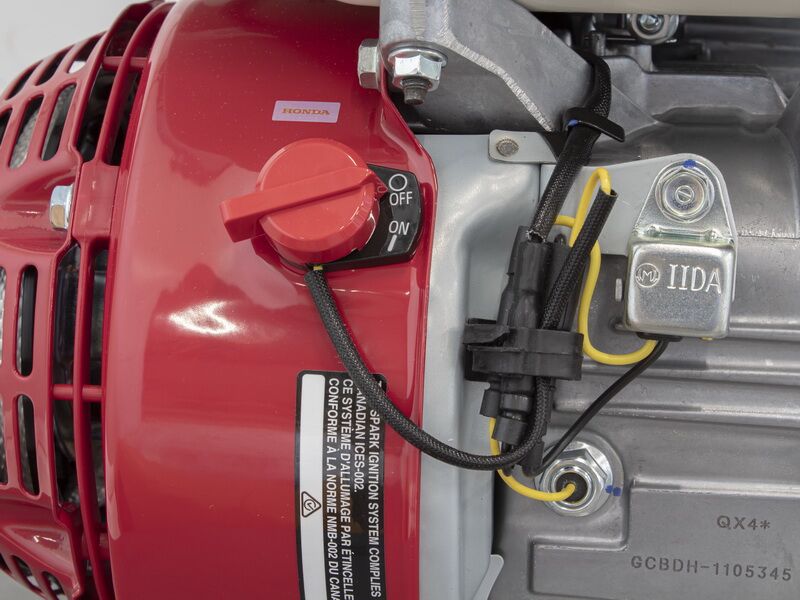

  • Oil alert
  • Cast iron sleeve
  • Recoil start

 395.00

SKU ER003-GX200
Add to wishlist Add to compare

Description

QX4 – 3/4 ” Crank Shaft, Recoil Start, Oil Alert

Why choose this engine?

The Honda GX200 engine is ideal for heavy duty applications such as industrial equipment, construction equipment, tillers, generators, welders, water pumps, and loads more.

Being a 4-stroke engine, it meets the worlds most stringent environmental legislation and emits very few emissions, has low fuel and oil consumption and reduced vibration and noise levels.

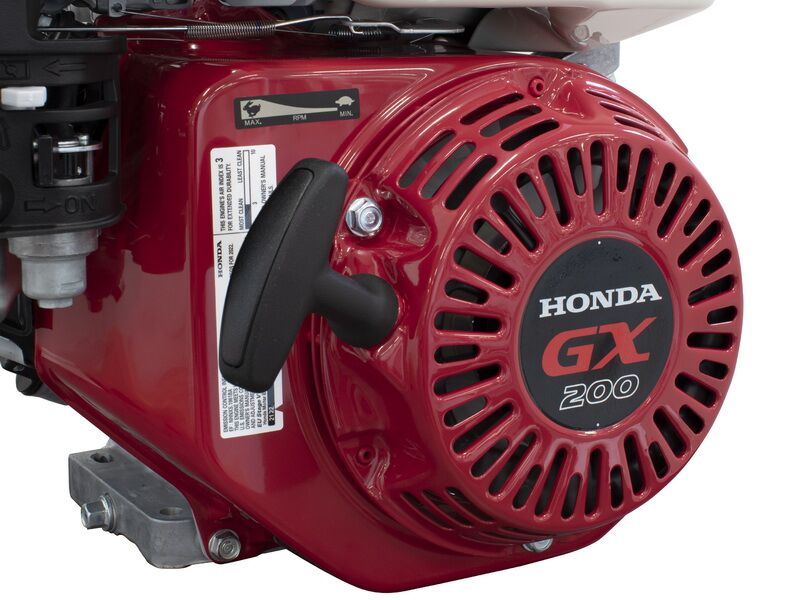

The GX200 has easy starting with an automatic decompression system and an easy to grip soft recoil starter handle.

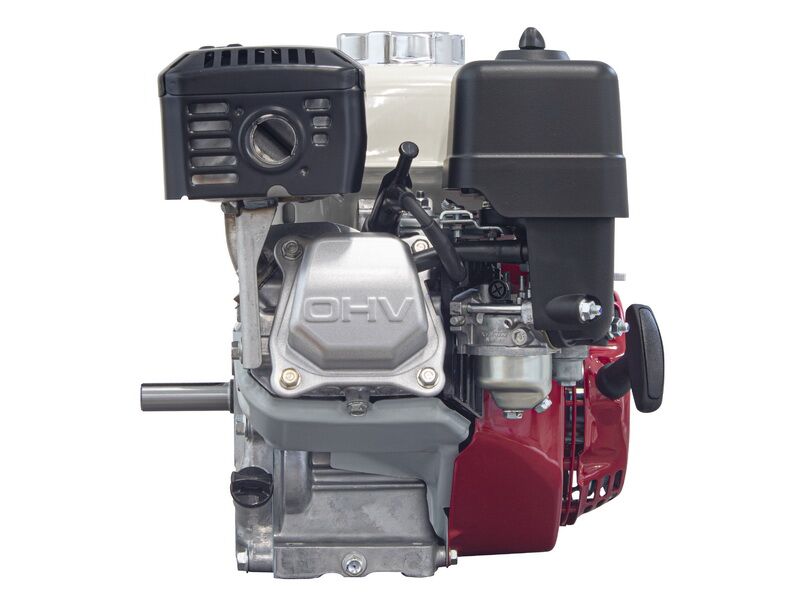

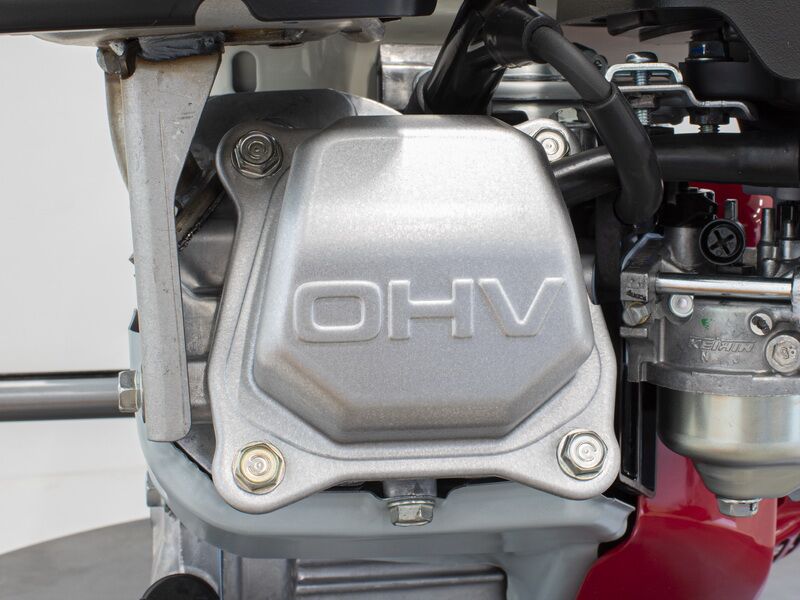

With its OHV design, it enhances combustion efficiency and has a high power-to-displacement ratio. With its compact design and perfectly matching auxiliary components enable the engines to be mounted in an extensive range of equipment.

Honda engines are designed for versatility and simple installation, including several output shaft variations, reduction gearboxes, optional equipment and mounting flanges which match industry standards.

Specification

Weight 16 kg
Dimensions 31.3 × 37.6 × 33.5 cm
Power Source

Petrol

Power Details

Air cooled 4-stroke OHV petrol engine, 25° inclined cylinder, horizontal shaft

Cylinder Sleeve Type

Cast iron cylinder sleeve type

Bore x Stroke

68 x 54 mm

Compression

8.5 : 1

Max Power Output

4.8 Kw (6.5 HP) / 3600 rpm

Max Torque

13.2 Nm / 1.35 Kgm / 2500 rpm

Ignition System

Transistorised

Starting Method

Recoil

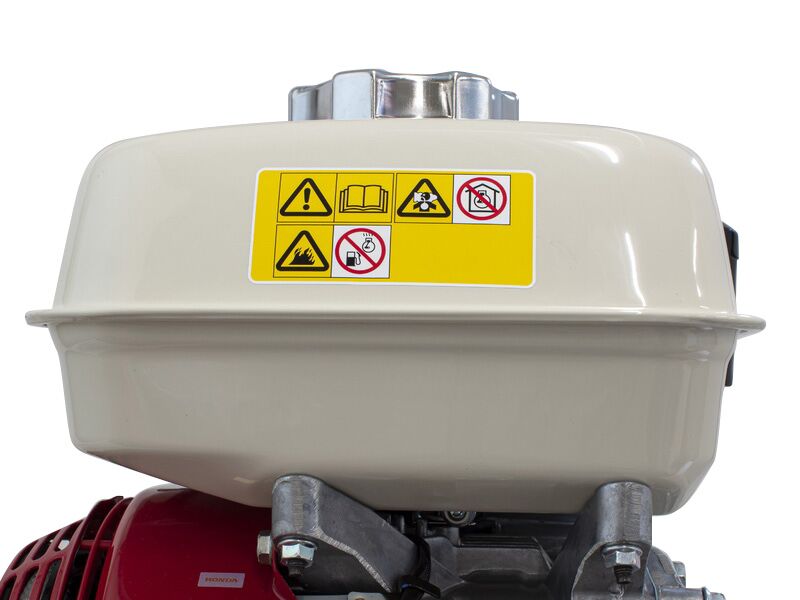

Fuel tank Capacity

3.6 litres

Specific Fuel Cons.

313 g/kW.hr – 230 g/HP.hr

Engine Oil Capacity

0.6 litres
