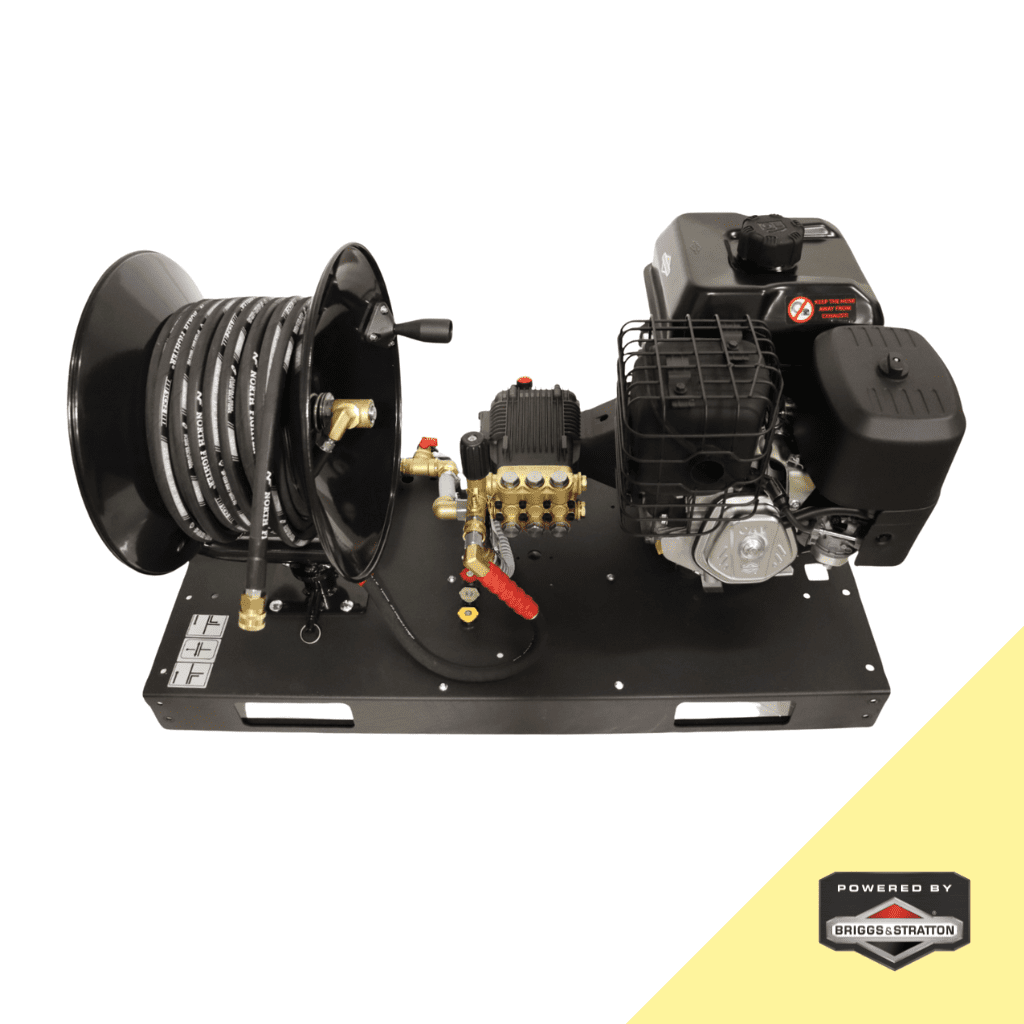

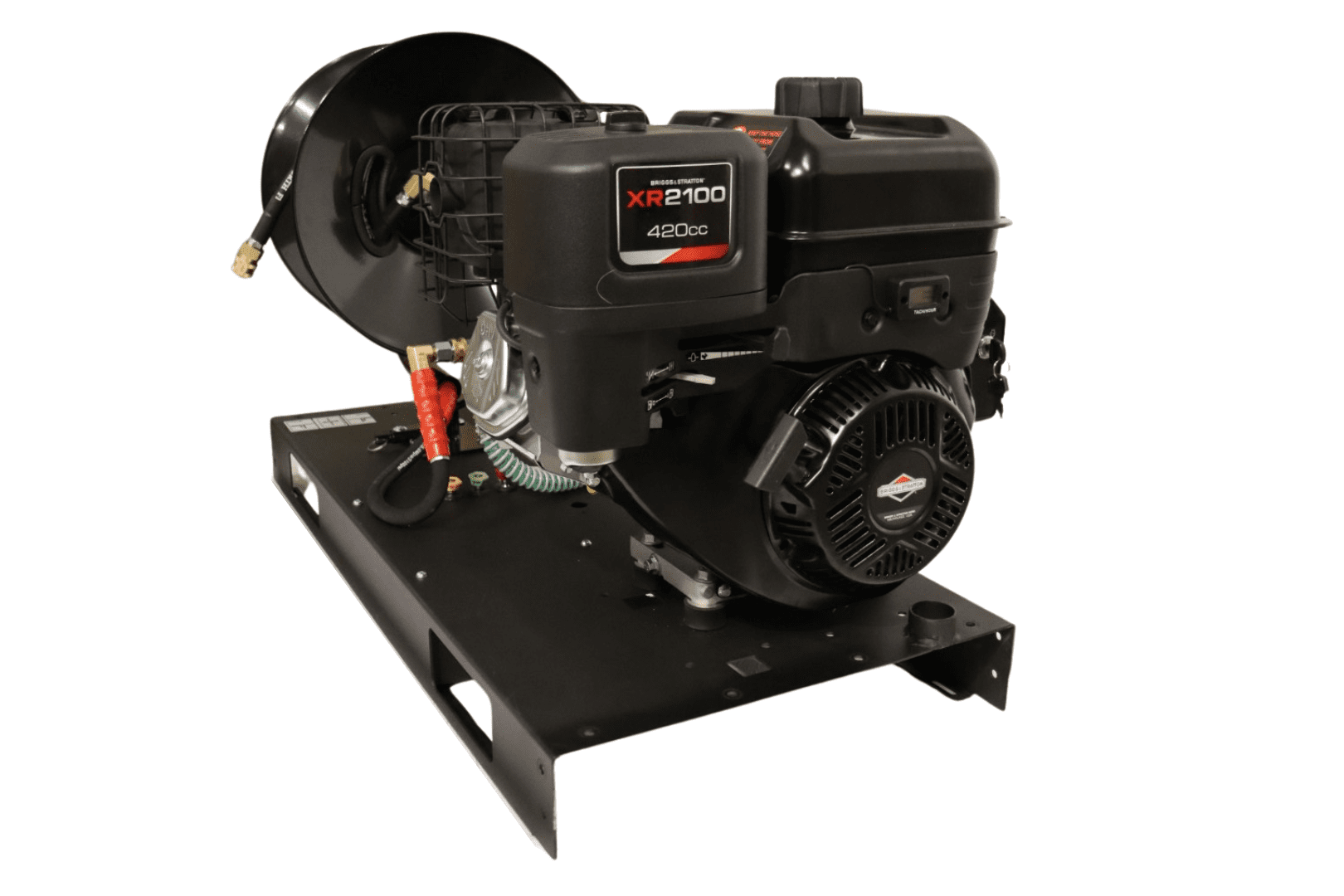

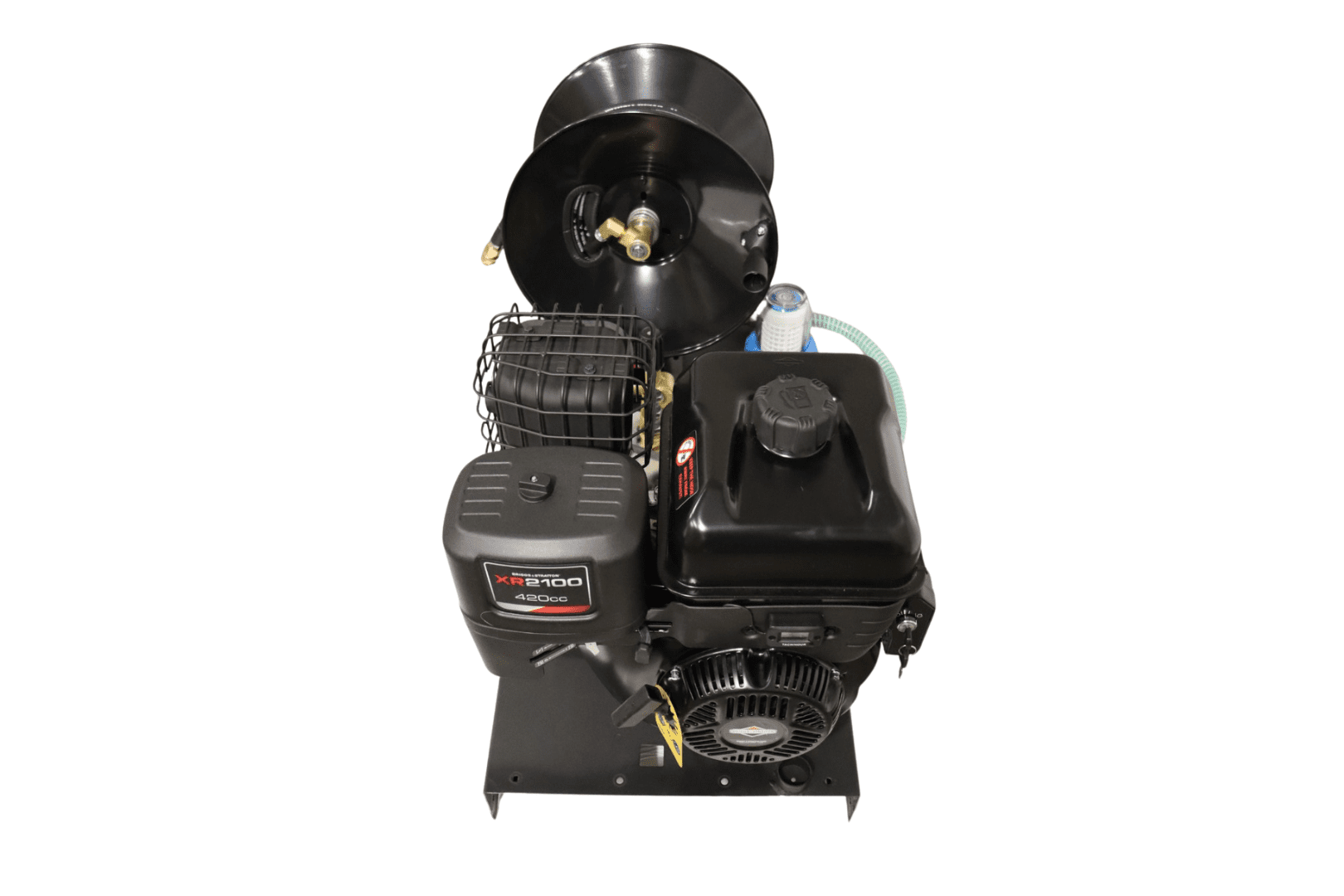

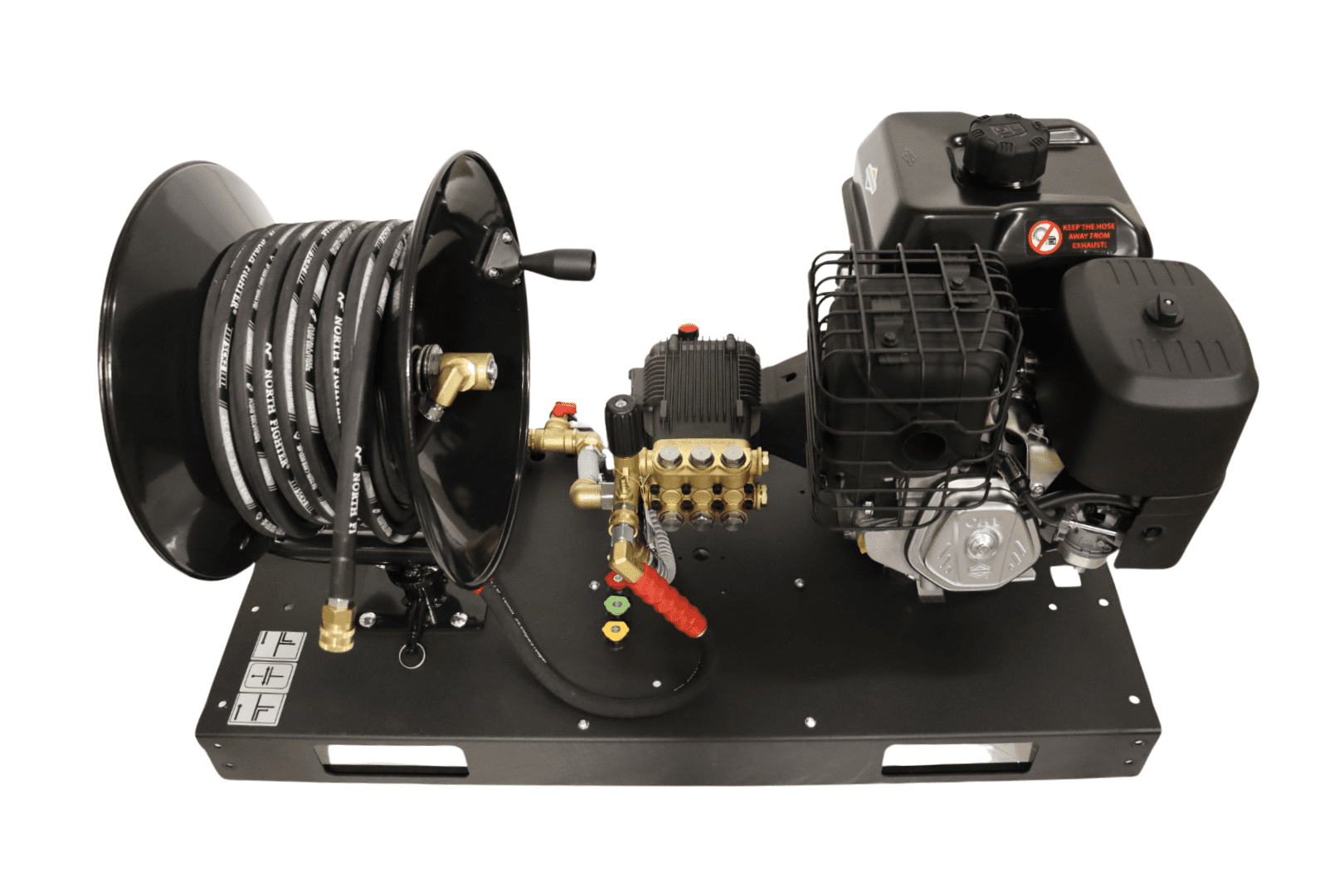

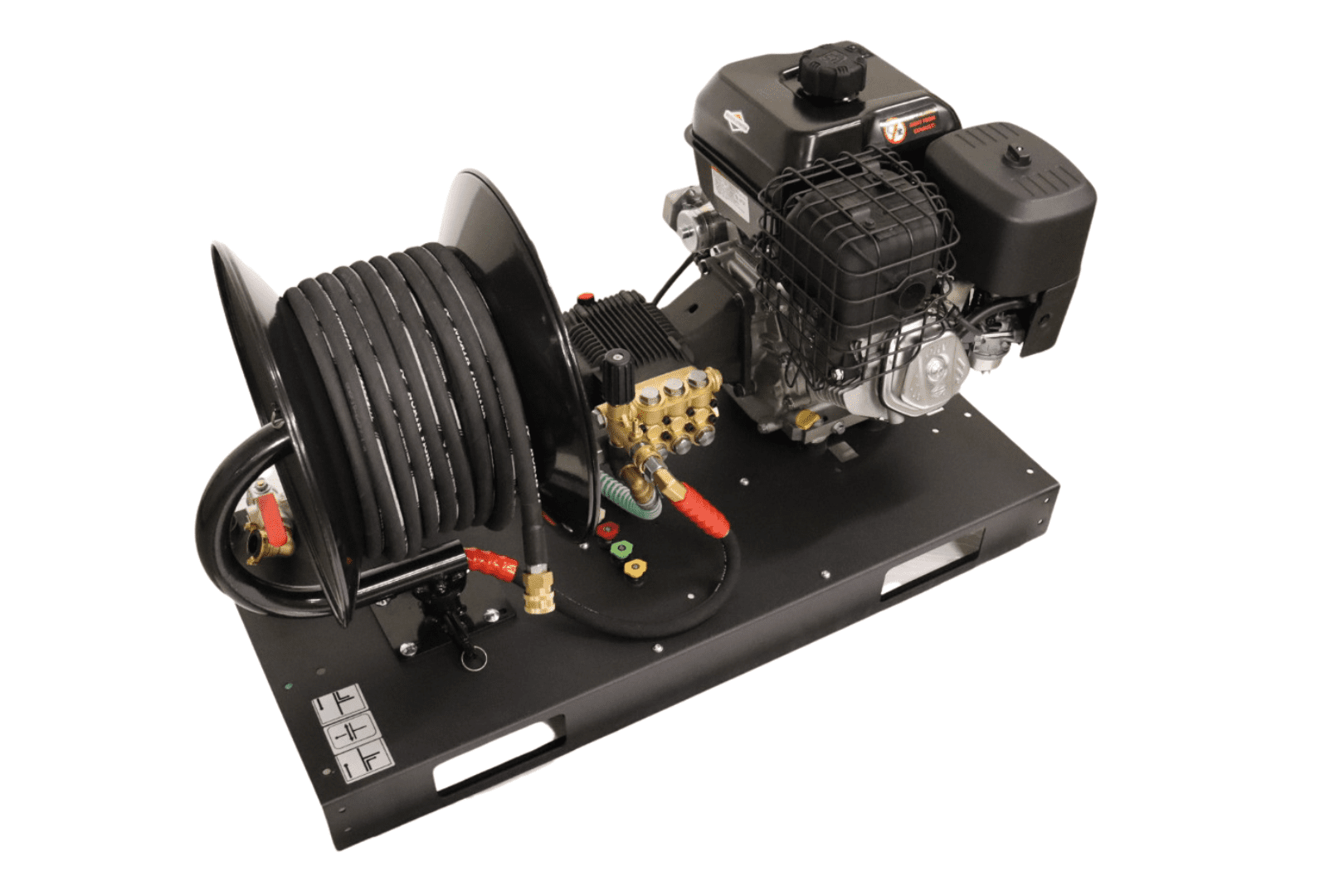

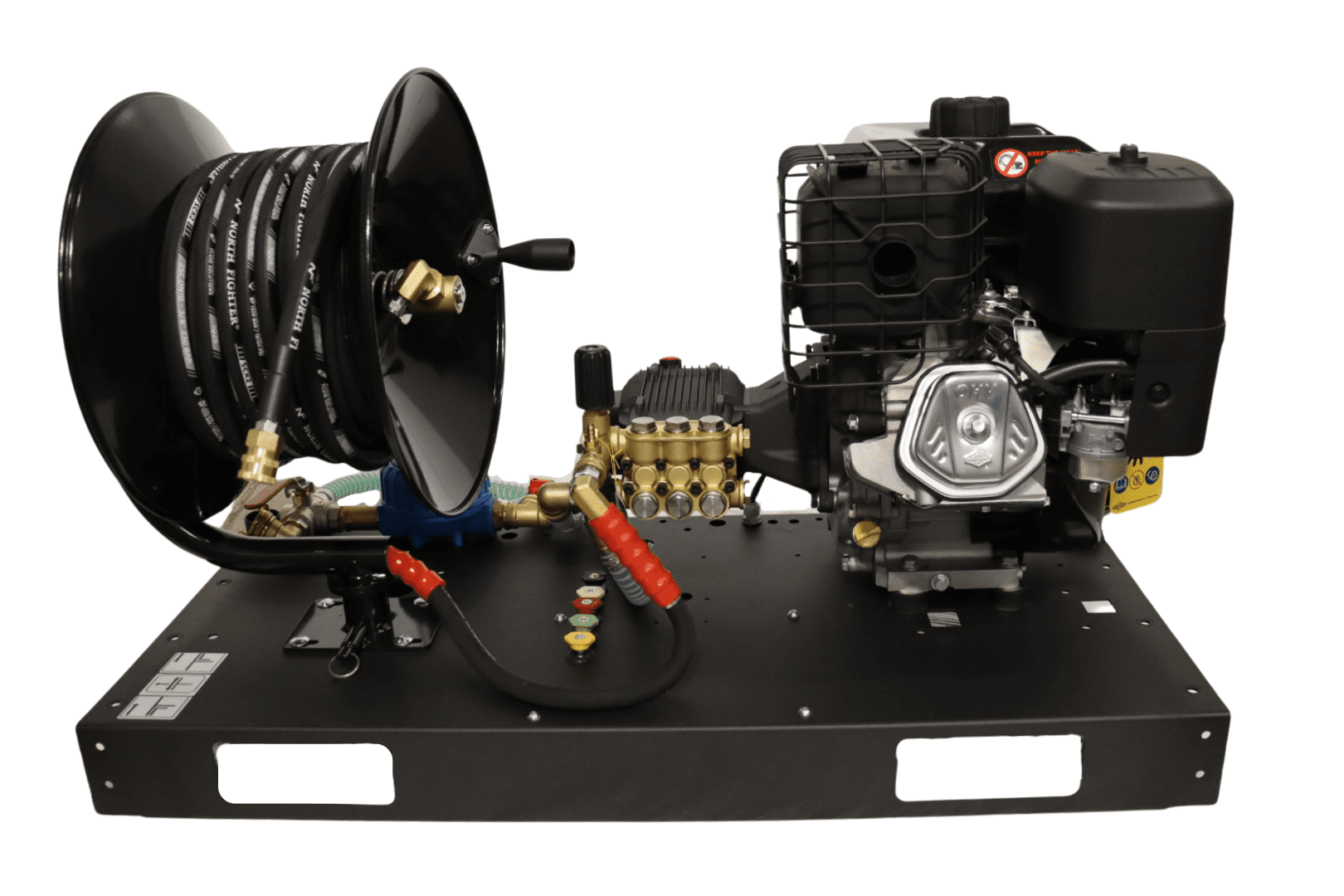

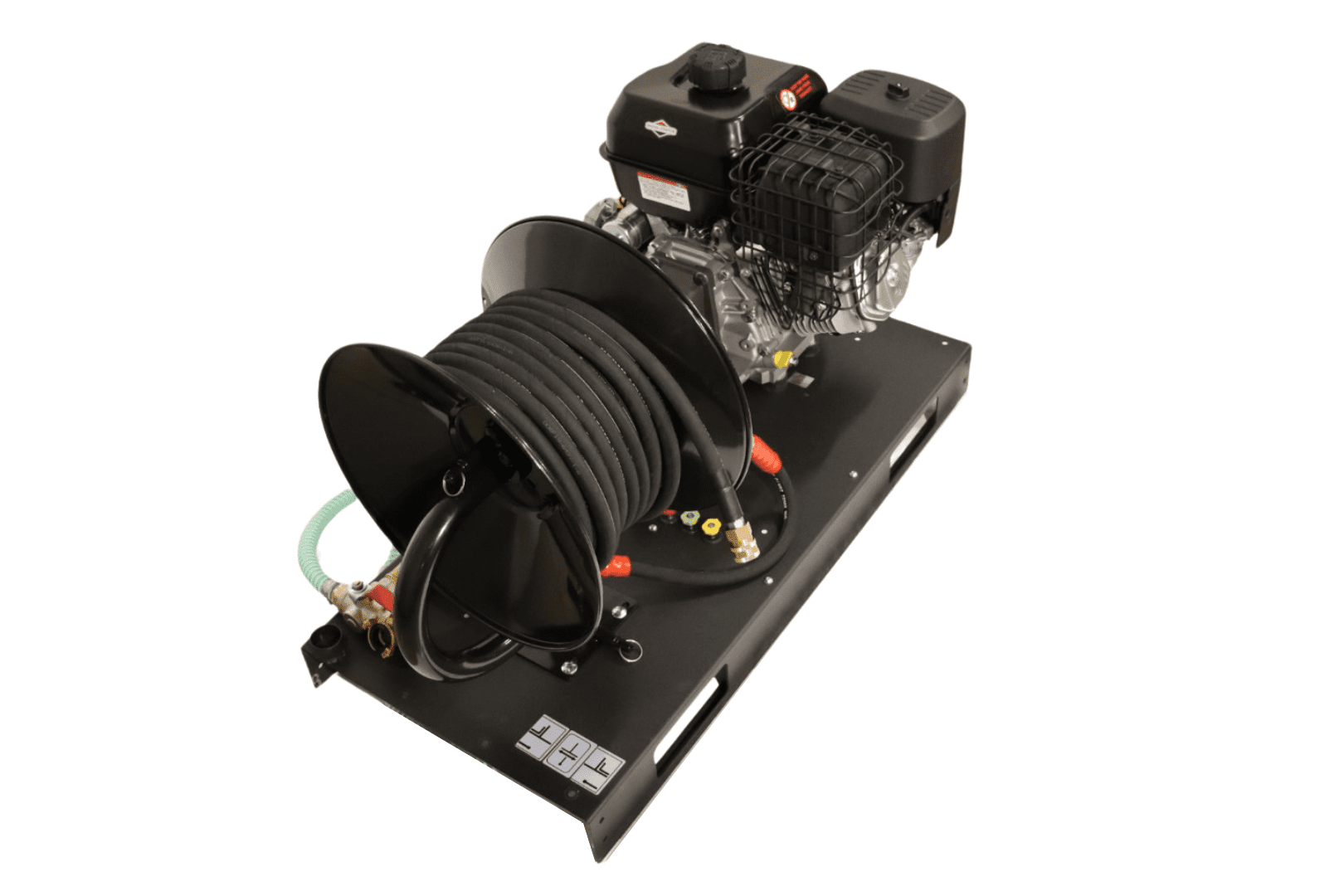

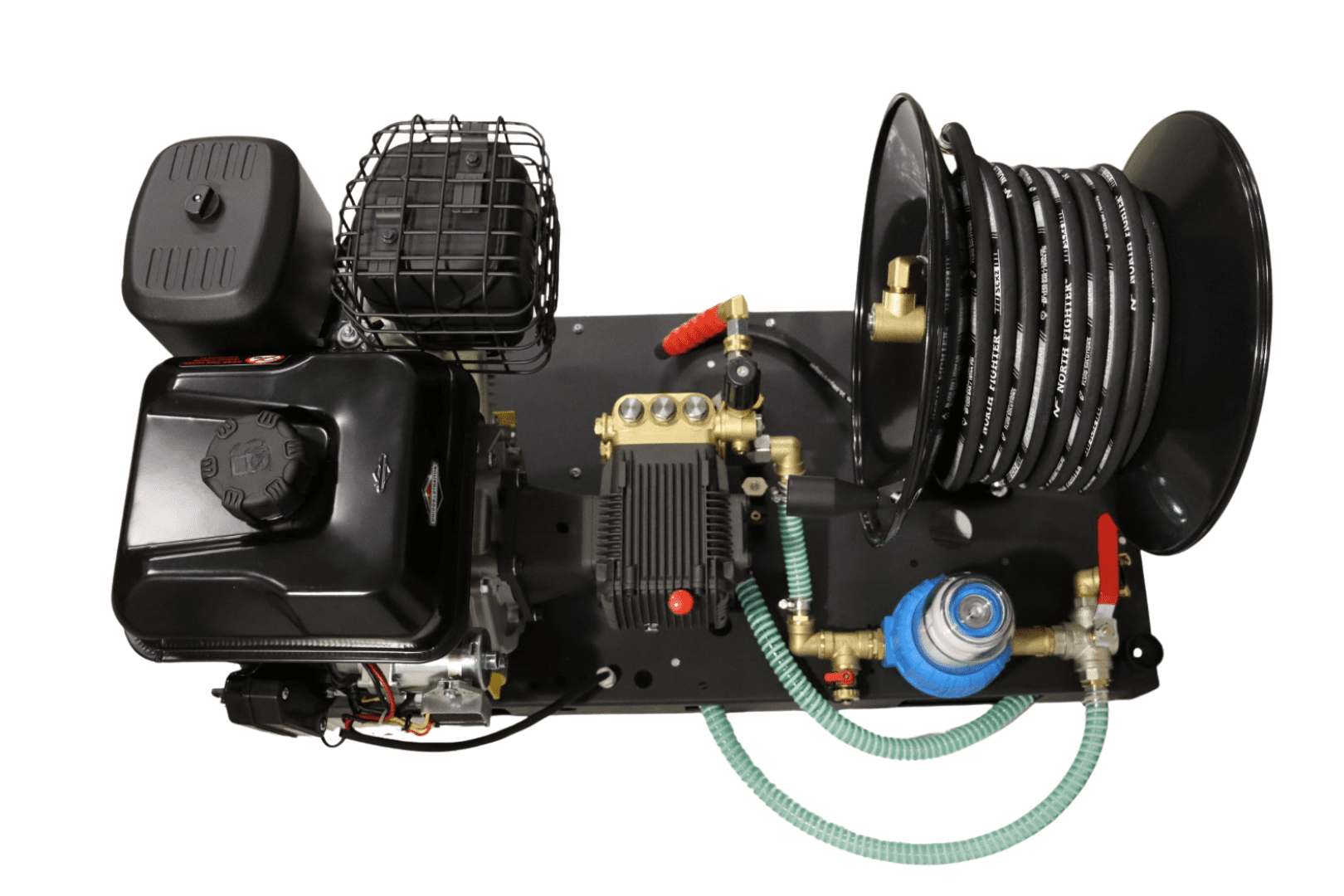

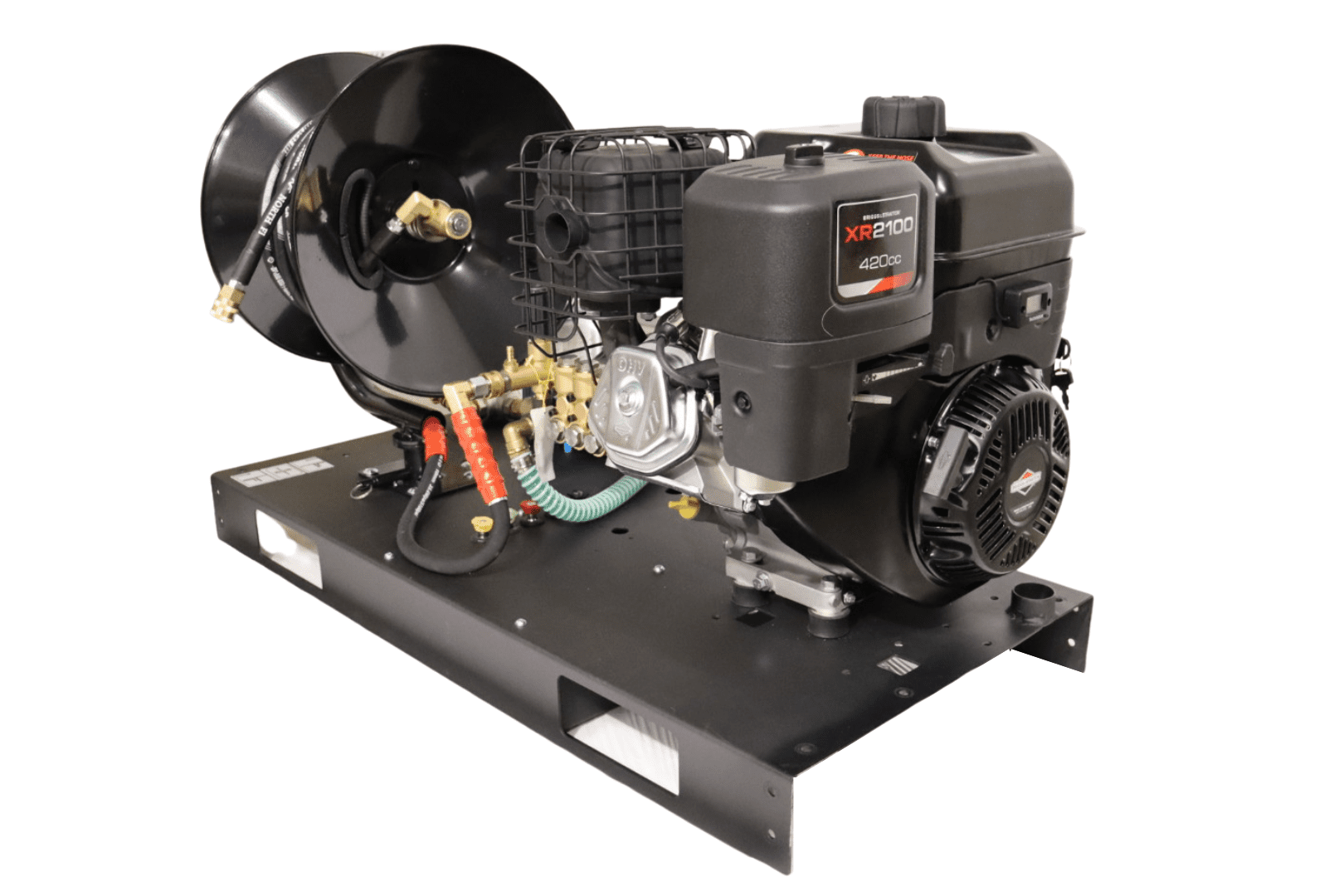

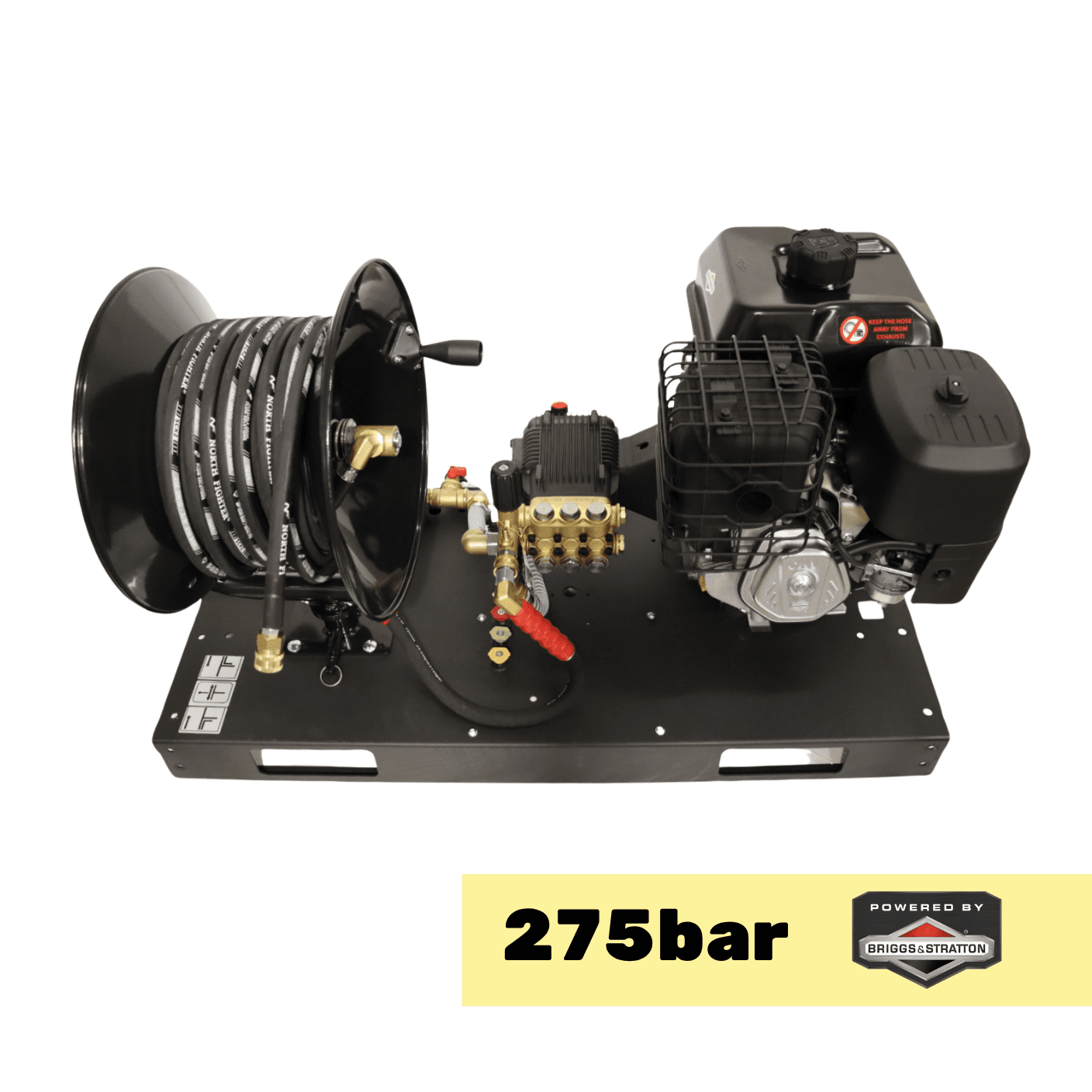

Motor Platform with Hose Reel GE1013BD, Briggs & Stratton XR2100, 4000 psi / 275 bar

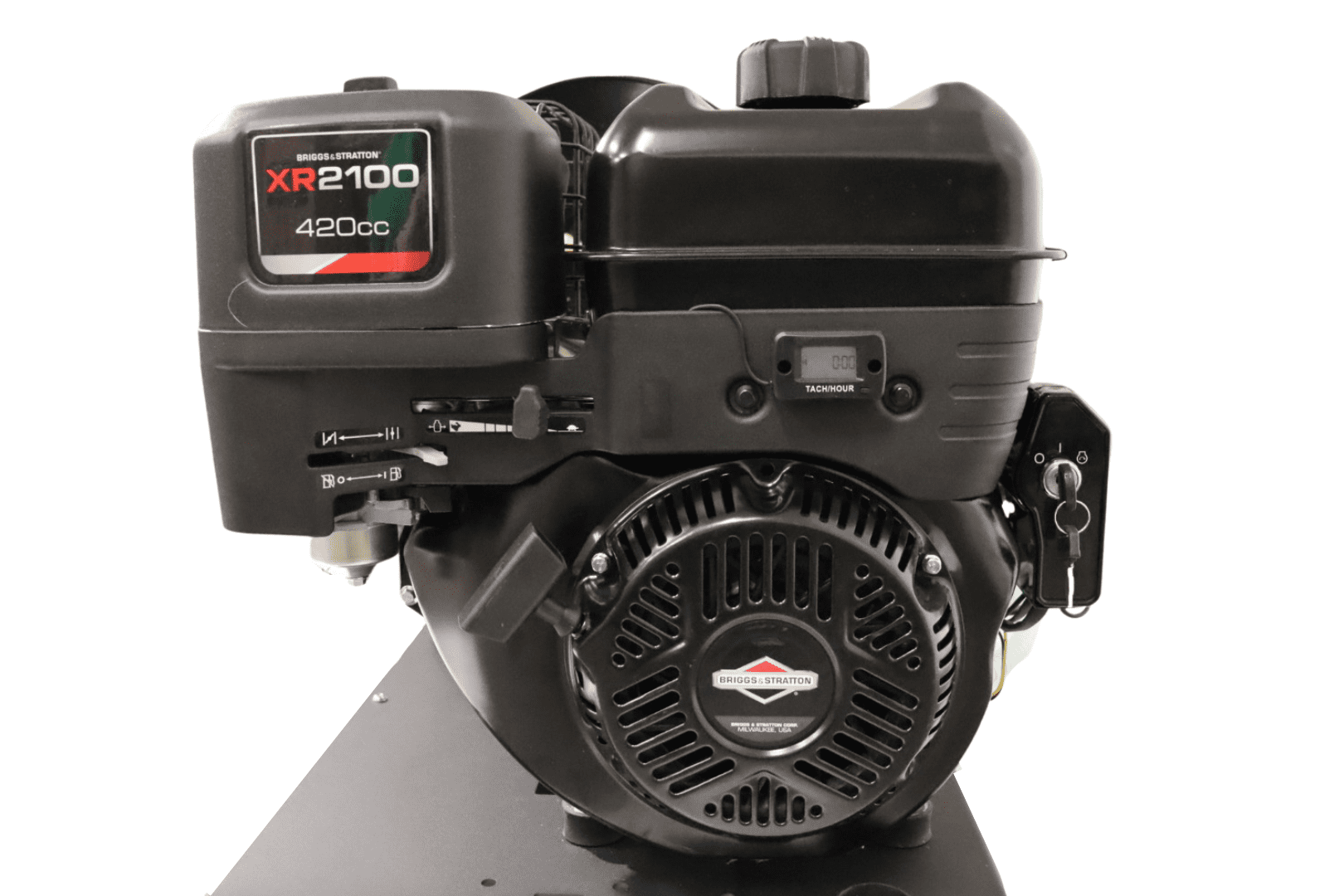

The GE1013BD motor platform is a reliable base for high-pressure cleaners and professional equipment that require high pressure, stable performance, and long service life. It is built on a robust Briggs & Stratton XR2100 engine (420 cm³), providing smooth operation, low vibration, and easy maintenance.

KEY FEATURES:

  • Powerful 420 cm³ Briggs & Stratton XR2100 engine

  • Brass radial pump with stable performance and long lifespan

  • Max pressure 4000 psi / 275 bar, flow rate 18 l/min

  • Electric and manual start options

  • 20 m hose and a complete set of nozzles included

  • Easy pressure adjustment



 2,899.00

In stock
SKU 8588009225843
In stock
Add to wishlist Add to compare

Description

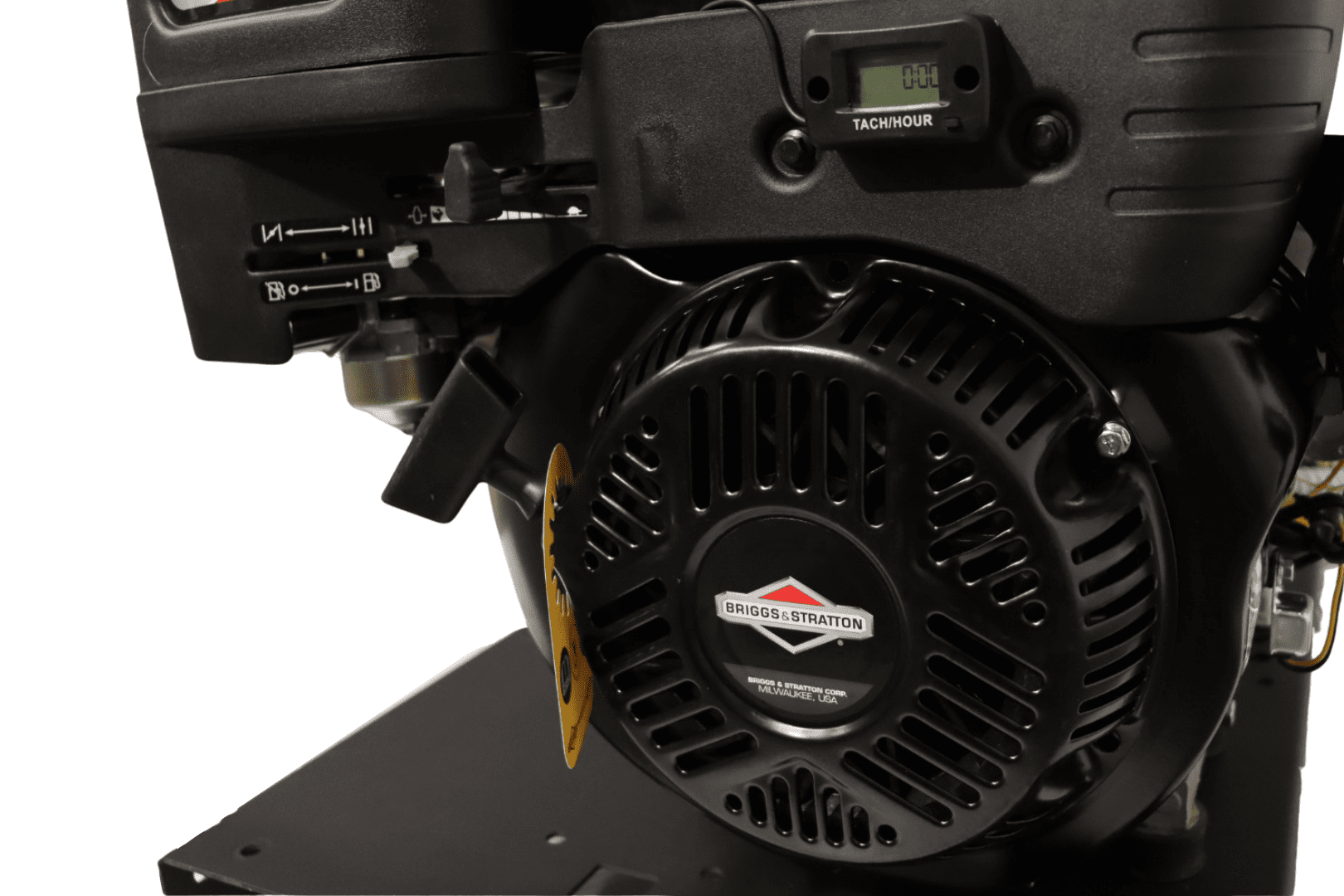

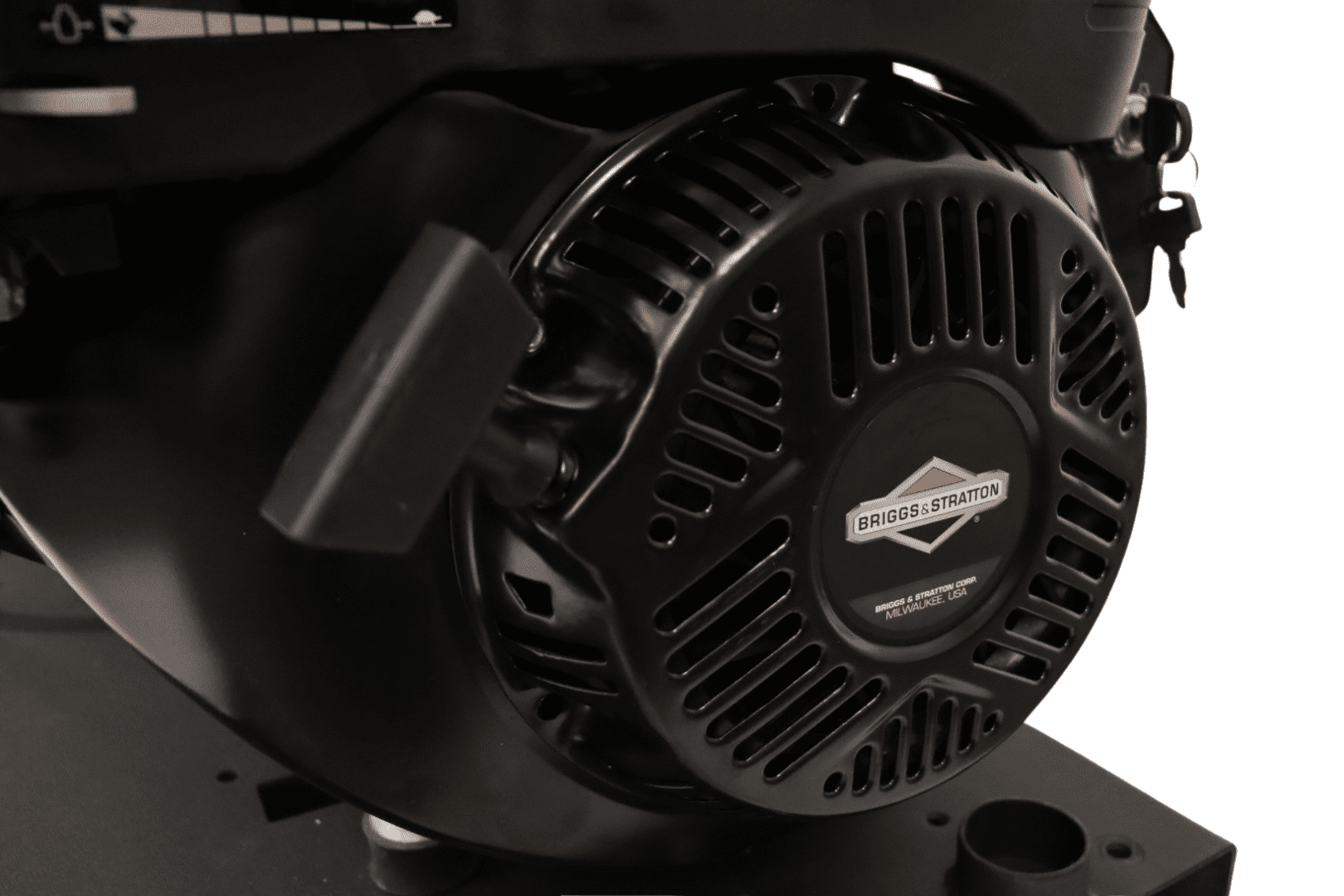

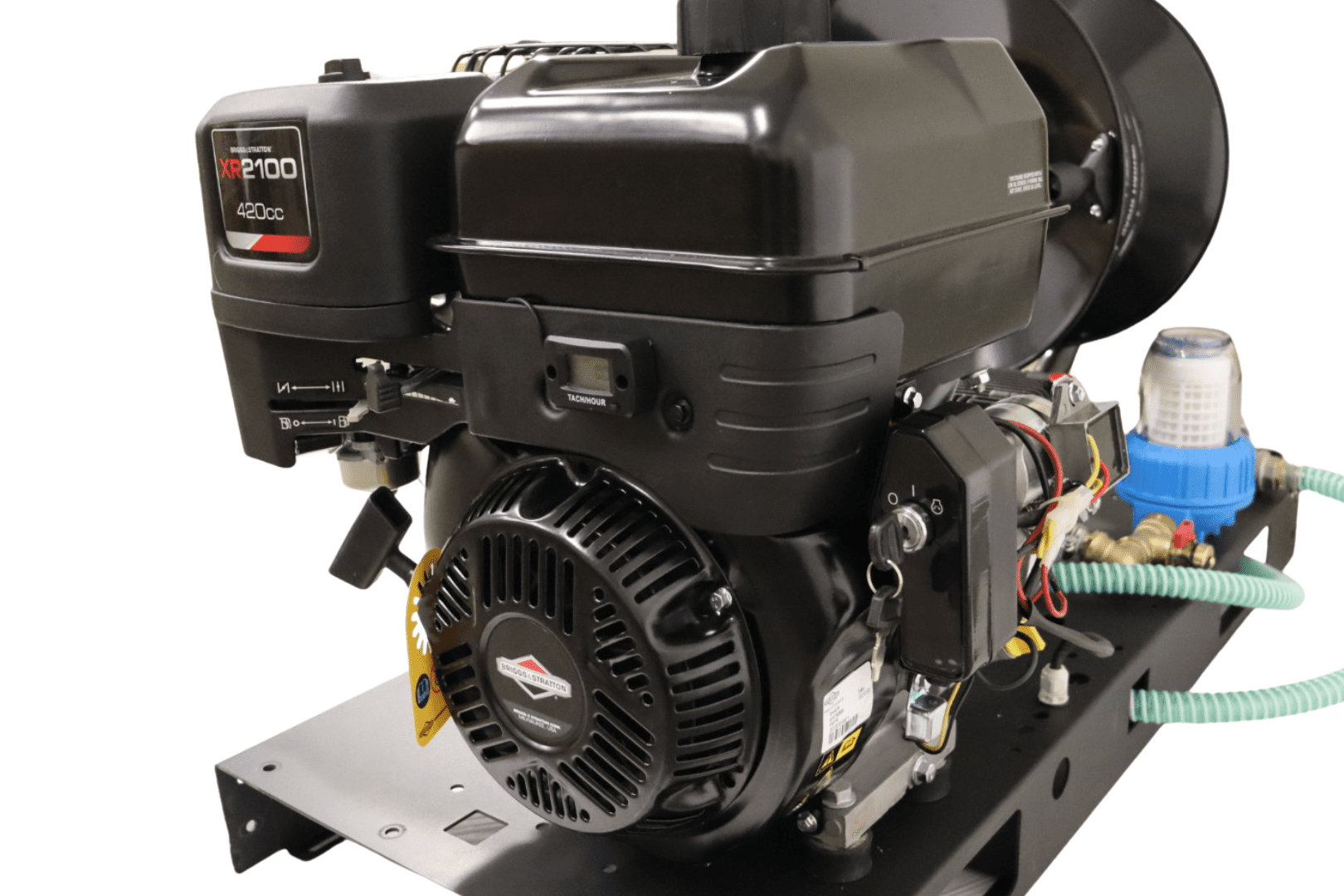

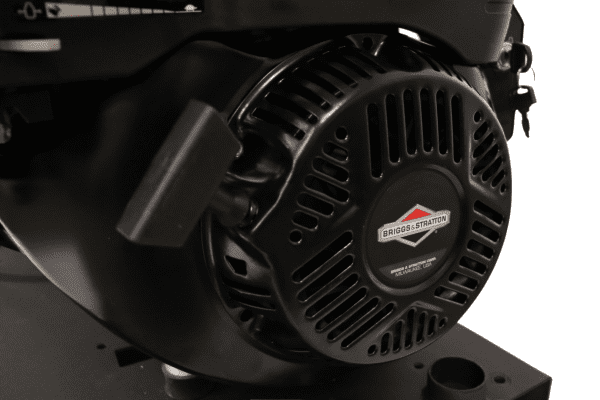

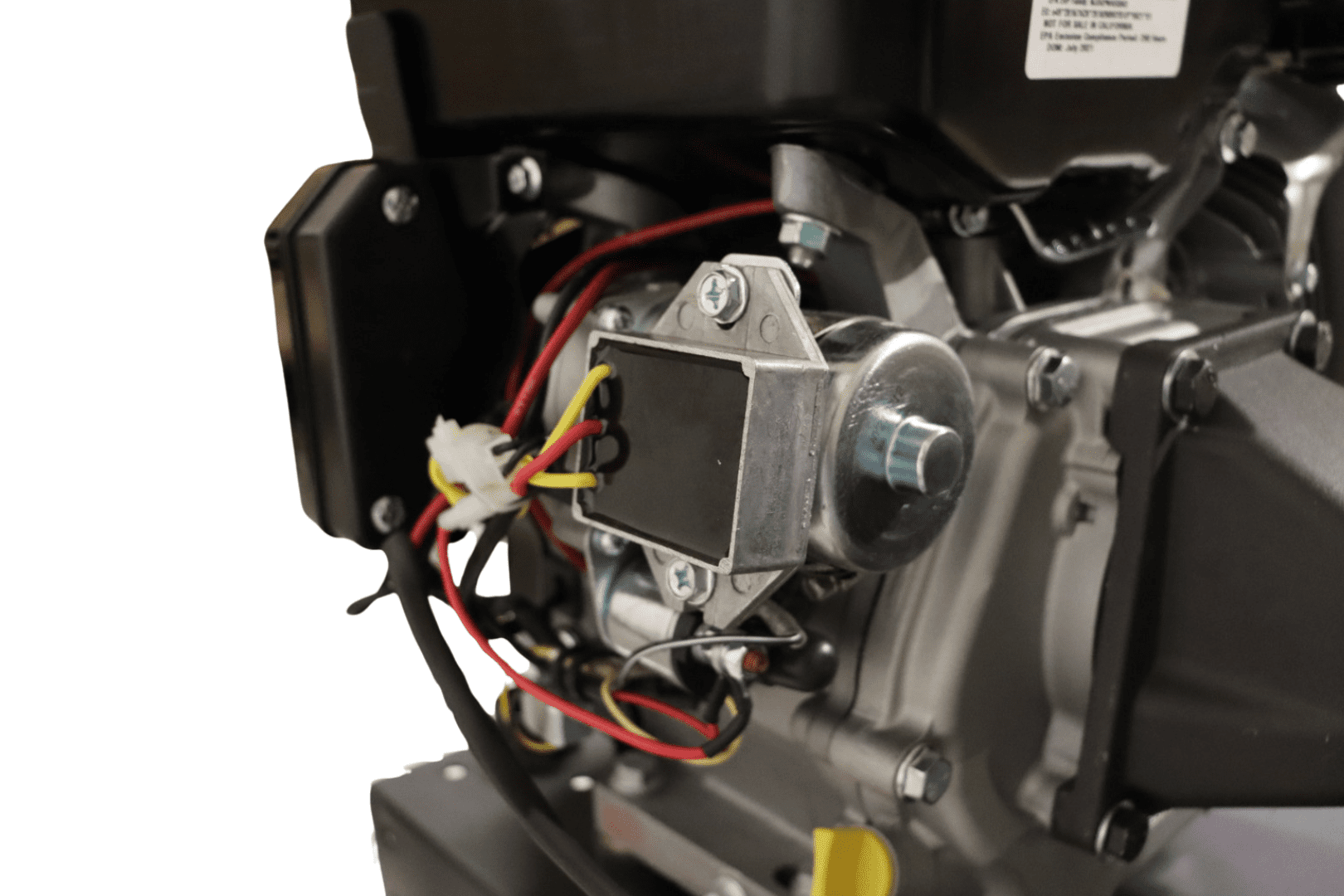

The engine features a horizontal shaft, OHV design, mechanical choke, throttle control, and a low-oil shutdown safety system. It can be started manually (recoil) or electrically, providing maximum flexibility in the field.

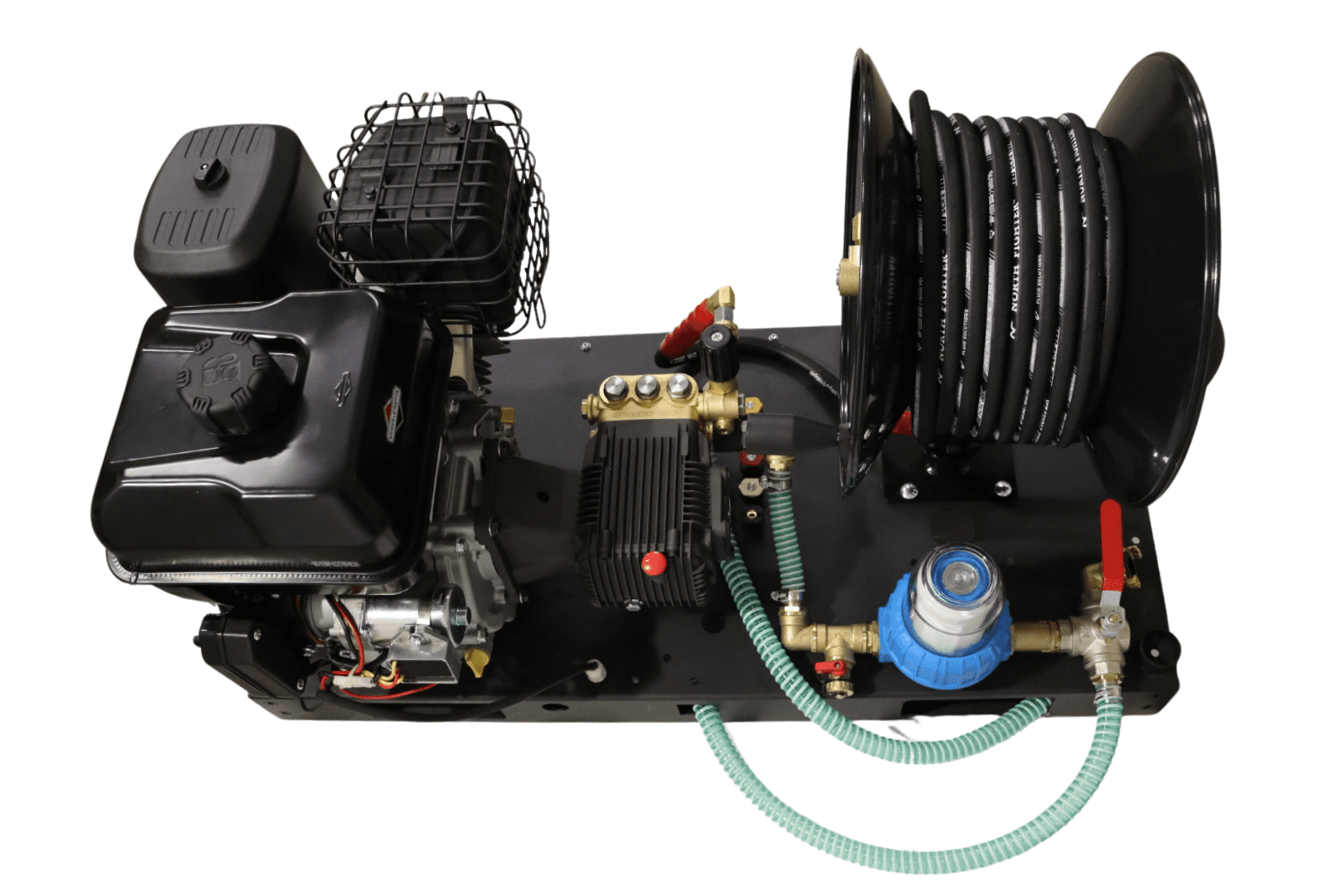

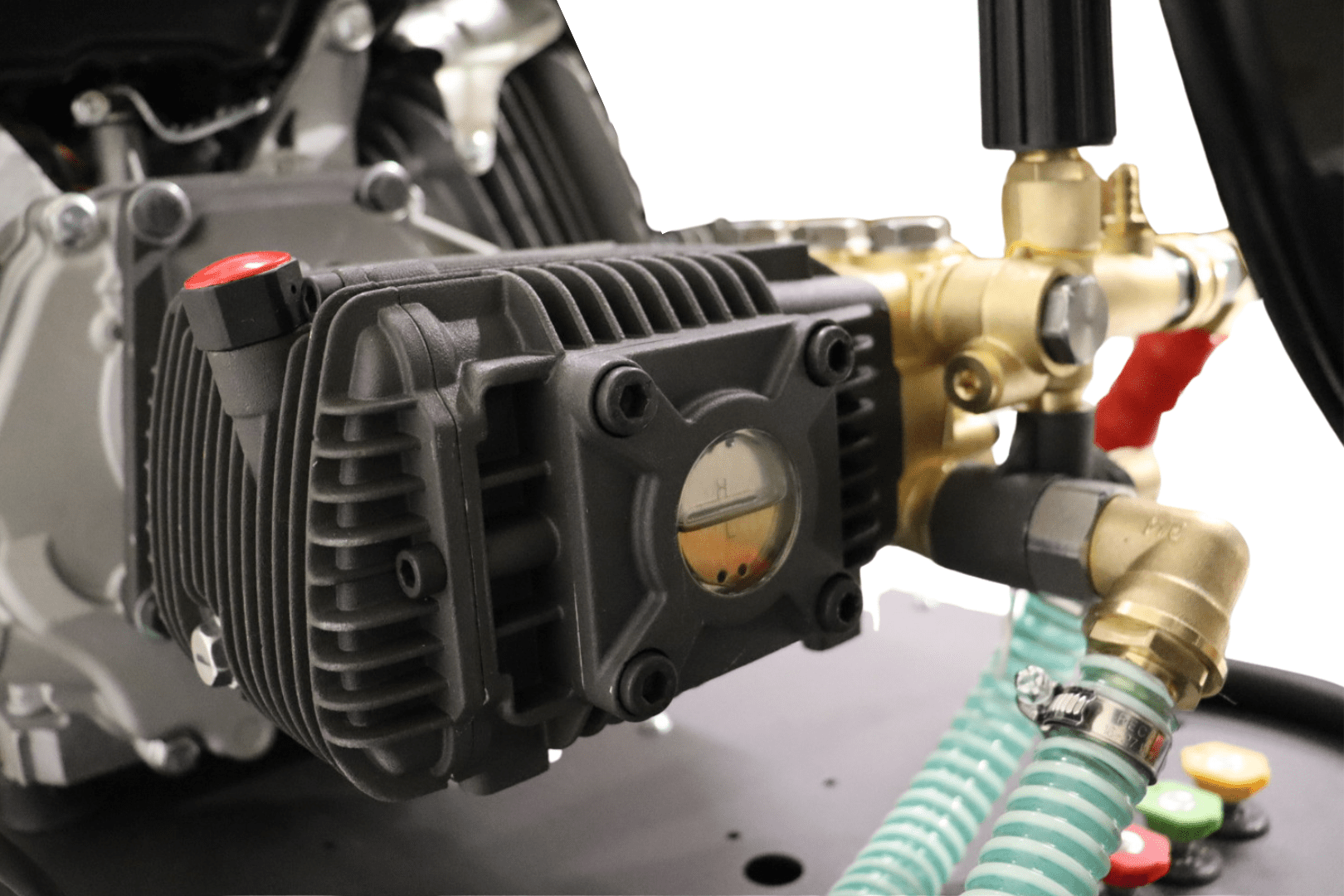

The platform comes with a professional radial brass pump 3WZ1510AP, capable of handling working pressure up to 4000 psi / 275 bar, water flow 18 l/min, and water temperatures up to 40 °C. The pump is self-priming and allows pressure adjustment in the range of 80–220 bar.

The platform is equipped with a 20 m hose (3/8″), an ergonomic spray gun, a 40 cm lance, and a full set of nozzles (0°, 15°, 25°, 40°, Soap + O35). All connections use QC quick-connect fittings for fast and easy accessory changes.

Specification

Weight 75 kg
Dimensions 101 × 55 × 55 cm
Max. output pressure

4000psi/ 275bar

Max. water flow (L/min)

18

Engine Producer

Briggs & Stratton XR2100

Volume (cm3)

420

Shaft orientation

Horizontal

Low oil level security system

Yes

Fuel tank volume (L)

6,6

Fuel valve

Yes

Engine oil filling volume (L)

1,1

Throttle regulation

Yes

Choke

Yes / Mechanical

Start up method

Manually / Recoil + Electric

PUMP Model

3WZ1510AP

Type

Radial

Pump head material

Brass

Max. water temperature °C

40

Self priming function

Yes

Pressure regulator

Yes, 80 – 220 bar

HOSE Lenght (m)

20

Diameter (in/mm)

3/8" / 9,5

Max. working pressure (psi/bar)

3800 / 265

Connection type

QC 3/8

Nozzles included

0°,15°,25°,40°,Soap / 035

Gun type

Ergonomic

Gun to Lance connection

M22

Gun to Hose connection

3/8" QC

Lance lenght (cm)

40

Nozzle connection

1/4" QC
