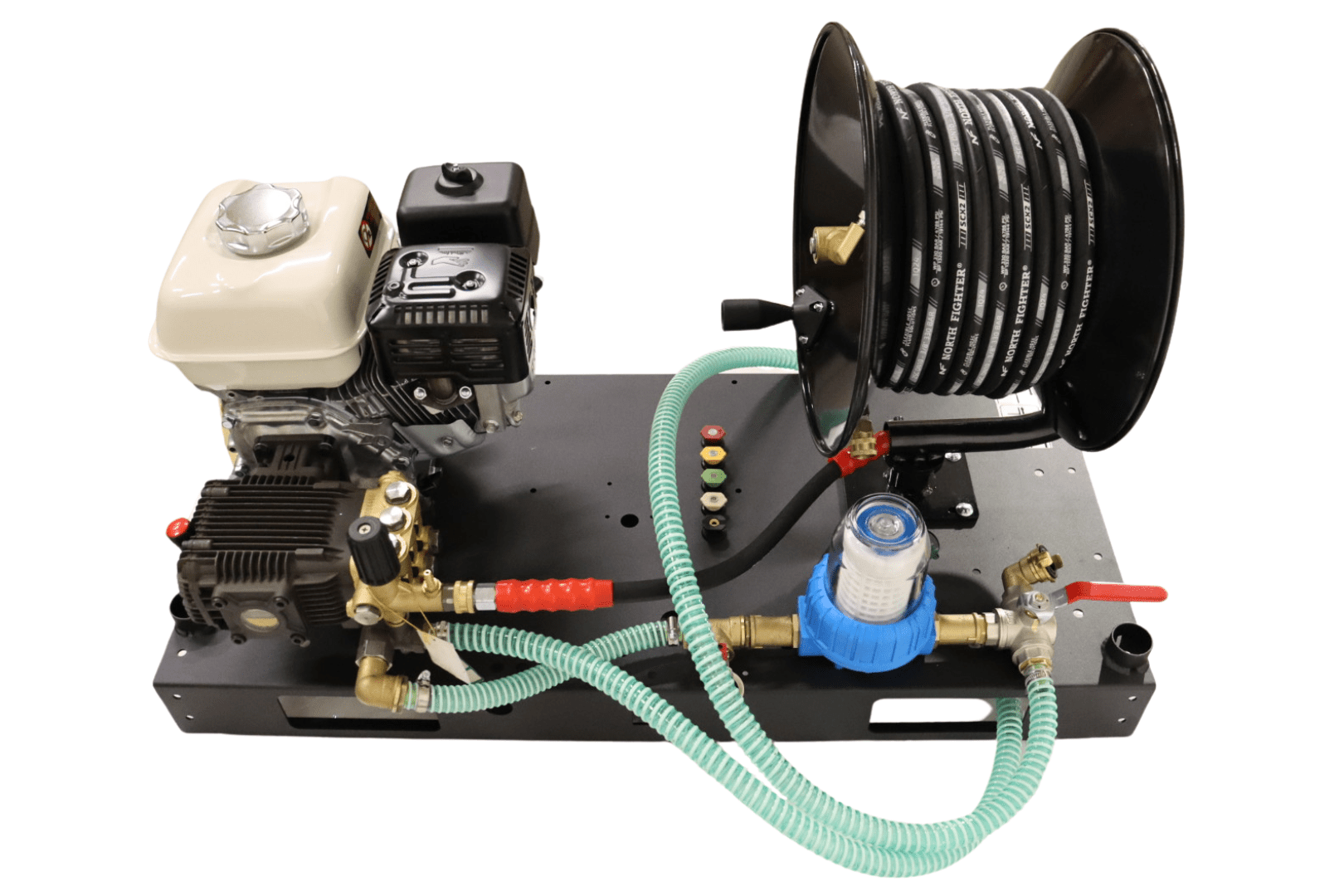

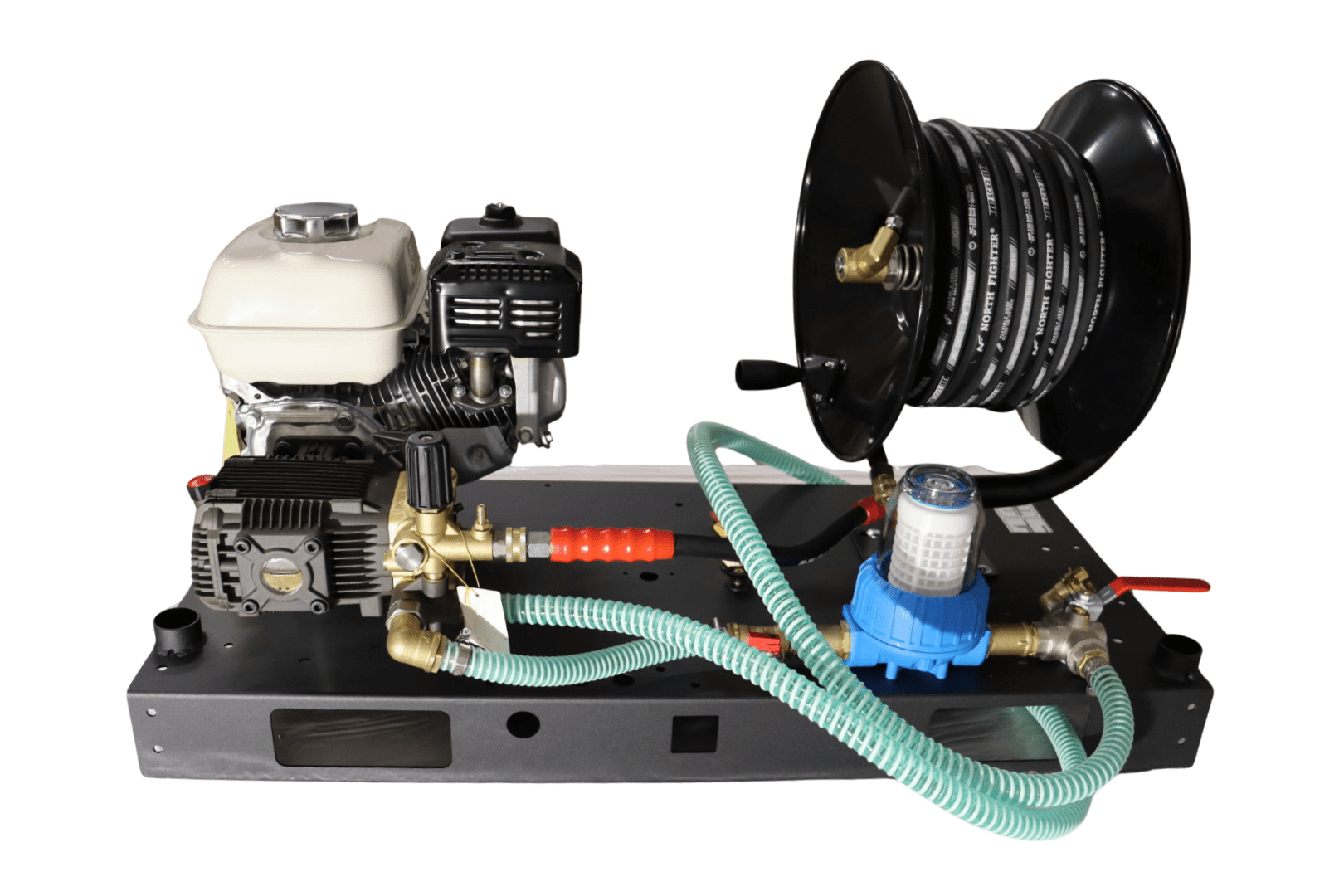

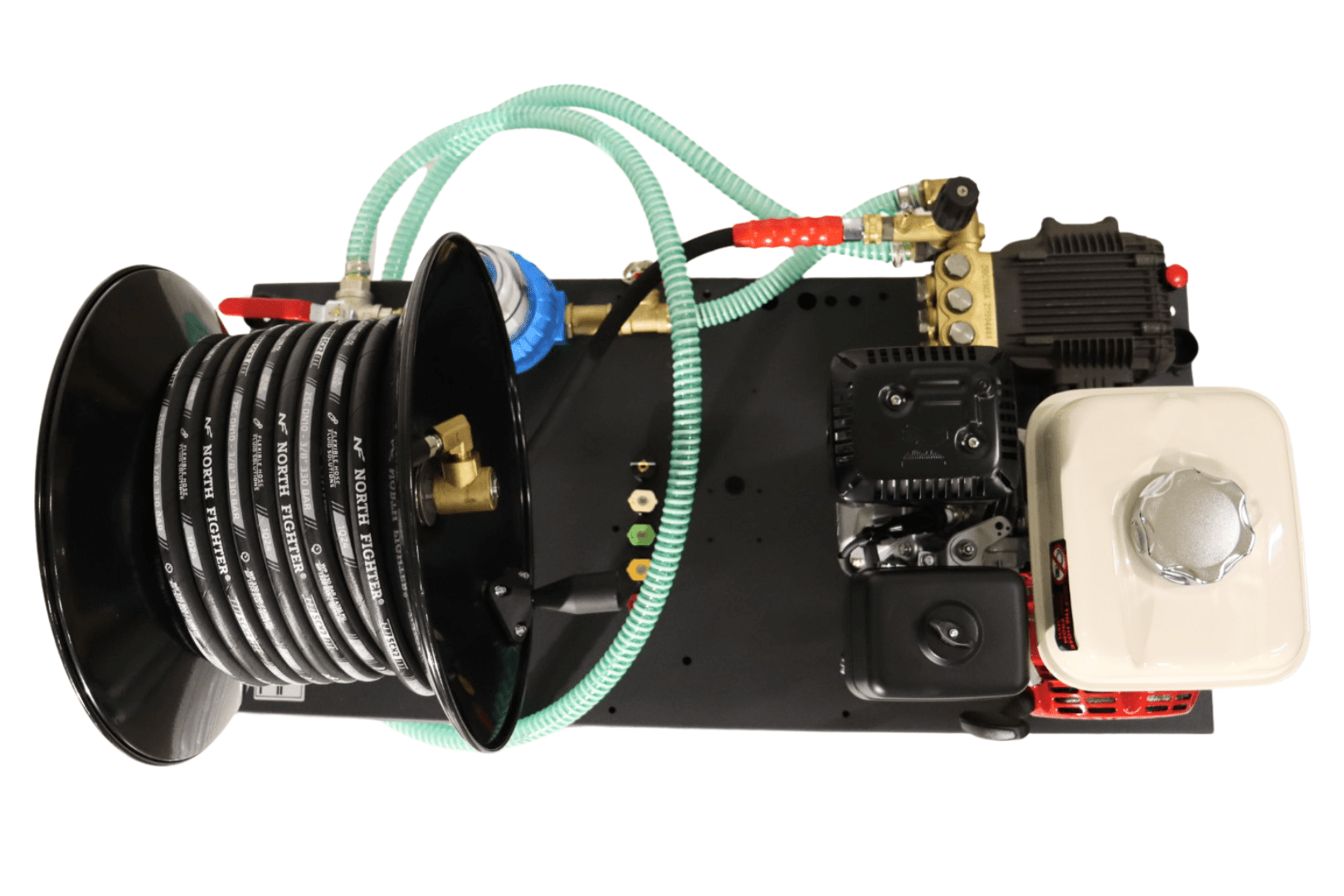

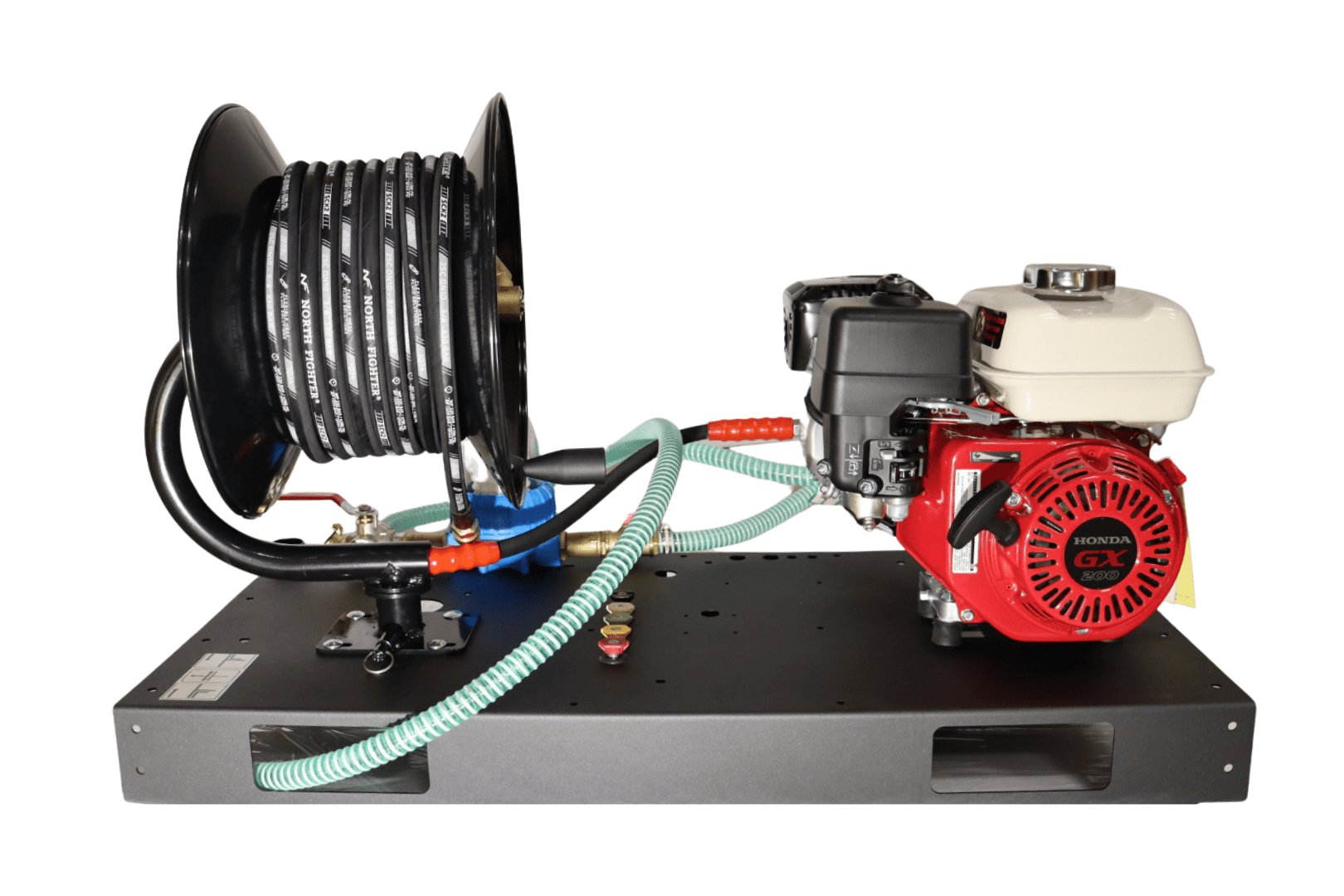

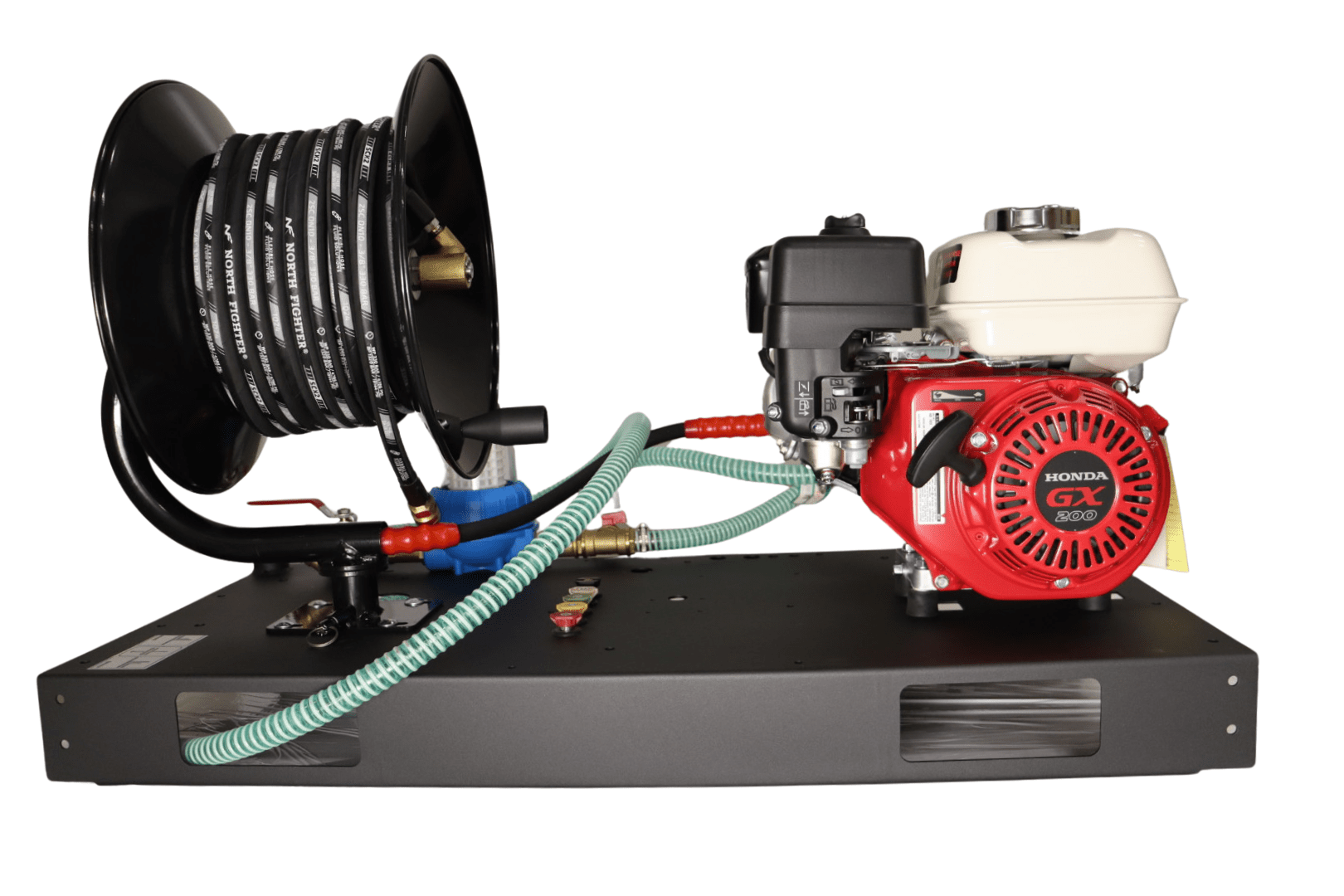

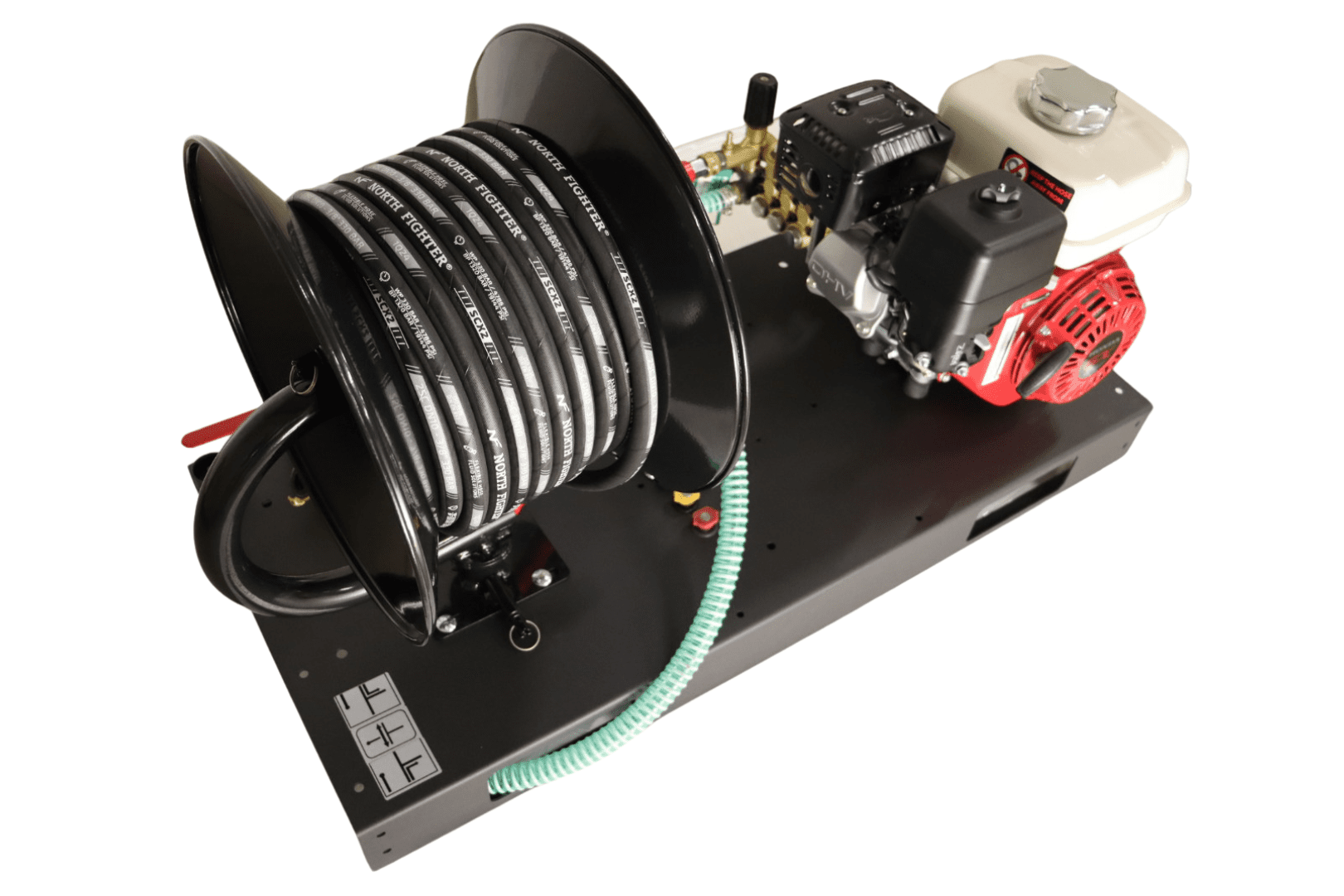

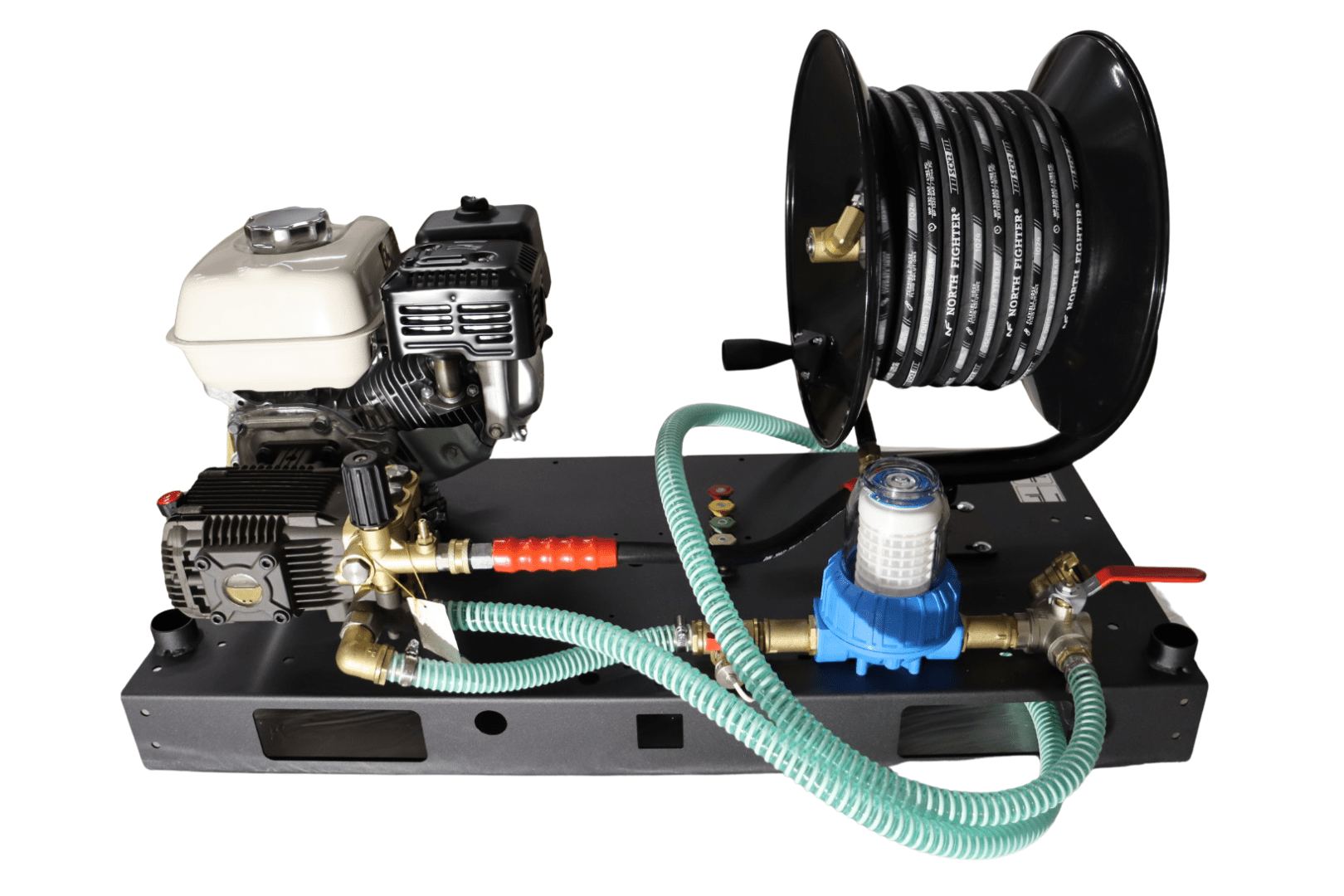

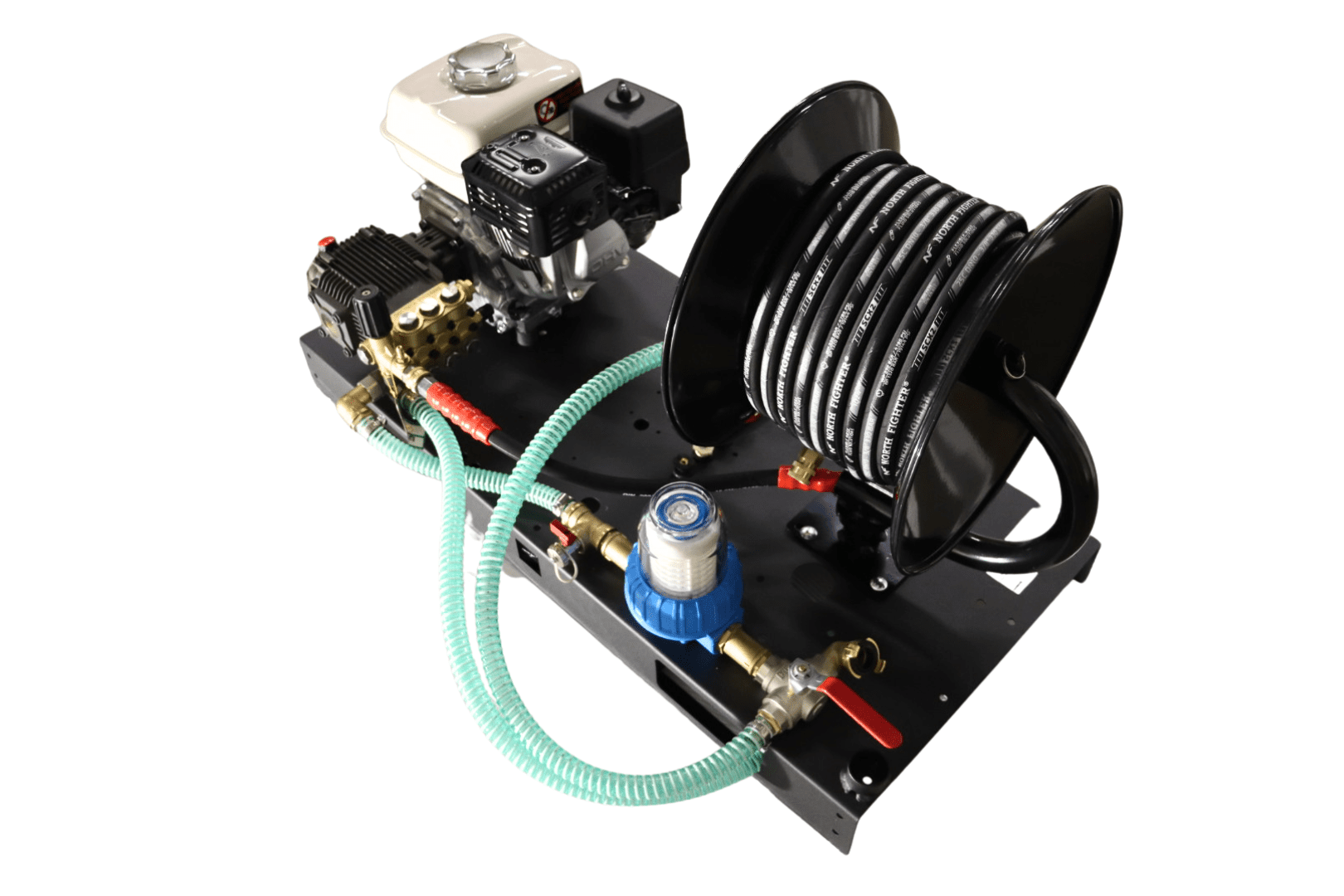

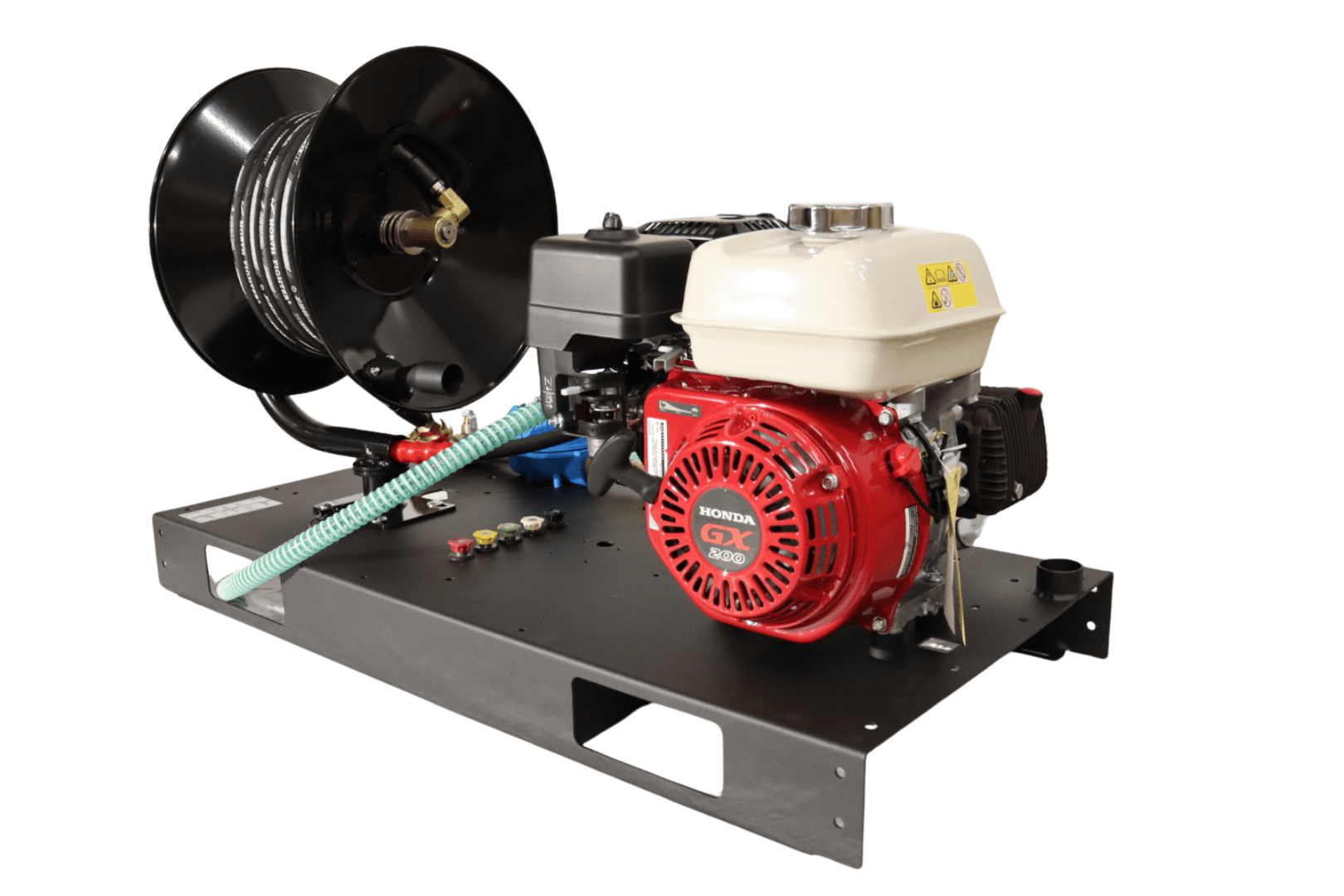

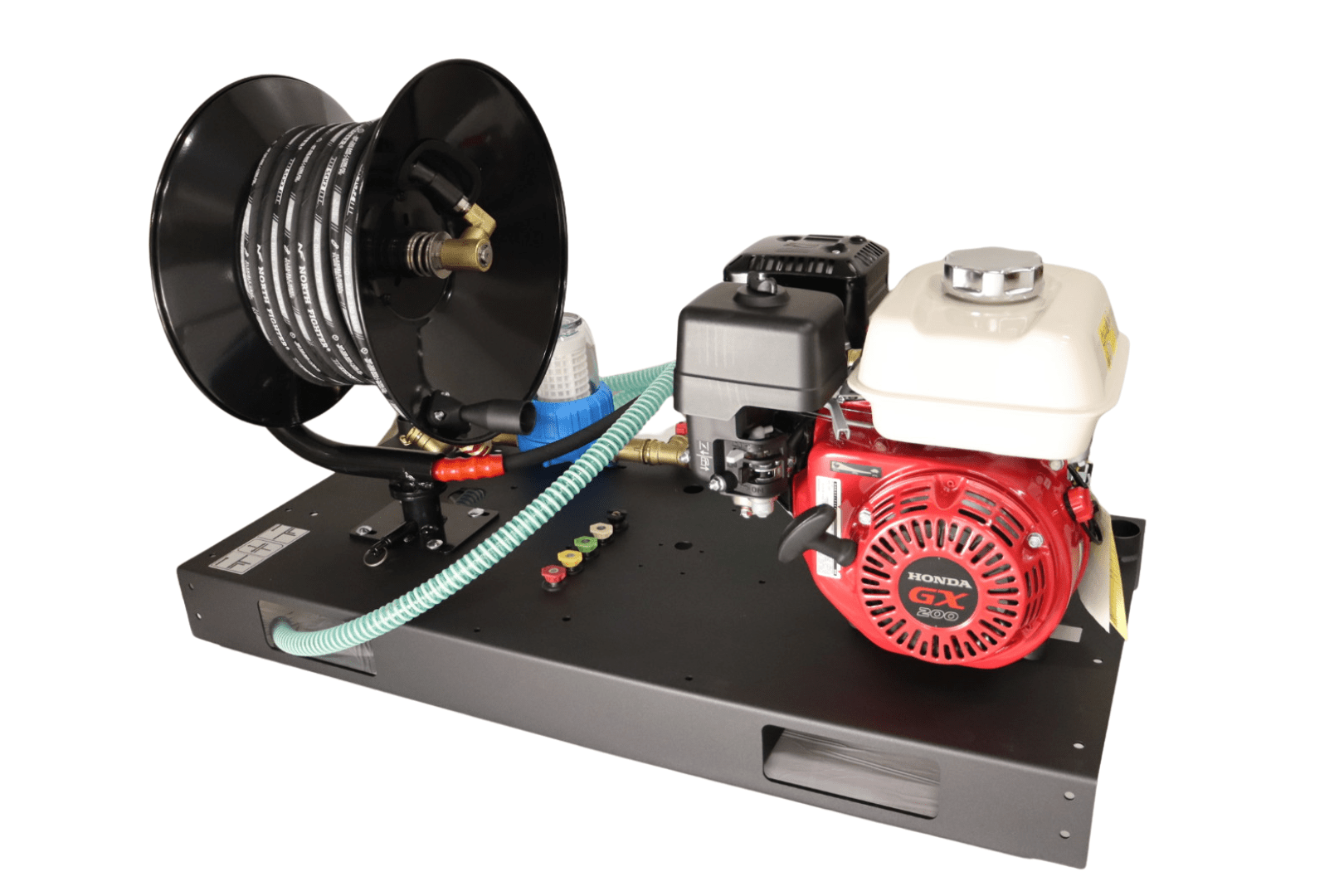

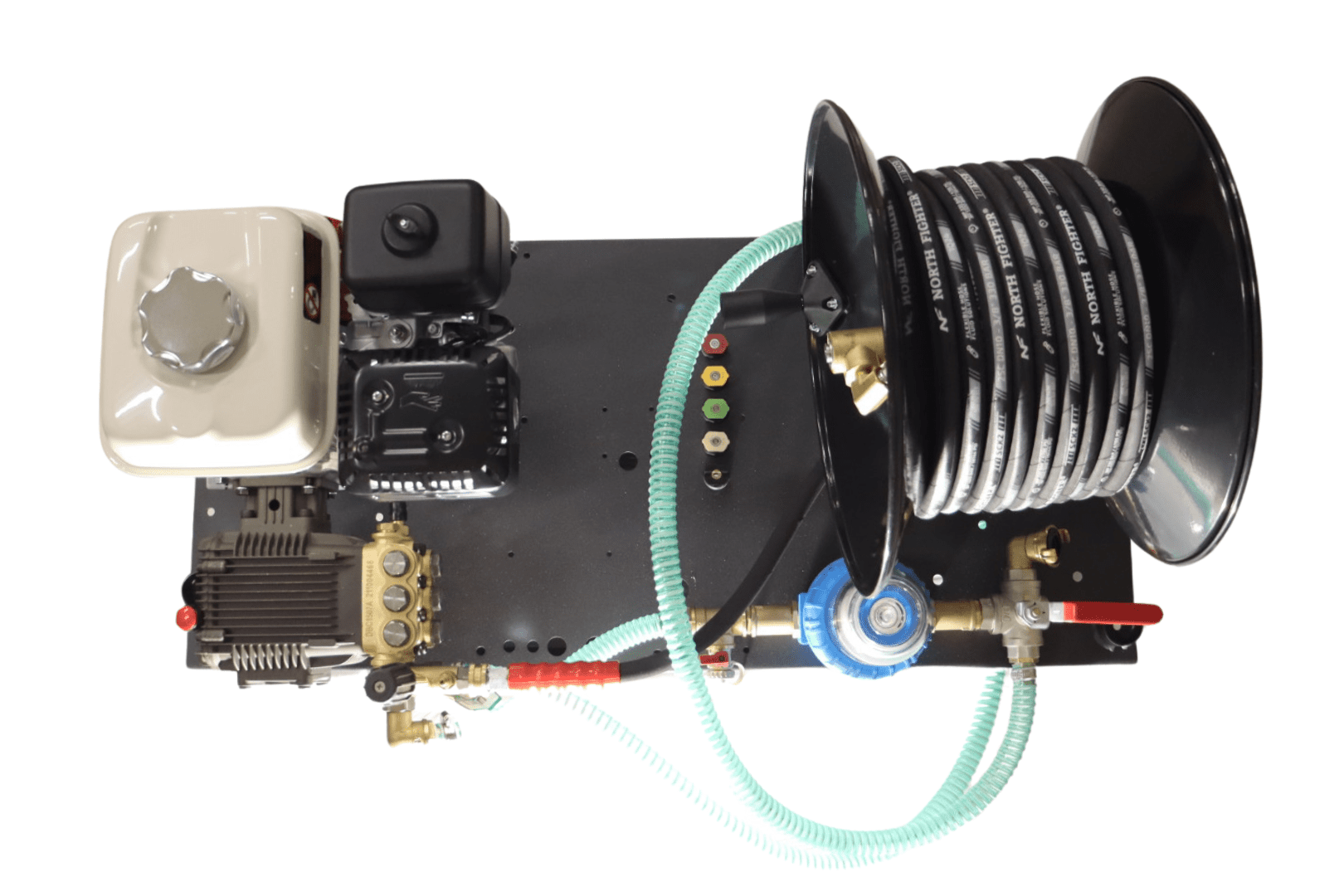

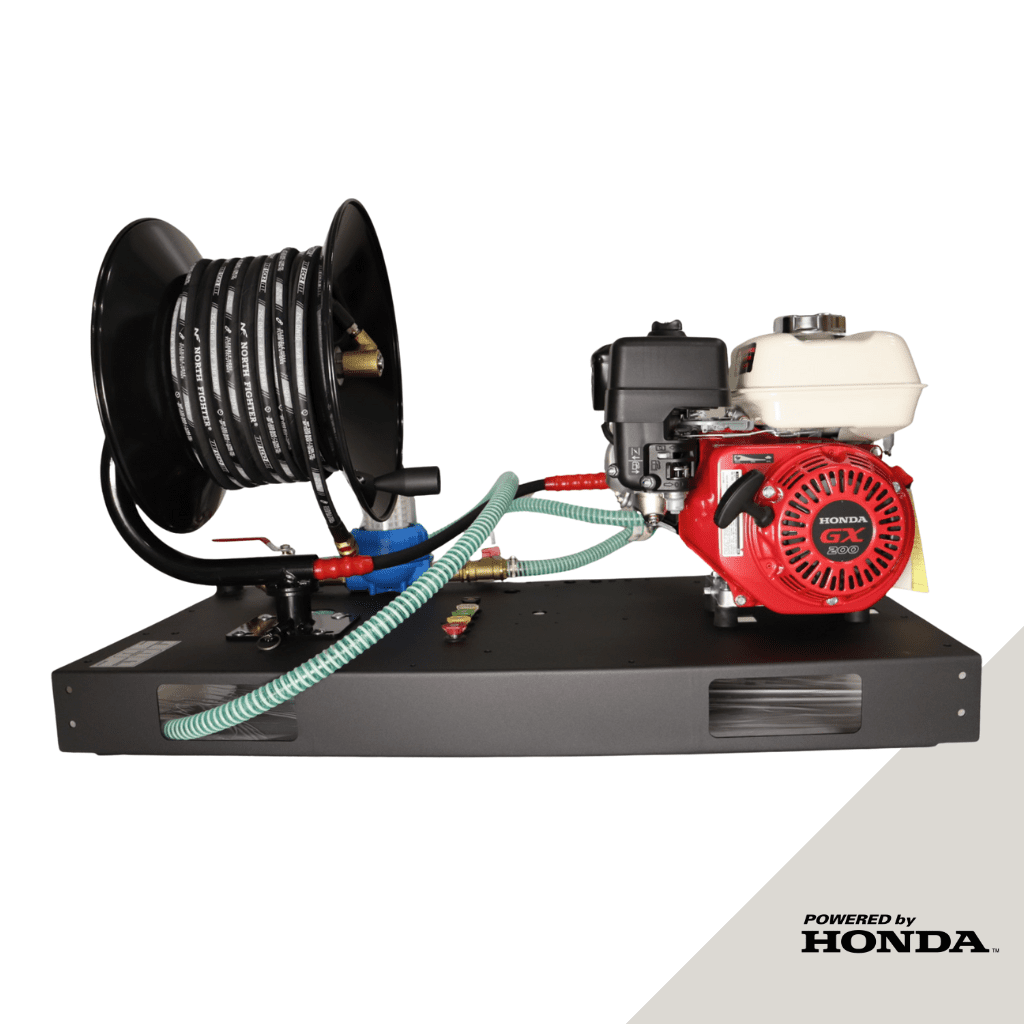

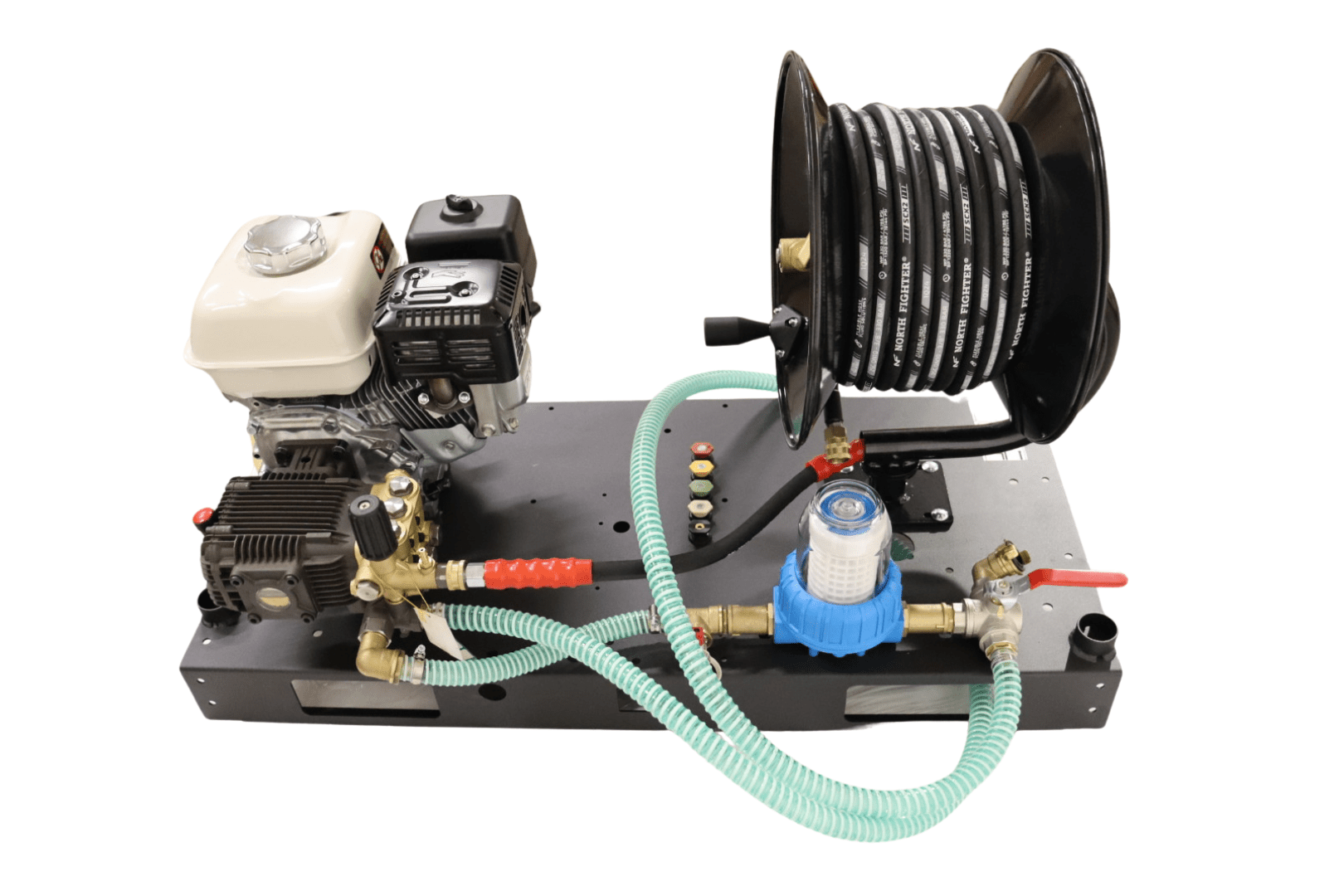

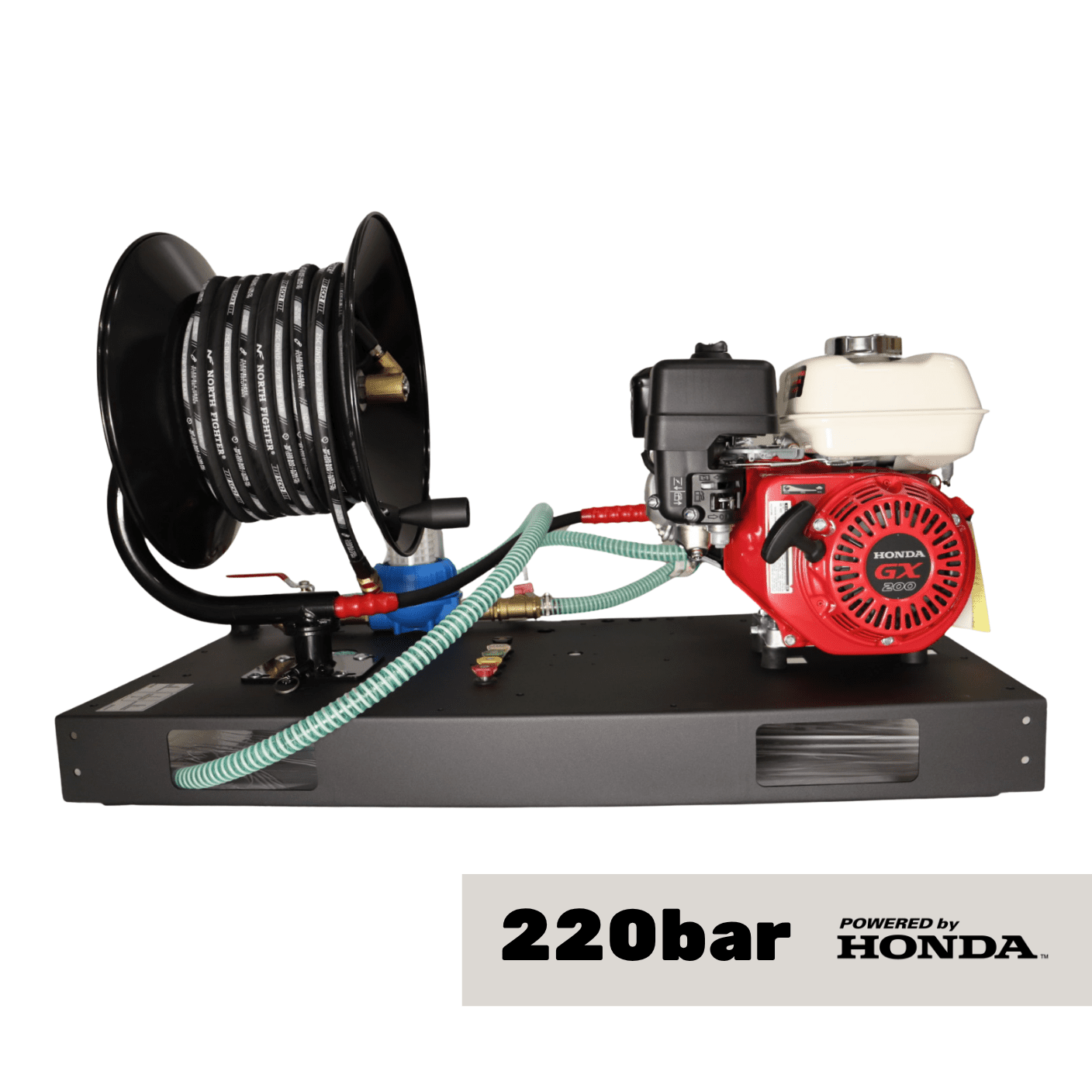

Motor Platform with Hose Reel GE1065HD, Honda GX200, 3200psi/ 220bar

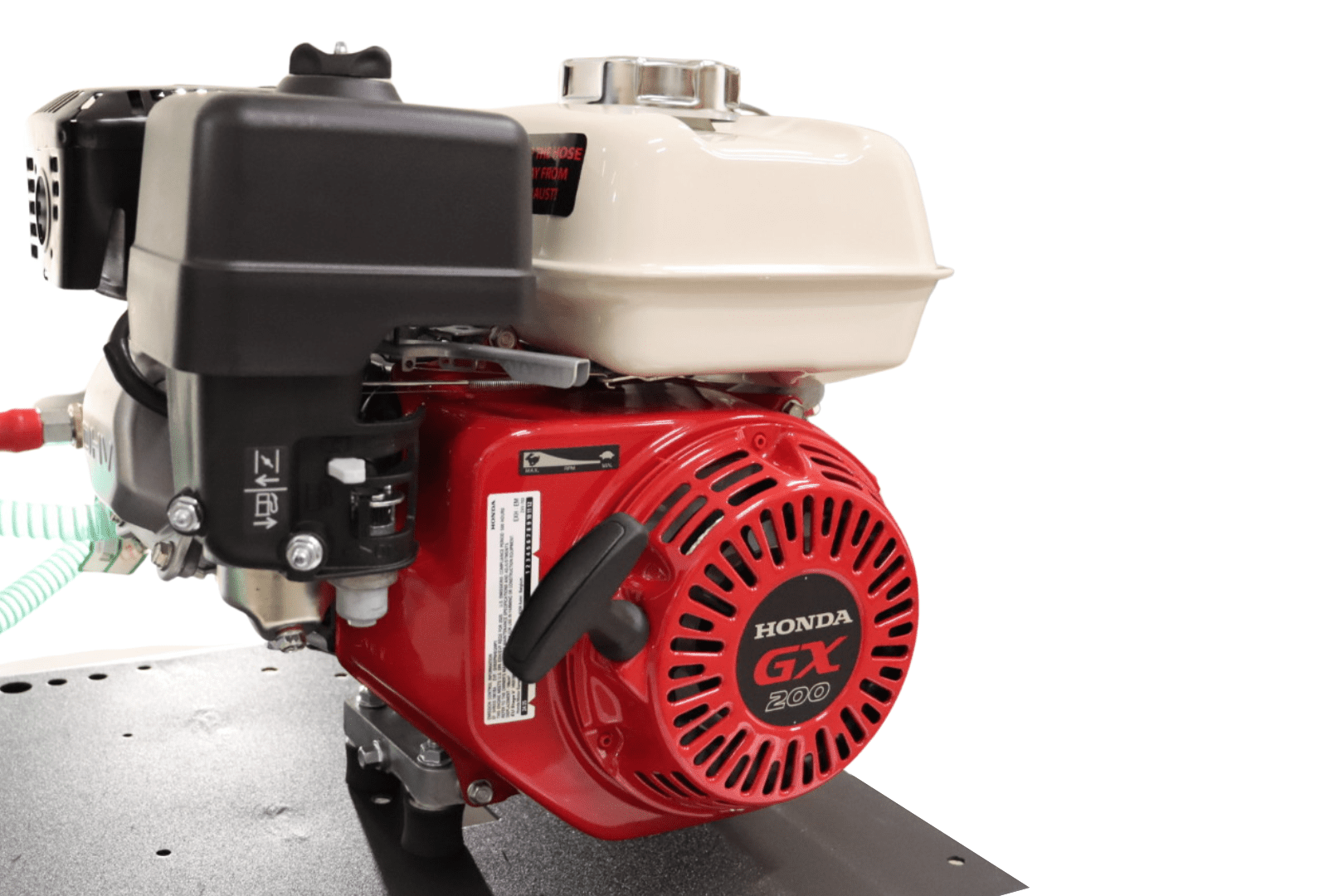

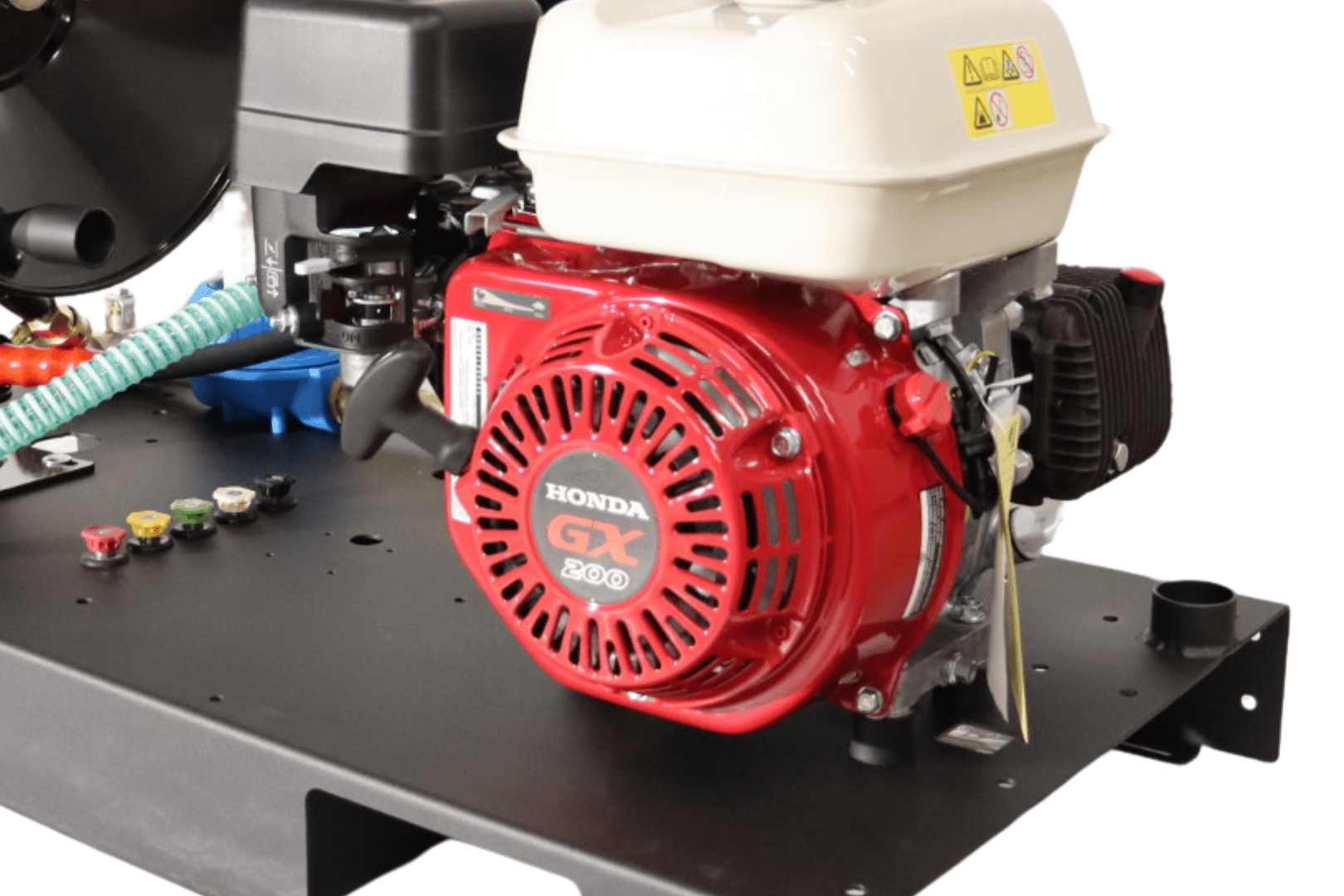

The GE1065HD motor platform is powered by the trusted Honda GX200 engine, known for its reliability, smooth running, and long service life. With a horizontal shaft, OHV construction, mechanical choke, throttle control, and a low-oil shutdown system, the engine ensures dependable operation in professional as well as demanding hobby environments. Starting is handled manually (recoil), making the unit fully independent of external power sources.

KEY FEATURES:

  • Reliable Honda GX200 engine (208 cm³)

  • 3WZ1507A radial brass pump for dependable long-term performance

  • Max pressure 3200 psi / 220 bar, flow rate 14 l/min

  • Manual recoil start

  • 20 m high-pressure hose + full nozzle set (0°–Soap + O32)

  • Adjustable pressure between 80–220 bar

  • Quick-connect QC fittings for fast accessory changes

 2,699.00

In stock
SKU 8588009225874
In stock
Add to wishlist Add to compare

Description

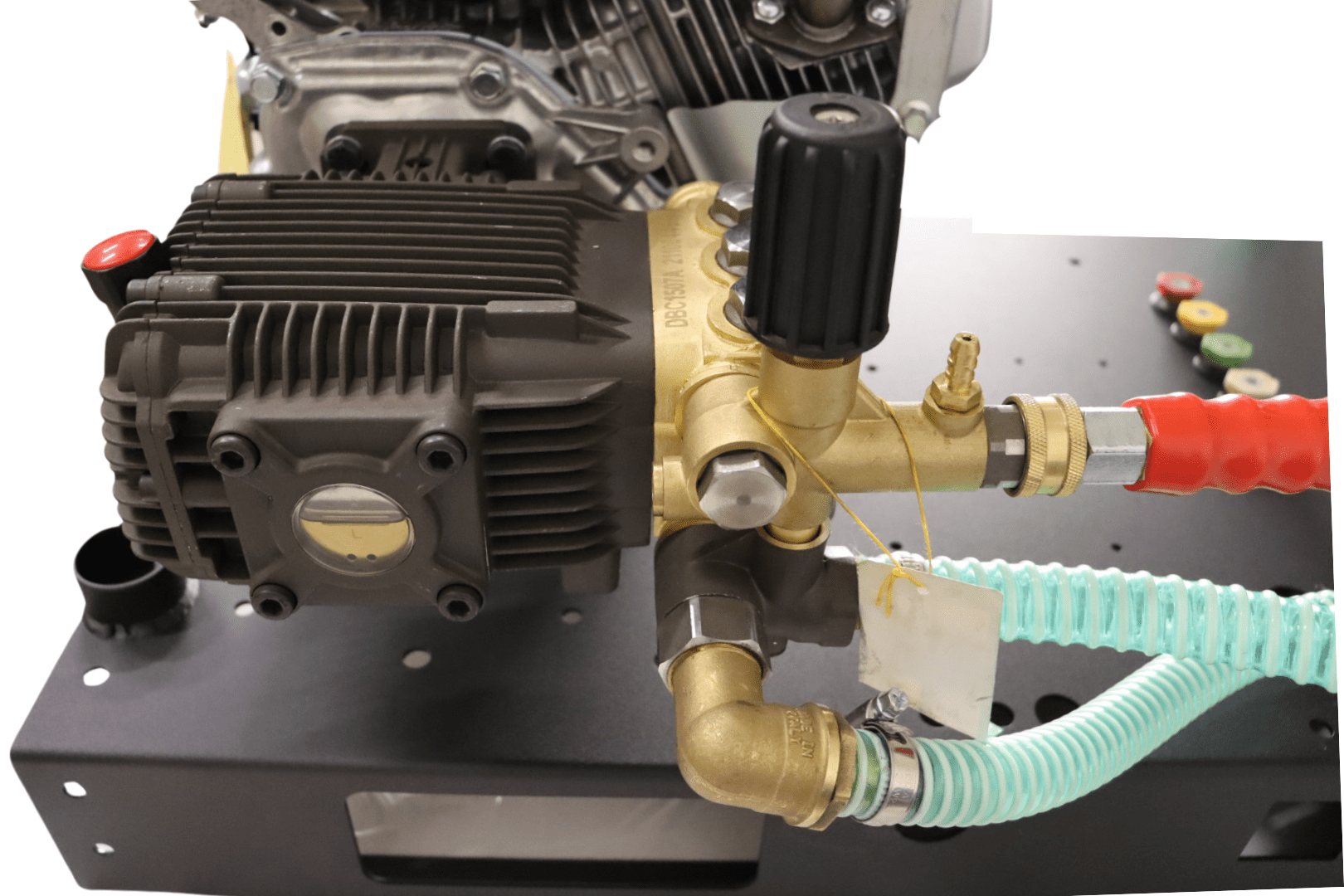

This model is equipped with the 3WZ1507A radial brass pump, providing up to 3800 psi / 265 bar working pressure, 14 l/min water flow, and compatibility with water temperatures up to 40 °C. The pump features a self-priming function and a pressure regulator adjustable between 80–220 bar, giving the operator precise control over performance across different cleaning applications.

The platform includes a 20 m high-pressure hose (3/8″, 9.5 mm), an ergonomic spray gun, and a 40 cm lance. A complete nozzle kit is supplied (0°, 15°, 25°, 40°, Soap + O32), allowing flexible adaptation to various cleaning tasks. All fittings use QC quick-connect technology to make accessory changes quick and effortless.

The GE1065HD is a compact yet highly robust base for pressure-washing systems that require durability, consistency, and ease of operation. The proven Honda GX200 (208 cm³) engine guarantees smooth performance and low maintenance, making this platform an excellent solution for both commercial and heavy-duty private use.

Specification

Weight 75 kg
Dimensions 101 × 55 × 55 cm
Max. output pressure

3200psi/ 220bar

Max. water flow (L/min)

14

Engine Producer

Honda GX200

Volume (cm3)

208

Type Engine

OHV

Shaft orientation

Horizontal

Low oil level security system

Yes

Fuel tank volume (L)

3,1

Fuel valve

Yes

Engine oil filling volume (L)

0,6

Throttle regulation

Yes

Choke

Yes / Mechanical

Start up method

Manually / Recoil

PUMP Model

3WZ1507A

Pump Type

Radial

Pump head material

Brass

Max. water temperature °C

40

Self priming function

Yes

Pressure regulator

Yes, 80 – 220 bar

HOSE Lenght (m)

20

Diameter (in/mm)

3/8" / 9,5

Max. working pressure (psi/bar)

3800 / 265

Connection type

QC 3/8

Nozzles included

0°,15°,25°,40°,Soap / 032

Gun type

Ergonomic

Gun to Lance connection

M22

Gun to Hose connection

3/8" QC

Lance lenght (cm)

40

Nozzle connection

1/4" QC
