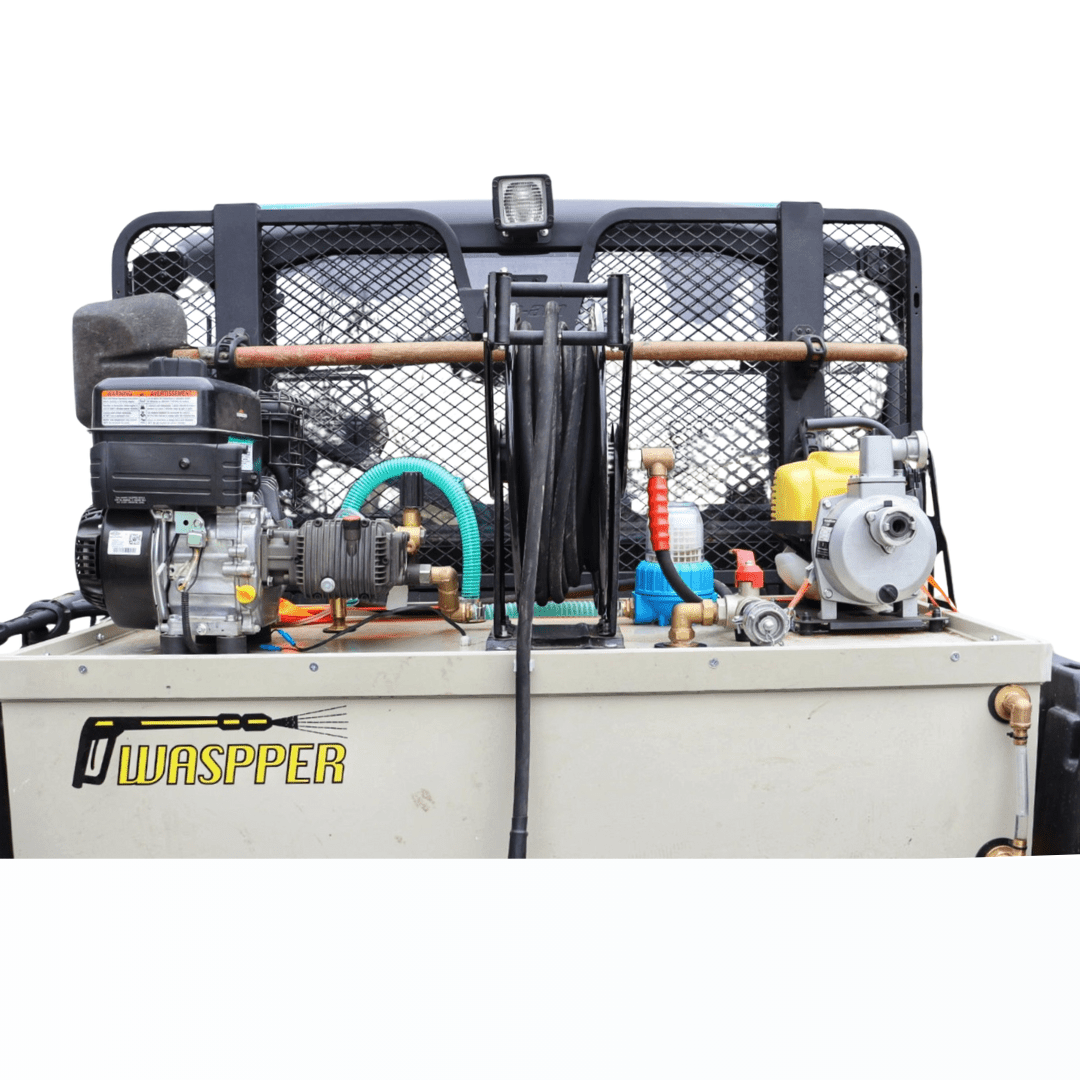

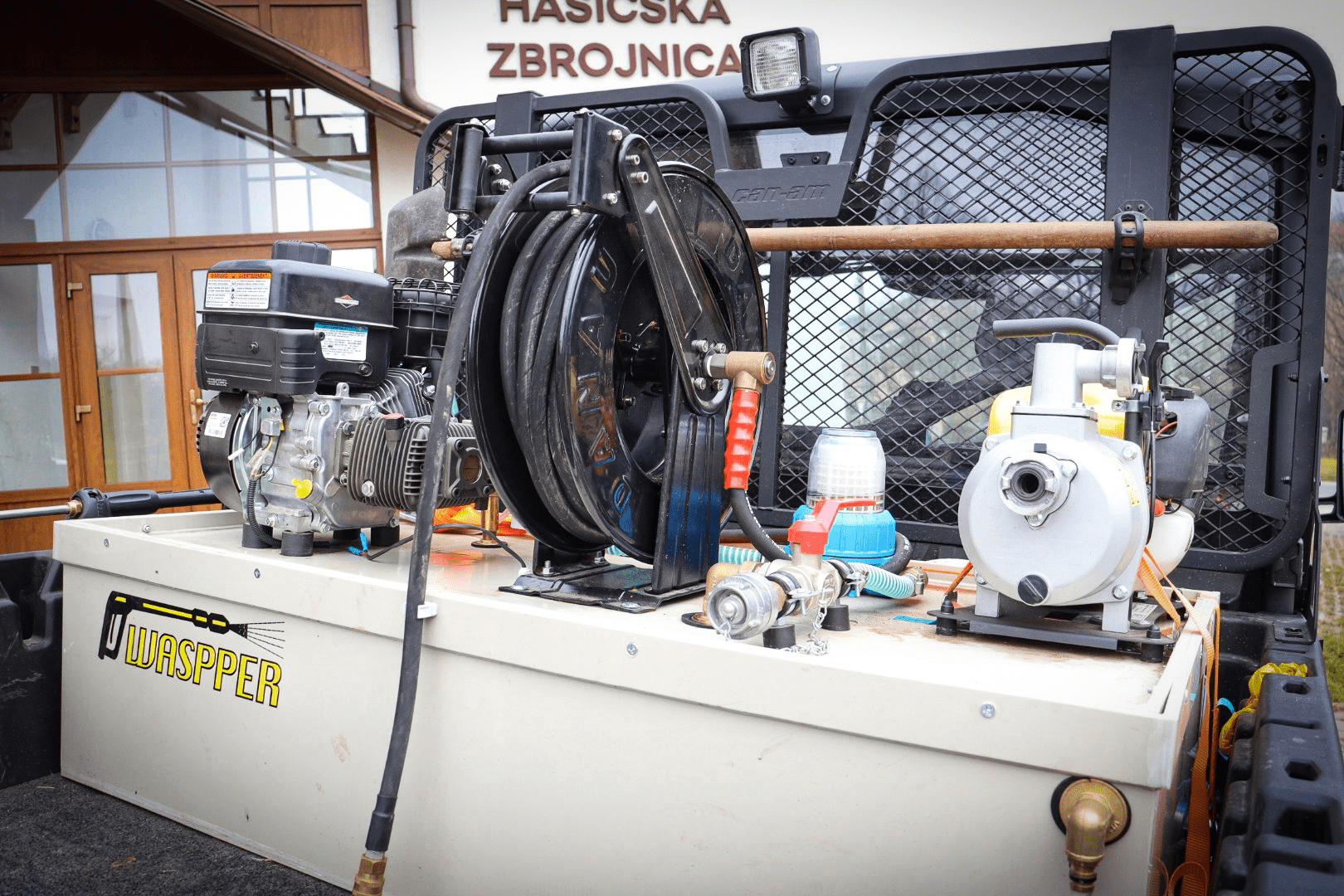

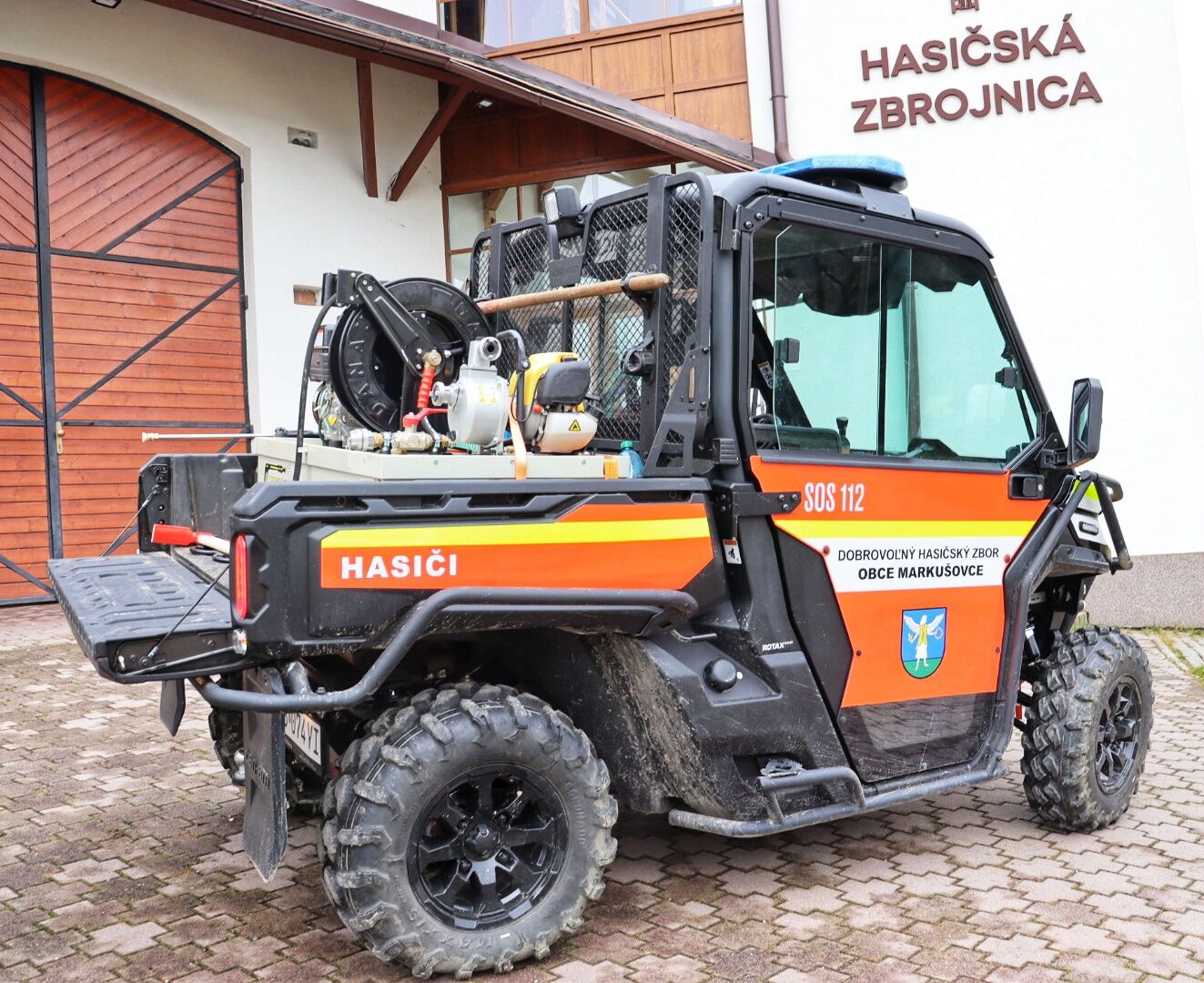

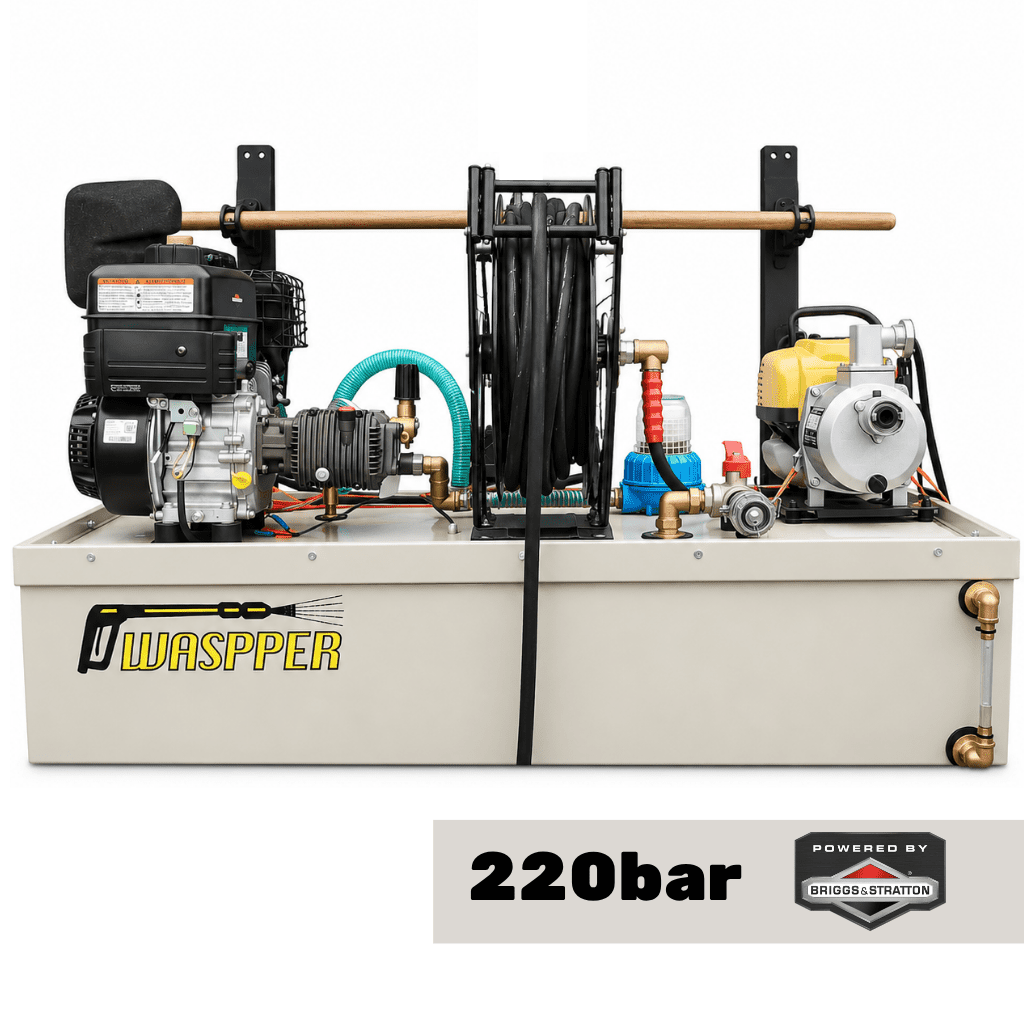

Motor Platform with Hose Reel GE1065HD1 – ATV spec. 3200psi/ 220bar

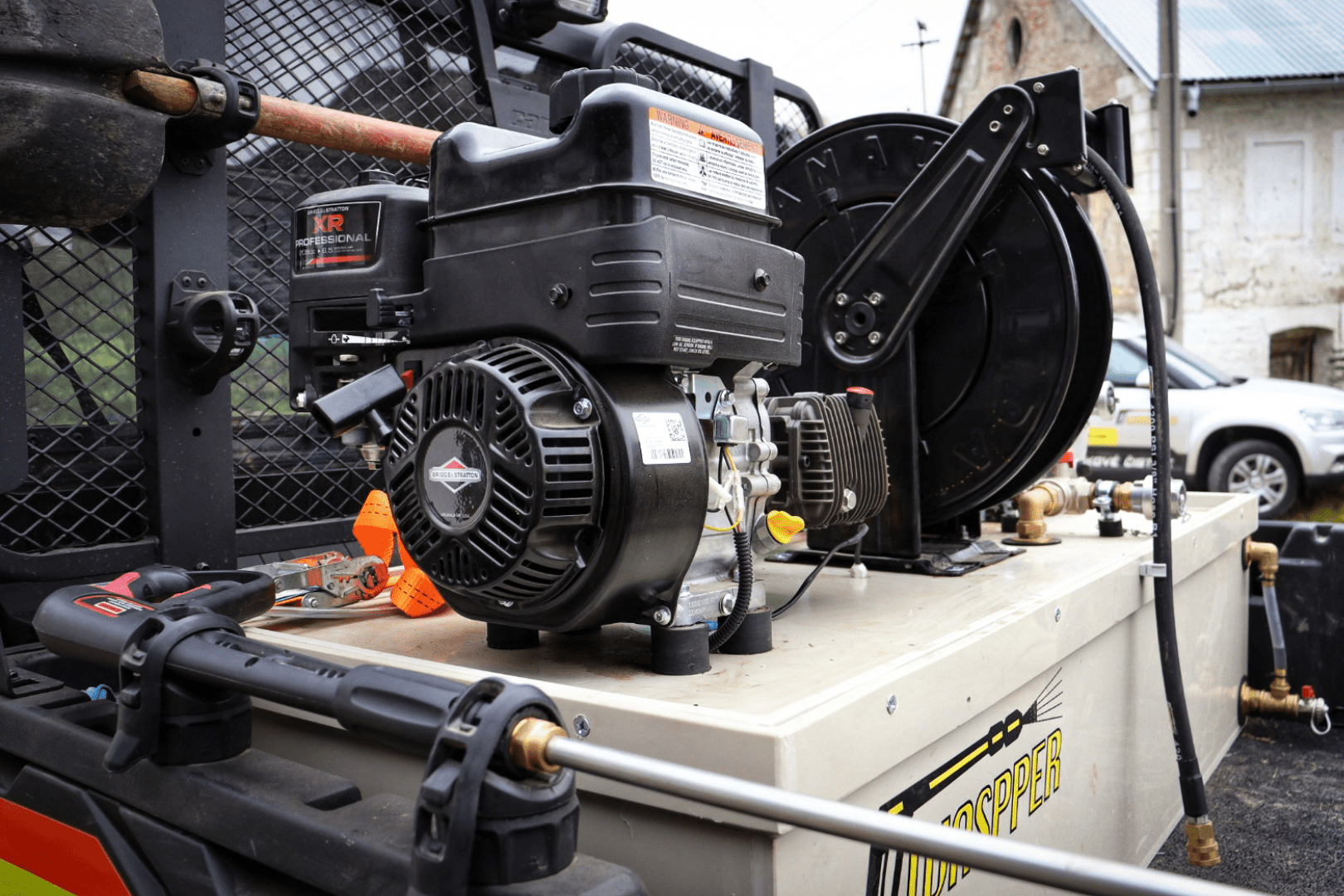

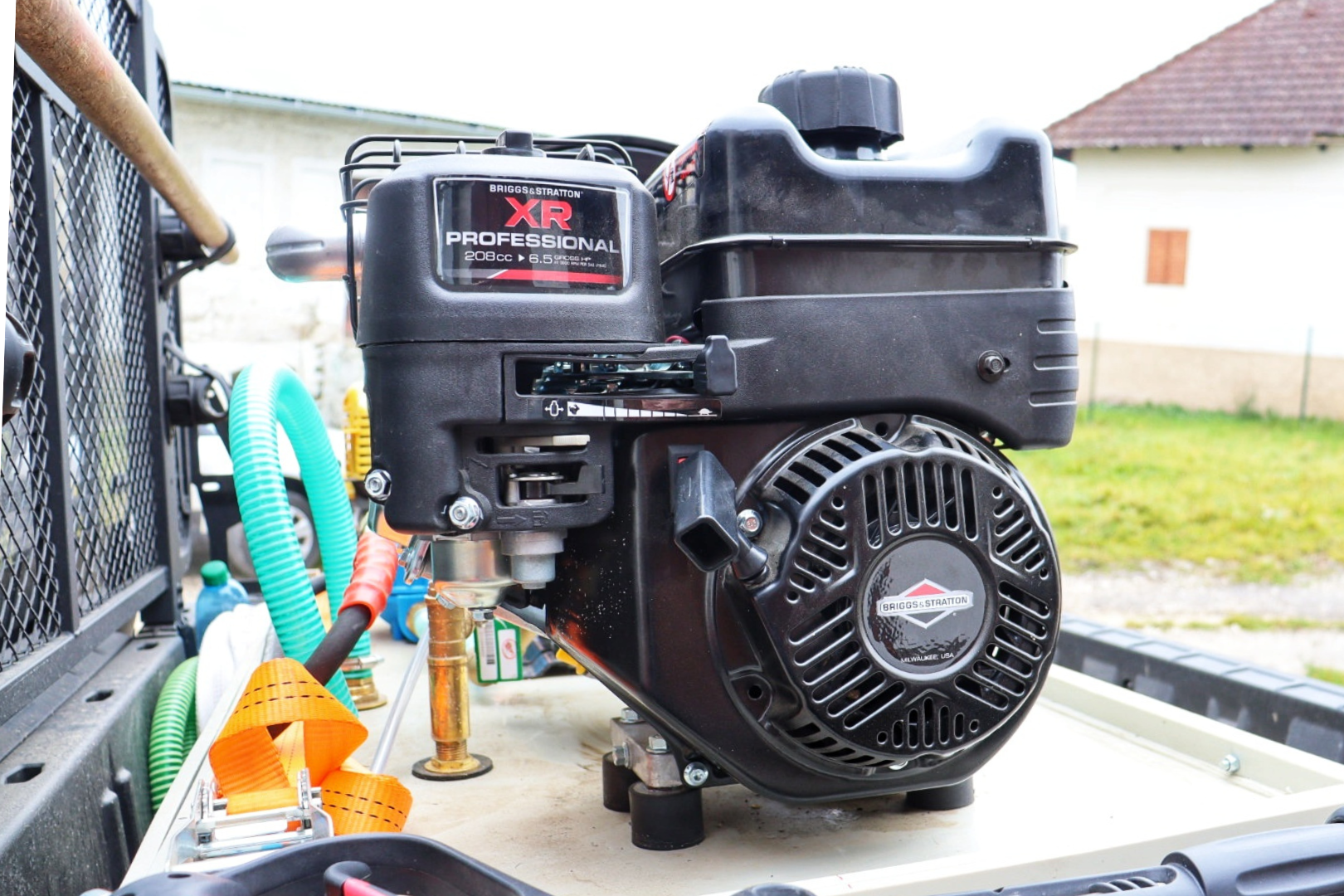

This compact motor platform is powered by the reliable Briggs & Stratton XR950 engine, offering stable performance for light-to-medium professional applications. The engine features a horizontal shaft, OHV design, mechanical choke, throttle control, and a built-in low-oil shutdown system for increased durability. Starting is handled manually (recoil), ensuring dependable operation even without access to electricity.

KEY FEATURES:

  • Briggs & Stratton XR950 engine (300 cm³)

  • Radial brass pump 3WZ1507A for long-lasting performance

  • Max pressure 3200 psi / 220 bar, flow rate 14 l/min

  • Manual recoil start

  • Complete set of nozzles + 20 m high-pressure hose

  • Pressure regulation range 80–220 bar

  • Quick and simple QC accessory connections

 3,449.00

In stock
SKU 8588009225836
In stock
Add to wishlist Add to compare

Description

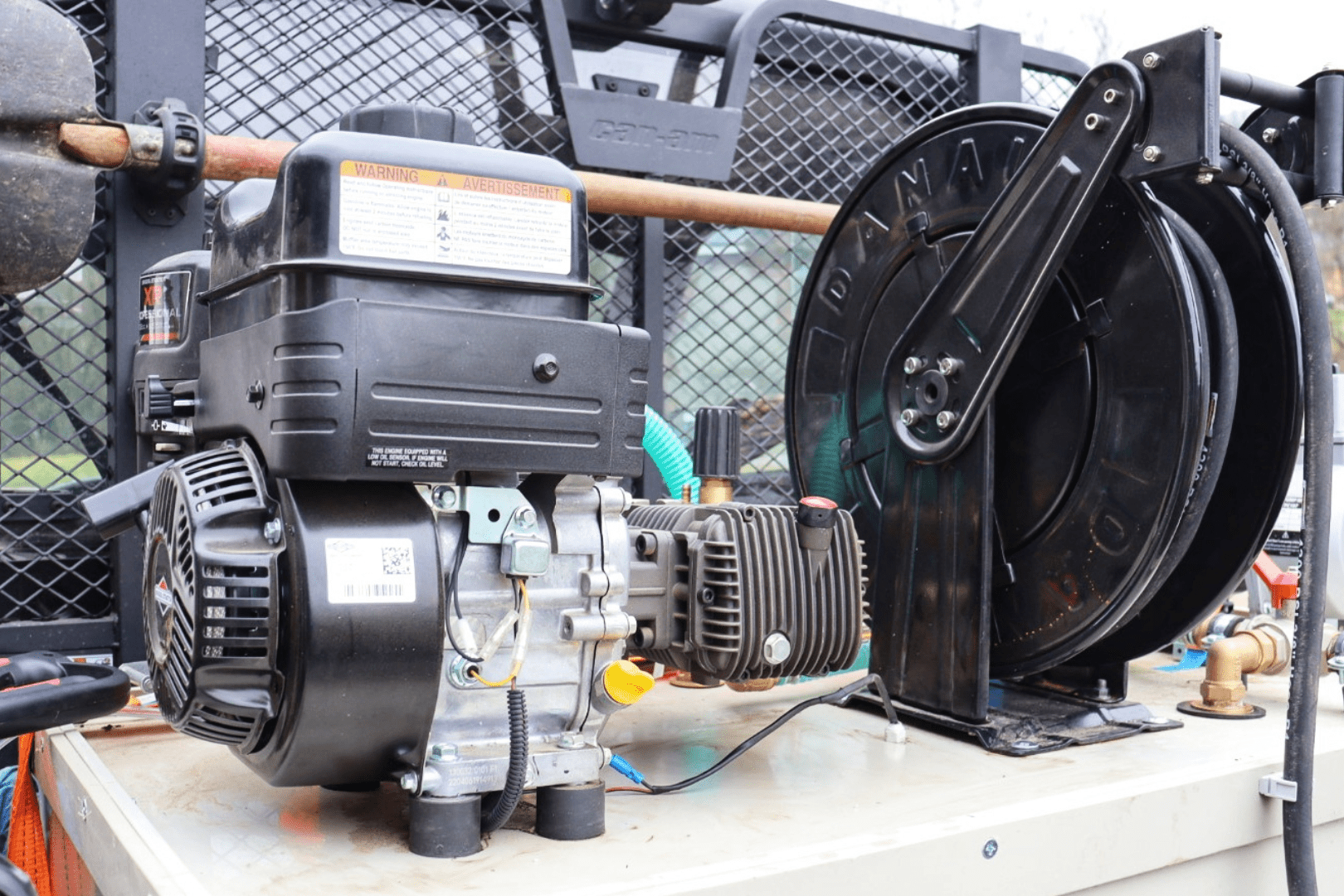

At the heart of the platform is the 3WZ1507A radial brass pump, delivering up to 3800 psi / 265 bar working pressure, a water flow of 14 l/min, and compatibility with water temperatures up to 40 °C. The pump includes a self-priming function and an adjustable pressure regulator within the range of 80–220 bar, allowing precise tuning for various cleaning tasks.

The equipment package includes a 20 m (3/8″) high-pressure hose, an ergonomic spray gun, and a 40 cm lance, complemented by a full set of nozzles (0°, 15°, 25°, 40°, Soap + O31). All connections are designed with QC quick-connect fittings, making accessory changes fast and user-friendly.

The GE1065BD platform offers a solid and efficient foundation for pressure-washing systems that require reliability, ease of use, and consistent output. With its 300 cm³ B&S engine and durable brass pump, it is well-suited for both commercial environments and demanding household applications.

Specification

Weight 80 kg
Dimensions 130 × 60 × 85 cm
Max. output pressure

3200psi/ 220bar

Max. water flow (L/min)

14

Engine Producer

Briggs&Stratton XR950

Volume (cm3)

300

Type Engine

OHV

Shaft orientation

Horizontal

Low oil level security system

Yes

Fuel tank volume (L)

3,1

Fuel valve

Yes

Engine oil filling volume (L)

0,6

Throttle regulation

Yes

Choke

Yes / Mechanical

Start up method

Manually / Recoil

PUMP Model

3WZ1507A

Pump Type

Radial

Pump head material

Brass

Max. water temperature °C

40

Self priming function

Yes

Pressure regulator

Yes, 80 – 220 bar

HOSE Lenght (m)

20

Diameter (in/mm)

3/8" / 9,5

Max. working pressure (psi/bar)

3800 / 265

Connection type

QC 3/8

Nozzles included

0°,15°,25°,40°,Soap / 032

Gun type

Ergonomic

Gun to Lance connection

M22

Gun to Hose connection

3/8" QC

Lance lenght (cm)

40

Nozzle connection

1/4" QC
